Don-Jo SB-12 Slide Bolt 12" x 5/8" Solid Brass with Rim and Mortise Strikes

Don-Jo SB-12 Slide Bolt 12" x 5/8" Solid Brass with Rim and Mortise Strikes

(No reviews yet) Write a Review

Model: SB-12-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$40.56
$33.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

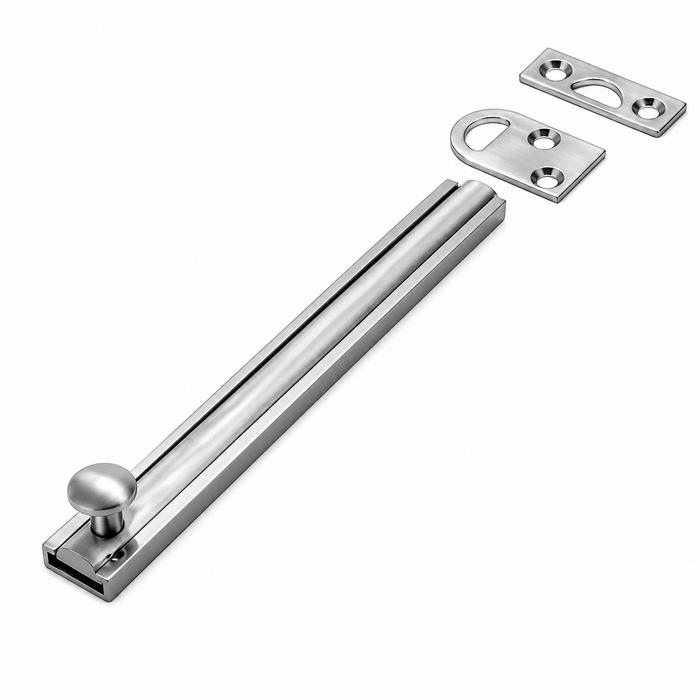

Don-Jo SB-12 Slide Bolt 12" x 5/8" Solid Brass with Rim and Mortise Strikes

The Don-Jo SB-12 is a heavy-duty solid brass slide bolt measuring 12" in length and 5/8" in width, engineered for reliable door security in commercial applications. Furnished with both rim and mortise strikes, this surface bolt delivers versatile installation options to suit a wide range of door configurations. Conforming to ANSI L04151, the SB-12 is available in six finishes—605, 613, 619, 620, 625, and 626—to coordinate with existing door hardware.

Key Features

  • Generous Dimensions: Measures 12" in length and 5/8" in width, providing a substantial bolt throw for secure door retention in commercial settings.
  • Solid Brass Construction: Crafted from solid brass for exceptional durability, corrosion resistance, and a premium appearance suited to commercial door hardware applications.
  • Dual Strike Compatibility: Furnished with both rim and mortise strikes, offering flexible installation options for a variety of door and frame configurations.
  • Multiple Finish Options: Available in finishes 605, 613, 619, 620, 625, and 626 to match or complement existing architectural hardware selections.
  • ANSI Compliance: Meets ANSI L04151 standards, ensuring consistent quality and compatibility with commercial door hardware specifications.
  • Commercial-Grade Performance: Designed and rated for commercial use, making it appropriate for high-demand environments requiring dependable door security hardware.
  • Convenient Shelf Pack: Sold in shelf packs of 10, simplifying inventory management for contractors, distributors, and facility managers.

Certifications & Compliance

  • ANSI L04151 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Product Subgroup: Surface Bolts
  • Product Type: Slide Bolts
  • Subcategory: Flush Bolts
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo SB-12?

Don-Jo SB-12 slide bolts are built from solid brass and conform to ANSI L04151, delivering the consistent quality and dimensional precision that commercial door hardware applications demand. Furnished with both rim and mortise strikes and available in six finishes, the SB-12 provides the versatility and reliability that contractors and facility managers depend on for long-term performance in high-use environments.

Manufacturer Resources

DON-JO Bolts & Latches

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Surface Bolts
Product Type:
Slide Bolts
Subcategory:
Flush Bolts
Commercial/Residential:
Commercial
ANSI/BHMA:
L04151
Product Model:
SB 12
Product Category:
Door Trim and Accessories
Product Substrate:
Brass
Department:
Door Hardware

Don-Jo SB-12-626 – Frequently Asked Questions

1) Will the Don-Jo SB-12 slide bolt work on a door with no frame prep, or do I have to mortise the jamb?
Either way works. The SB-12 comes with both a rim strike and a mortise strike, so you can surface-mount the strike on the frame face when you don't want to cut the jamb, or mortise it in when you want the flush look. The bolt body itself is surface applied to the door, so the door needs no prep beyond screw holes.
2) Is the Don-Jo SB-12 a flush bolt or a surface bolt? I need to secure the inactive leaf of a pair of doors.
It is a surface-applied slide bolt, not a flush bolt mortised into the door edge. It screws onto the face of the inactive leaf and throws into a strike at the head or the threshold. If your spec calls for hardware concealed in the door edge, this is the wrong style and you want a true flush bolt instead.
3) Does the Don-Jo SB-12 surface bolt meet an ANSI spec I can put on a submittal?
It conforms to ANSI L04151, which is the ANSI/BHMA function designation for a surface bolt. That is the number to cite on a hardware schedule or submittal when the spec calls out a surface bolt by function rather than by manufacturer.
4) Can I use a Don-Jo SB-12 slide bolt on a fire rated door?
No. A surface slide bolt is manual auxiliary hardware, and on a fire rated pair the inactive leaf has to be secured by automatic or self-latching flush bolts so the leaf latches without anyone touching it. Use the SB-12 on non-rated openings: storage rooms, gates, shop doors, mechanical rooms, and inactive leaves on doors that carry no label.
5) What size is the Don-Jo SB-12 slide bolt?
The SB-12 measures 12 inches by 5/8 inch. That 12 inch length is the overall bolt body, so allow a clear 12 inch run on the face of the door in line with the strike, clear of hinges, closer arms and astragals. The 5/8 inch width keeps it narrow enough to sit on most stiles and rails.
6) Is a brass slide bolt going to hold up in an exterior or wash-down opening?
The SB-12 is solid brass, not plated steel, so it won't rust through in damp or coastal service and it holds up to frequent cleaning. Brass is also softer than steel, so for a high-abuse exterior opening the finish will wear at the thumb turn before the bolt does. For interior commercial doors it is the durable choice.
7) What finishes does the Don-Jo SB-12 slide bolt come in, and which one matches my existing lever hardware?
Five finishes are orderable: 605 polished brass, 613 oil rubbed bronze, 619 satin nickel, 625 polished chrome, and 626 satin chrome. Match the BHMA number on your existing hardware, not the name. If your levers are 626 satin chrome (the most common commercial finish), order the 626 bolt and it will read the same across the opening.
8) Is the Don-Jo SB-12 handed? Do I need to order left or right?
Handing doesn't apply. The bolt is symmetrical and mounts vertically or horizontally in either direction, so one part number covers both leaves of a pair and both swings. Pick the finish and you're done.
9) Do I need anything besides the SB-12 to secure an inactive door leaf?
For a top-and-bottom application you need two bolts, one at the head and one at the threshold, so order in pairs per leaf. The strikes are already in the box, both rim and mortise, so the only extra items are fasteners suited to your door and frame material and, at the threshold, a floor strike location that clears carpet or a saddle.
10) Is the Don-Jo SB-12 rated for commercial use or is it a residential-grade bolt?
Commercial. It is specified as commercial grade solid brass and carries the ANSI L04151 function, which is why it shows up on schedules for offices, schools, healthcare, retail and municipal buildings rather than in the residential barrel bolt aisle.
