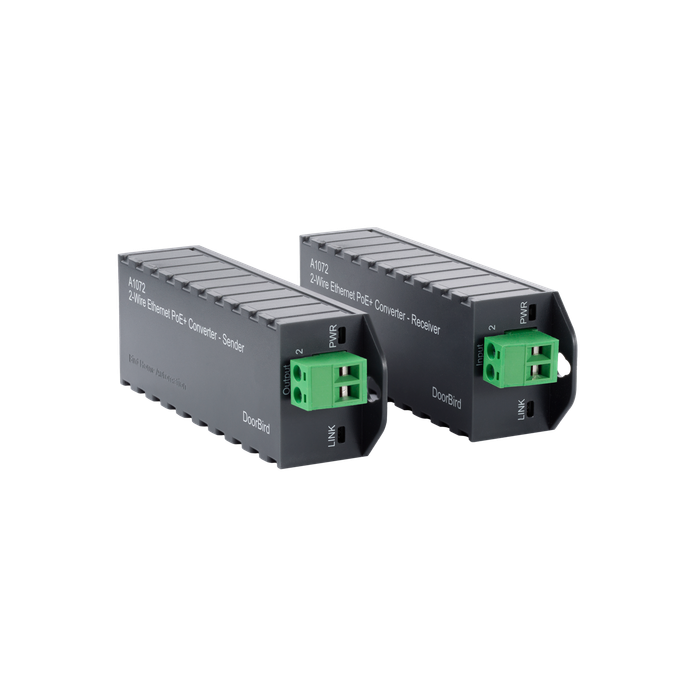

DoorBird 423860360 A1072 2-Wire Ethernet PoE Converter for Long-Range IP Video Door Station Installations

DoorBird 423860360 A1072 2-Wire Ethernet PoE Converter for Long-Range IP Video Door Station Installations

(No reviews yet) Write a Review

Model: 423860360
Selected Converter is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$524.40
$506.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

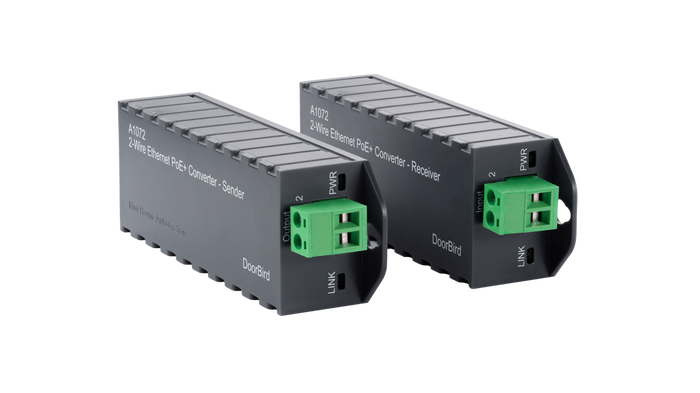

DoorBird A1072 2-Wire Ethernet PoE Converter for Long-Range IP Video Door Station Installations

The DoorBird A1072 2-Wire Ethernet PoE Converter transmits both network data (Ethernet) and Power over Ethernet (PoE) over a single two-wire cable. With a range of 80 meters / 262 feet over unshielded two-wire cable and speeds up to 60 Mbit/s at maximum transmission range, it allows existing buildings wired with standard two-wire bell wire to be brought onto the network without running new cable. Compatible with all DoorBird IP video door stations, the compact 33 x 25 x 88 mm (H x W x D) / 1.30 x 0.98 x 3.46 in housing is built for fast, straightforward field installation.

Key Features

  • Compact Dimensions: 33 x 25 x 88 mm (H x W x D) / 1.30 x 0.98 x 3.46 in housing for discreet field installation.
  • Long Transmission Range: Up to 80 meters / 262 feet over unshielded two-wire cable, ideal for retrofitting existing bell-wire installations.
  • PoE Power Delivery: Supports 802.3af/at Mode-A and PoE+ standards, delivering up to 30 W over the same two-wire run as network data.
  • Data Throughput: Up to 60 Mbit/s at maximum transmission range for reliable IP video and access control communication.
  • Two-Wire Simplicity: Carries both Ethernet data and PoE power simultaneously over existing two-wire cabling, eliminating new network cable runs.
  • Rugged Housing: Compact, robust construction weighing 140 g, rated for operating temperatures from -25 to 55°C / -13 to 131°F.
  • Universal DoorBird Compatibility: Works with all DoorBird IP video door stations for flexible system integration.
  • Required Accessories: 2 x network cable and an IEEE 802.3af PoE Switch or PoE Injector (sold separately, not included).

Technical Specifications

  • Dimensions: 33 x 25 x 88 mm (H x W x D) / 1.30 x 0.98 x 3.46 in (H x W x D)
  • Power Supply: PoE Switch or PoE Injector (IEEE 802.3af), not included
  • Operating Temperature: -25 to 55°C / -13 to 131°F
  • Speed: Up to 60 Mbit/s at maximum transmission range
  • PoE Standard: 802.3af/at Mode-A and PoE+, up to 30 W
  • Range: 80 meters / 262 feet with unshielded two-wire cable
  • Weight: 140 g

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings
  • Retrofit Installations with Existing Two-Wire Cabling

Why DoorBird A1072?

The A1072 delivers professional-grade performance in a compact, rugged housing rated from -25 to 55°C / -13 to 131°F, with PoE+ support up to 30 W and transmission speeds up to 60 Mbit/s over long two-wire runs. It simplifies network upgrades in buildings with existing two-wire cabling, extending DoorBird IP video door station connectivity without costly rewiring.

Product Specs

Catergory:
Access Control
Subcategory:
Parts and Accessories
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Type:
Converter
Series:
A1072
Power Supply:
PoE Switch or PoE Injector (IEEE 802.3af), not included
Range:
80 meters / 262 feet
Speed:
Up to 60 Mbit/s at Maximum Transmission Range
Product Dimension:
1.30 x 0.98 x 3.46 in (H x W x D)
Department:
Door Hardware

DoorBird 423860360 – Frequently Asked Questions

1) Can I get a DoorBird video door station onto the network using the existing two-wire bell wire without pulling new Cat cable?
That's exactly what the DoorBird A1072 2-Wire Ethernet PoE Converter does. It carries both Ethernet data and PoE power over a single existing two-wire run, so a building already wired with standard bell wire can be brought onto the network without a new cable pull. Range is 80 meters / 262 feet over unshielded two-wire cable, and throughput runs up to 60 Mbit/s at that maximum distance. It's a pair of units, one at the door station end and one at the network end.
2) What else do I need to order with the DoorBird A1072 converter to make it work?
Power isn't included. The A1072 needs an IEEE 802.3af PoE switch or PoE injector feeding it, plus two network cables for the patch connections at each end. DoorBird names its own Gigabit PoE Injector, the D-Link DGS-1008P, and the TP-Link TL-PoE150S as suitable sources. The two-wire run between the units is your existing cable.
3) Will the A1072 pass enough PoE power to run the door station itself, or do I need separate power at the door?
The converter passes PoE through to the far end, supporting 802.3af/at Mode-A and PoE+ at up to 30 W. Feed the network end from an 802.3af PoE switch or injector and the door station is powered over the same two-wire run that carries its data. No separate power supply at the door.
4) Does the DoorBird A1072 converter work with every DoorBird door station or only certain models?
All of them. The A1072 is specified as compatible with all DoorBird IP video door stations, so the model on the wall doesn't change the converter you order. The single orderable configuration is MPN YBLED60/PCT.
5) Can the A1072 converter be mounted outdoors or in an unheated garage or parking structure?
Operating range is -25 to 55 C / -13 to 131 F, which covers an unheated garage, a parking structure, or a cold vestibule in most of North America. It's a compact unit at 1.30 x 0.98 x 3.46 inches, so it fits inside a door station backbox, a junction box, or a small enclosure. Put it in a protected spot rather than fully exposed to weather.
6) Is 60 Mbit/s enough bandwidth for an IP video intercom over two-wire?
For a DoorBird door station, yes. Up to 60 Mbit/s at the full 262 foot range covers the video stream plus the access control traffic the station generates. That figure is the worst case at maximum distance, so shorter runs are not tighter. This is a transport for one door station's traffic, not a general building uplink.
7) We're replacing analog intercoms across a multi-tenant building. Will the A1072 let us reuse the riser wiring?
If the existing riser is standard two-wire and each door station run is within 80 meters / 262 feet, the A1072 pairs let you keep that cable and put DoorBird IP stations on it. Each converted run needs a pair of units and a PoE source at the head end. It's the same approach for office buildings, schools, healthcare, retail, and government facilities where rewiring the risers isn't practical.
8) Does the two-wire cable between the A1072 units have to be shielded?
No. The 80 meter / 262 foot rating is stated for unshielded two-wire cable, which is what ordinary bell wire is. Shielding isn't a condition of hitting the rated distance.
