Doorking Inc PC Telephone Entry & Access Control

Doorking Inc PC Telephone Entry & Access Control

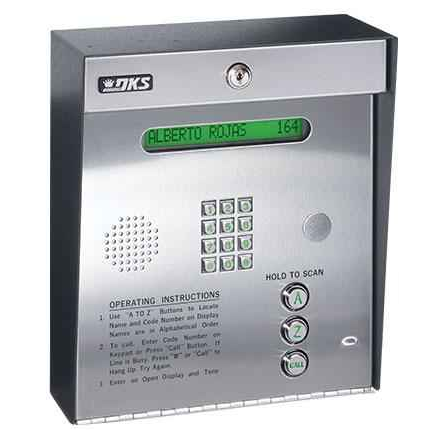

The Model 1835 is an ideal Telephone Entry System suited for apartment and gated community applications as well as office buildings and industrial sites. Each 1830 Series unit allows for a Voice and Data connection over Cellular, Internet, or POTS (Plain Old Telephone Service) connections. The single-line LCD display features big 1/2-inch characters for easy viewing and your personalized message scrolls across the screen from right to left when the system is not in use. Our unique “One Touch” CALL button makes this system one of the easiest to use on the market today.

The built-in electronic directory, easy-to-use Remote Account Manager programming software, card reader interface, and expandability options make this unit an ideal choice for those applications with a large number of system users and entry locations. The 1835 can be expanded with wired Tracker expansion boards to control up to 48 access points (or 24 with a wireless connection). Additionally, our elevator control module restricts which floors a guest or system users have access to, making it an ideal system for high-rise buildings.

For additional security, the 1835 allows you to monitor activity AS IT HAPPENS on your computer display, and with our anti-pass back memory, you can enable a TRUE anti-pass back system in one of three different configurations; passive, active, and trap.

The model 1835 is an ideal telephone entry and access control system that is suited for a wide variety of applications. The built-in electronic directory and easy to use remote account manager software for windows make it a complete all-in-one compact unit. The system can expand to control up to 16 entry points and supports elevator control. Standard features include: full-duplex communication, remote account manager software, live transactions, holiday schedule, database import/export capability, transaction buffer stores last 8000 events, 31 security (permission) levels, programmable facility codes, hold open time zones, programmable directory codes (1-4 digits), 10 and 11 digit dialing capability , large A and Z scroll and call buttons, 3 relays for door/ gate control, single-line electronic display uses super-twist LCD with 1/2 inch characters, EEPROM memory, and a built-in postal lock provision.

Specifications

• True Full Duplex Communication.
• Stores up to 3000 telephone numbers and names (names are limited to 15 characters max).
• Stores up to 255 area codes.
• Transaction buffer stores last 8000 events.
• Stores up to 8000 access card codes – dependent on system memory.
• 31 security (permission) levels, 29 programmable with 4 time zones each.
• 8 hold open time zones.
• Three anti-pass back configurations: passive, active and trap.
• Elevator control (note 1) for up to 8 elevators, each serving 64 floors.
• Expandable (note 2) to control up to 48 wired entry points (or 24 wirelessly).
• 4-digit entry codes, one for each telephone number.
• 3 form “C” dry contact relays.
• Single-line directory display uses super-twist LCD with 1/2-inch characters.
• EEPROM memory chip.
• Requires touch-tone, loop-start central office phone line.
• Two 16 VAC, 20 VA power transformers supplied.
• FCC (US): DUF6VT-12874-OT-T
• DOC (CAN): 1736 4528 A
• Compliant with UL 294.   ETL listed.
• Environmental: 10°F to 145°F (-12°C to 62°C)
• Heater Kit (P/N 2600-584) recommended when temperatures routinely fall below 10°F (-12°C)
• ADA Compliant Handset Kit (P/N 1807-012)
• Camera Ready: Optional B&W or Color CCTV Camera* *may require additional CCTV equipment
