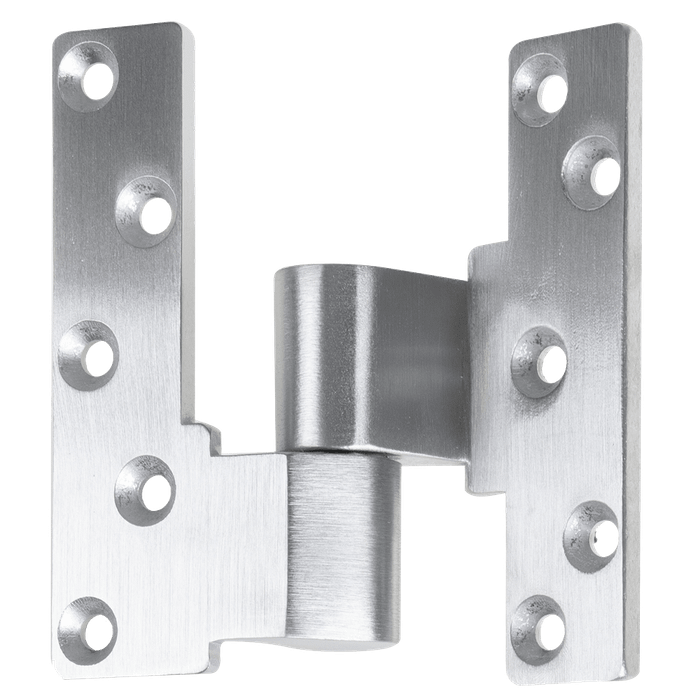

Dormakaba 75220 LH Full Mortise Standard Intermediate Pivot, 3/4" Offset Hung, Aluminum Painted Finish, Left-Handed

Dormakaba 75220 LH Full Mortise Standard Intermediate Pivot, 3/4" Offset Hung, Aluminum Painted Finish, Left-Handed

(No reviews yet) Write a Review

Model: 75220 LH 626

In Stock (leaves warehouse same day if ordered before 3pm ET)

$489.00
$295.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Dormakaba 75220 LH Full Mortise Standard Intermediate Pivot, 3/4" Offset Hung, Aluminum Painted, Left-Handed

The Dormakaba 75220 LH is a Full Mortise Standard Intermediate Pivot engineered for commercial door applications requiring precise, dependable pivot-point support. Designed with a 3/4" offset hung configuration, this left-handed pivot installs at the intermediate position on the door to distribute load and ensure smooth, controlled operation across the full range of motion. Finished in a durable aluminum painted coating, it is suited for demanding commercial environments where both performance and appearance matter.

Key Features

  • Full Mortise Design: Mortises directly into the door and frame for a secure, flush-mounted installation that maintains a clean, professional appearance.
  • 3/4" Offset Hung Configuration: Provides precise 3/4" offset spacing to accommodate proper door clearance and alignment in offset hung pivot door systems.
  • Standard Intermediate Pivot: Functions as the intermediate pivot point in a multi-pivot door system, helping to distribute door weight and reduce stress on top and bottom pivots for extended service life.
  • Left-Handed Handing: Specifically designed for left-handed door applications, ensuring correct geometry and operation without field modification.
  • Aluminum Painted Finish: Features a factory-applied aluminum painted finish that provides a clean, neutral aesthetic compatible with a wide range of commercial door frame and hardware finishes.
  • Commercial-Grade Construction: Built to commercial standards as a replacement part and accessory within the Dormakaba door hardware system, delivering reliable performance in high-traffic settings.
  • Dorma Door Closer Parts & Accessories Compatibility: Designed as part of the Dormakaba (formerly Dorma) door closer parts and accessories system for seamless integration with compatible pivot door hardware.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Pivots
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: 75220 LH
  • Features: Dorma Door Closer Parts & Accessories

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties

Why Dormakaba 75220 LH?

Dormakaba pivot hardware is engineered to commercial standards, delivering consistent performance in high-traffic door applications where structural integrity and precise alignment are critical. The 75220 LH full mortise intermediate pivot is purpose-built for offset hung pivot systems, ensuring reliable load distribution and long-term door operation without compromise. As a genuine Dormakaba replacement part, it integrates seamlessly with compatible door hardware systems for straightforward serviceability.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Pivots
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
75220 LH
Features:
Dorma Door Closer Parts & Accessories

Dormakaba 75220 LH 626 – Frequently Asked Questions

1) What does an intermediate pivot like the Dormakaba 75220 actually do on a pivot-hung door?
It is the middle pivot point in a multi-pivot hanging arrangement. The 75220 mortises into the door edge and the frame at an intermediate height, so door weight and racking loads are shared instead of being carried entirely by the top and bottom pivots. On tall or heavy commercial doors that is what keeps the door in alignment over time. It is a pivot only, not a closer and not a top or bottom pivot, so it does not hang a door on its own.
2) Is the Dormakaba 75220 LH handed, and can I use it on a right-hand door?
Handing matters here. The 75220 LH is built specifically for left-hand openings and the geometry is not field-reversible, so it should not be installed on a right-hand door. Determine handing from the outside of the opening before ordering, and get the matching right-hand version if the door swings the other way.
3) Will a 3/4 inch offset pivot work on a door that is center hung or 1/2 inch offset?
No. The 75220 LH is made for 3/4 inch offset hung pivot systems, and the offset dimension has to match the rest of the pivot set and the frame prep. A center hung door or a 1/2 inch offset arrangement needs hardware built for that geometry, for example the Adams Rite B1921 reinforcing pivot, which is the 1/2 inch offset version, versus the B1923 at 3/4 inch offset.
4) Is the Dormakaba 75220 a surface applied pivot or does the door have to be prepped?
It is a full mortise pivot, so both the door and the frame need to be mortised for it. It sits flush once installed, which is why it suits finished commercial openings, but it is not a surface mount retrofit. If the existing door has no intermediate pivot pocket, that prep has to be cut. A surface applied reinforcing pivot such as the Adams Rite B1923, which mounts in conjunction with 4-1/2 inch wide butt hinges, is a different approach to the same problem.
5) Do I need anything else besides the intermediate pivot to hang the door?
Yes. An intermediate pivot supports the door at a mid height point; it does not carry the door by itself. A complete offset hung arrangement still needs the top pivot or closer arm pivot and the bottom pivot or floor closer spindle, all matched to the same 3/4 inch offset. Order the 75220 LH as an addition or replacement within that set, not as a standalone hanging device.
6) What finishes does the Dormakaba 75220 LH intermediate pivot come in?
Four: 606 satin brass, 626 satin chrome, 689 aluminum, and 693 black. Aluminum painted (689) is the common choice for matching storefront and hollow metal frames; 626 satin chrome is the one to pick when the rest of the opening's hardware is brushed chrome. If you are standardizing pivots across a building, order all openings in the same finish code so service parts stay interchangeable later.
7) Is this pivot suitable for high traffic commercial doors, or is it a residential part?
Commercial. The 75220 LH is catalogued as a commercial replacement part in the Dormakaba (formerly Dorma) door closer parts and accessories program, and it is used on office, school, healthcare, government, retail, warehouse, and multi tenant residential openings. For a property manager replacing a worn pivot on a heavily used entrance, this is the genuine Dormakaba service part rather than a light duty substitute.
8) I am replacing a worn Dorma intermediate pivot. Is the 75220 the same part?
If the opening is 3/4 inch offset hung, left hand, and the existing pivot is a full mortise intermediate pivot from the Dorma line, the 75220 LH is the genuine Dormakaba replacement for that position. Dorma is now Dormakaba, so older Dorma labelled hardware belongs to the same parts program. Confirm the offset and the handing off the door you are pulling before you order, since those two details are what make a pivot fit or not.
