Dormakaba InSync RMA100C Batte...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$736.48
$628.24
Dormakaba Dormakaba InSync Battery Operated ASM Mortise Lock, Auto Deadbolt, Unit, Continental Lever, Right Hand, Satin Chrome RMA100C-26D

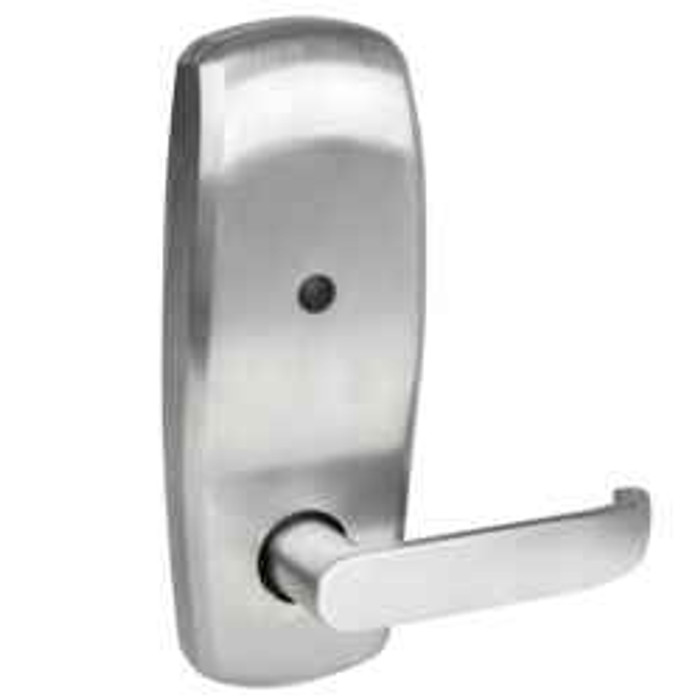

Dormakaba InSync RMA100C Battery Operated ASM Mortise Lock, Auto Deadbolt, Unit, Continental Lever, Right Hand, Satin Chrome

(No reviews yet) Write a Review

Model: RMA100C-26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$736.48
$628.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Dormakaba InSync Battery Operated ASM Mortise Lock, Auto Deadbolt, Unit, Continental Lever, Right Hand

InSync locks work together with SAM RF software to create a single system that manages both key and access control at perimeter entries, amenity and utility doors as well as apartment or bedroom doors. With the InSync system, administrators only need to program the locks once; the software continually manages critical informational changes such as access privileges and move ins/outs. This information is delivered automatically to each lock via the InSync key once the “New” version of the key is created and used in the locks. Only one key is required for use at multiple access points, creating a convenient and efficient “No Touring” user experience. InSync lock models accommodate virtually all door types and preparations, and common area/amenity applications. The locks feature contemporary finishes and lever options to complement today’s design trends.

  • Unit — Designed for apartment entry, offices, utility rooms, and more
  • Suite — Ideal for multiple leases per apartment, such as student housing
  • Common — Used for perimeter entries and amenity spaces
  • Entry — Used to make an InSync Unit lock behave like a hotel lock; the lock will always automatically re-lock behind a resident
  • Suite Egress — Used to make a Suite lock act like a Unit lock where the key or the thumbturn is used to manually re-lock the lock



SAM RF Software & Hardware: The Windows-based SAM RF software, the encoder (key-encoding device), and the handheld utility device for programming the locks are separate items:

DormaKaba R20470 SAM RF Emergency Lock Power Supply (ELPS)

DormaKaba R21220 SAM RF Encoder With Extra Memory – Power Cord NOT Included

DormaKaba R21190 SAM RF Utility Device, With Extra Memory, Battery Not Included

Product details

The InSync Access Control System has different configurations to accommodate various applications, from unit and suite to elevator and pool access.



InSync I and D Unit Locks

The I and D unit configurations provide operational functionality for individual entry doors. Rotation of the inside thumbturn or the inserted RFID key extends or retracts the 1" dead bolt locking or unlocking the door. In the locked position, only duplicate resident and authorized service keys can access the unit. Unit locks are programmed with one resident code (change key). Each key made with one resident code can have up to 64 unique identity codes.



InSync M and L Unit Locks

The M and L unit configurations provide true residential entry lock functionality. Each time the inside lever is rotated, the lock goes into a “toggled” condition which eliminates the possibility of lock outs. When the key is inserted into the lock after egress, the lock is placed back into a locked position. An audit trail is created and stored within the lock for each occurrence. The inside thumbturn, when turned, will toggle the lock between unlocked and locked. Multiple residents can have access to the same unit if needed. All residents are completely unique in the system and are tracked individually.



InSync I, D, M and L Suite Locks

The suite configuration allows ingress and egress to multiple residents who need to access individual unit doors located behind the suite door. A resident uses the InSync I and D suite locks just like a traditional door lock.  The resident throws the dead bolt using the interior thumbturn or rotating the key in the lock after ingress or egress to relock the door. M and L suite locks have no interior thumbturn and always remain in a locked position after ingress or egress. Suite locks can recognize up to 20 unique resident codes.



InSync RAC Common Area Access

InSync RAC and CP products are available as either standalone battery- operated door locks or hard-wired AC/DC electrically powered devices designed to work in conjunction with other electronic latching hardware.
RAC works in conjunction with remote access points including elevators, outdoor pools, roll-up garage doors, parking arms, electric strikes, magnets, and telephone entry systems.



Technical Data

  • 1" deadbolt (D, I)
  • 2⅜" (60mm) or 2¾" (70mm) backset (D, I)
  • Interior thumbturn (D, I)
  • Standard deadbolt door prep (D, I)
  • Door thickness: 1⅜" – 2" (D, I)
  • Interconnected single motion egress (I)
    • When the inside lever is rotated, both latch and deadbolt are simultaneously retracted
  • ADA-compliant levers and thumbturns (I)
  • UL certified for use on fire-rated doors: 20-minute rating (D, I)
  • Environmental: Indoor/Outdoor approved (D, I) -31 °F to 151 °F (-35 °C to 66 °C)
  • Uses 4 AA batteries (D, I)



InSync M Electronic Lock with ASM Mortise and InSync L Electronic Lock with Tubular Deadlatch

  • ½" tubular deadlatch (L)
  • 2⅜" (60mm) or 2¾" (70mm) backset (L)
  • UL certified for use on fire-rated doors: 20-minute rating (L)
  • Interior thumbturn (Unit models only) (L, M)
  • Complete lever set/single motion egress (L, M)
  • 1" automatic deadbolt (ADB) (M)
  • 2¾" (70mm) backset (M)
  • UL certified for use on fire doors: 20-minute rating or 3-hour rating (M)
  • 8" mortise lock (M)
  • ¾" dead-locking latch (M)
  • ADA-compliant levers and thumbturns (L, M)
  • Environmental: Indoor/Outdoor approved (L, M)
    • -31 °F to 151 °F (-35 °C to 66 °C)
  • Uses 4 AA batteries (L, M)



InSync C Series - RAC Remote Access Controller, CP Electronic Lock for Exit devices, CL Electronic lock with Tubular Deadlatch and CM Electronic lock with ASM Mortise

  • Remote control unit (RCU) switch works with electrified locking devices (RAC)
  • Controls electronic strikes and magnetic latches up to 24 volts AC/DC (RAC)
  • Functions as elevator control unit (ECU) with a single relay (RAC)
  • Available in flush or surface mount (RAC)
  • Works in conjunction with rim and vertical exit hardware for common area doors (CP)
  • Interfaces with industry-leading exit devices (CP)
  • Compatible with a variety of rim and surface mount vertical rod panic hardware (CP)
  • ½" tubular dead latch (CL)
  • Single motion egress with common area electronics (CL, CM)
  • ¾" anti-pick latch (CM)
  • Available with UL 20-minute or 3-hour rating (CM)
  • Environmental: Indoor/Outdoor approved (RAC, CP)
    • -31 °F to 151 °F (-35 °C to 66 °C)



Finishes for all models: (Limited availability)

  • Satin Chrome
  • Satin Brass
  • Bright Chrome
  • Bright Brass
  • *Dark Mahogany
  • *Satin Nickel



Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
InSync Series
Configuration:
Common - Used for perimeter entries and amenity spaces
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Subcategory:
Mortise Lock
Lock Type:
Mortise
Commercial/Residential:
Commercial
Power:
Battery Operated
Battery Operated:
Yes
Handle Type:
Lever
Product Attribute:
Mortise Locks
Electronic:
Yes
Product Model:
RMB320C
Product Category:
Mechanical Locks
Department:
Door Hardware

Dormakaba RMA100C-26D – Frequently Asked Questions

1) Is the InSync ASM mortise lock approved for a fire rated apartment entry door?
Yes. The InSync ASM mortise models are UL certified for use on fire doors at either a 20 minute or a 3 hour rating. That covers both the 20 minute corridor-side apartment entry door and 3 hour rated stair or separation openings. The levers and thumbturns on the mortise models are ADA compliant as well.
2) Does the RMA100C work on its own, or do I need other equipment to run it?
The lock is standalone battery power, four AA cells, with no wiring to the door. But it is not a program-at-the-keypad lock: InSync locks are set up through SAM RF software, and the Windows software, the key encoder, and the handheld utility device used to program the locks are all sold separately. If you are starting a building from zero, budget for those three items plus the locks. If you already run SAM RF, this lock joins the existing system.
3) Is the RMA100C right for a lobby or pool door, or is it meant for apartment doors?
This one is built in the Common configuration, which Dormakaba specifies for perimeter entries and amenity spaces, so lobby, fitness room, mail room and pool gates are the intended openings. Unit is the configuration for apartment entries, offices and utility rooms; Suite is for multiple leases behind one door such as student housing. Ordering a Common lock for a resident unit door gets you the wrong access behavior, so match the configuration to the opening before you order.
4) Do I have to order handing on the Dormakaba InSync mortise lock?
Handing matters here. This is the right hand build with the Continental lever, so it is not field reversible the way a mechanical mortise lock body often is. Stand outside the door: if the hinges are on your right and the door swings away from you, right hand is correct. Get it backwards and the lever points the wrong way. Several mechanical mortise bodies we carry, like the BEST 45H public entrance body, are field reversible instead, but the electronic InSync is ordered handed.
5) What else could I use instead of a Dormakaba InSync mortise lock for a multifamily common area door?
If you want RFID credentials in a mortise body from another brand, the TownSteel FME-2000 Series is a Grade 1 heavy duty mortise lockset with RFID for 1-3/4 inch doors, and the Schlage Electronics LEMD-GRW is a Grade 1 ENGAGE wireless mortise lock with a 125kHz proximity reader and a 3 hour fire rating. If you would rather have a keypad than a card, the Alarm Lock DL3500CR Trilogy is a Grade 1 mortise lock for 1-5/8 to 1-7/8 inch doors, and the Schlage CO-100 is a standalone keypad mortise lock for 1-3/4 inch doors. The InSync differs from all of them in that the credential itself carries programming changes out to the locks.
6) What is a comparable RFID-credential mortise lockset if the Dormakaba InSync RMA100C is not the right fit?
The TownSteel FME-2000 Series is a Grade 1 heavy duty mortise lockset that uses RFID technology, so the credential type matches the InSync RMA100C's RFID key approach. The FME-2000 is a classroom function lock, while the RMA100C is a battery operated electronic mortise lock with a lever handle. TownSteel also builds the FME-4000 Series, an electronic intruder classroom mortise lock with RFID technology, for openings that need the intruder function.
7) Which electronic mortise lock should be used instead of the Dormakaba InSync RMA100C when the site wants a keypad rather than a credential key?
The Alarm Lock DL3500CR Trilogy is a Grade 1 electronic mortise lock with 300 user codes and classroom function, and the DL2700CR Trilogy T2 is a Grade 1 electronic mortise classroom lock with a weatherproof design; both fit doors 1-5/8 inch to 1-7/8 inch thick. The Schlage CO-100 is a standalone electronic mortise lock with a keypad reader in privacy function, Grade 1 heavy duty, for 1-3/4 inch doors. The InSync RMA100C is credential based rather than keypad based, using the InSync RFID key.
8) What replaces the InSync RMA100C on a common area or perimeter door that has to run on building power instead of batteries?
The Dormakaba InSync RMA100C is a battery operated lock. For a hard-wired opening, the BEST 45HW Series is a wired electromechanical mortise lock rated heavy duty with 12V/24V operation, and the Command Access ML190 Series is a motorized mortise lock with field selectable EL/EU operation on 24VDC in storeroom function. The Schlage L9092EU with 03A trim is an electric lock/unlock outside lever mortise lock, keyed outside, with request to exit, running 12/24VDC on 1-3/4 inch doors in corridor function.
9) What electronic mortise lock works for an amenity or perimeter door that needs to report to a wireless access control head end rather than a standalone system?
The Schlage Electronics LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader and a mobile enabled deadbolt with LED, Greenwich trim, right hand, with a 3 hour fire rating. The Alarm Lock DL1300NW Trilogy Networx is a wireless electronic mortise lock with a keypad, built for Adams Rite deadlatches. The Dormakaba InSync RMA100C is configured for common area use at perimeter entries and amenity spaces and carries data on the InSync key rather than over a network.
10) What is an alternative to the Dormakaba InSync RMA100C on a 3 hour fire rated opening?
The InSync ASM mortise models are UL certified for fire doors at a 20 minute or 3 hour rating. Among comparable electronic mortise locks, the Schlage Electronics LEMD-GRW carries a 3 hour fire rating and is Grade 1 in the ENGAGE Series, and the LEBMB-ADD mobile enabled mortise lock with push button and LED also carries a 3 hour fire rating at Grade 2 for 1-3/4 inch doors.
11) Can this InSync lock go on an exterior door in a cold or hot climate?
Indoor and outdoor approved, with an operating range of -31 F to 151 F (-35 C to 66 C). That covers a northern perimeter entry in winter and a sun-exposed south wall door in summer, which is why the Common configuration is used at building entrances in the first place.
12) How many residents or staff can one InSync Common area lock let in?
Common area access on the InSync system runs off the RFID key rather than per-lock user codes, and the point of the system is that one key opens multiple access points, so a resident carries a single credential for the entry, the amenity door and their own unit. Access privileges are managed once in the software and pushed to each lock the next time a newly created key is used in it, which is the no-touring part of the design. For comparison, keypad-based mortise locks we carry work the opposite way: the Alarm Lock DL3500CR holds 300 user codes and the DL4500 holds 2,000, all programmed lock by lock.
13) Can I use the InSync system to control an elevator, a gate or an electric strike as well as the door locks?
Yes, but not with this lock. The mortise lock secures a door leaf; remote access points such as elevators, outdoor pools, roll-up garage doors, parking arms, electric strikes, magnets and telephone entry systems are handled by the InSync RAC remote access controller, which switches electronic strikes and magnetic latches up to 24 volts AC/DC and works as an elevator control unit with a single relay. RAC comes flush or surface mount and can be battery operated or hard-wired AC/DC. For common area doors already on rim or surface vertical rod exit hardware, the CP unit is the piece that interfaces with the exit device.
14) What happens to a battery operated InSync lock if the batteries die with someone locked out?
The lock runs on four AA batteries at the door. Dormakaba's answer for a dead battery on the SAM RF platform is the R20470 SAM RF Emergency Lock Power Supply (ELPS), a handheld unit that powers the lock long enough to open it and swap cells. If you are standardizing a building on InSync, keep at least one ELPS with the maintenance staff.
15) Is there a simpler mechanical mortise lock to use on an apartment door instead of the electronic Dormakaba InSync RMA100C?
Yes. The Baldwin 6301LS is an entry/apartment mortise lock body with lever by lever trim and a 2-1/2 inch backset for doors 1-3/4 inch and over; the 6301 is the same entrance/apartment function with knob by knob trim. The Cal-Royal NM8050 is a heavy duty Grade 1 office/entrance mortise lockset with an auxiliary deadlatch for 1-3/4 inch doors. These are keyed mechanical locksets, where the InSync RMA100C is an electronic battery operated lock managed through the InSync system.
16) Do the Sargent 130KB and 130W thumbturns work as replacement parts for a Dormakaba InSync RMA100C?
No. The Sargent 130KB is a standard duty mortise thumbturn in the 8200 Series and the 130W is a standard duty mortise thumbturn with a round backplate in the 7800 Series. Both are trim pieces for their own Sargent mortise lock bodies, not complete locks. The InSync RMA100C is a complete battery operated electronic mortise lockset with a Continental lever, so a thumbturn alone does not substitute for it.
17) Are the Emtek 3102 Memphis and similar mortise entrance locksets substitutes for the Dormakaba InSync RMA100C?
No. The Emtek 3102 Memphis, 3104 Hamilton, 3106 Manhattan and 3019 Brisbane mortise entrance locksets are all dummy function, meaning they are non-operating trim with no latch or bolt action. The InSync RMA100C is a working battery operated mortise lock with an automatic deadbolt for commercial use. A dummy lockset is the wrong choice on any door that must lock.
18) What mortise lock has a deadbolt function comparable to the InSync automatic deadbolt but without electronics?
The Sargent 4874 is a double cylinder mortise deadbolt with a 2-3/4 inch backset in the 4870 Series, which matches the 2-3/4 inch (70mm) backset used on the InSync ASM mortise models. The Kaba Ilco 185 Series is a deadbolt function mortise lock with no handing. Both are key operated deadbolts, where the RMA100C throws its 1 inch automatic deadbolt under electronic control.
19) Which mortise lock suits a school or campus corridor better than the Dormakaba InSync RMA100C?
For a classroom opening, the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset in the ML2000 Series for 1-3/4 inch doors, and the Cal-Royal NM8070 is a heavy duty Grade 1 classroom mortise lockset with an auxiliary deadlatch. For a dormitory corridor, the Sargent 7925 is a Grade 1 heavy duty dormitory exit function mortise lock with rose trim and a single cylinder deadbolt. The InSync RMA100C is set up for common area use at perimeter entries and amenity spaces.
20) What electronic mortise option is there for a common area door that already has exit hardware or a narrow stile aluminum frame?
The Alarm Lock DL1300NW Trilogy Networx wireless electronic mortise lock with keypad is built for Adams Rite deadlatches, which is the arrangement on narrow stile aluminum doors. The Codelocks CL2255 is a medium duty electronic tubular mortise latch in the CL2000 Series with a brushed steel finish. The InSync RMA100C is an ASM mortise lock with an automatic deadbolt for standard mortise prep.
21) Which touchscreen or keypad mortise lock compares to the Dormakaba InSync RMA100C for a shared amenity entrance?
The Accentra NTM623-NR is a Grade 1 nexTouch Generation 3 mortise lock with a capacitive touchscreen keypad, no deadbolt, with cylinder override. The BEST 45HZ EZ Series is an electronic keypad mortise lock with a key override function. Both authenticate at the door with a code, while the InSync RMA100C reads the InSync RFID key and holds an audit trail in the lock.
22) What non-keyed mortise lock fits an opening where the InSync RMA100C would be more lock than the door needs?
For a door that only needs latching, the Schlage PM010 is a Grade 1 passage latch mortise lock, non-keyed, for 1-3/4 inch doors, and the Falcon MA101 is a Grade 1 heavy duty mortise passage lock with field reversible operation and a fire rating. For a restroom or bedroom, the Hager 3840S is a Grade 1 privacy mortise lock with a 2-3/4 inch backset for doors 1-3/4 inch to 2 inch. The InSync RMA100C is a credential controlled electronic lock instead.
23) Which mortise lockset should be specified instead of the InSync RMA100C for a behavioral health or ligature resistant opening?
The TownSteel MRX-L-01 is a stainless steel Grade 1 heavy duty anti-ligature lever mortise lockset in passage function for 1-3/4 inch doors, and the MRX-A-01 is the same passage function with satin stainless ligature resistant arch trim. The Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset, ligature resistant and ADA compliant in satin stainless steel. The InSync RMA100C uses a Continental lever, which is not a ligature resistant trim.
24) What storeroom function mortise lock pairs with an InSync RMA100C rollout on utility and service doors?
The Accentra 8805FL is a Grade 1 storeroom mortise lock in the 8800 Series with an Arcadia lever, and the Cal-Royal NM8080 is a heavy duty Grade 1 storeroom mortise lockset with an interchangeable core option for 1-3/4 inch doors. The Baldwin 6310190RRLS is a right hand reverse entry/storeroom lever by lever mortise lock with a 2-1/2 inch backset for doors 1-3/8 inch and over. These are keyed mechanical storeroom locks that sit alongside credential controlled InSync openings.
25) How does the Dormakaba InSync RMA100C compare to a keyed mortise lock on how thick a door it accepts?
The InSync line covers doors 1-3/8 inch to 2 inch on its deadbolt and interconnect models. Among mechanical comparables, the Hager 3810E passage mortise lock with escutcheon and 2-3/4 inch backset takes doors 1-3/4 inch to 2-1/2 inch, the Baldwin 6310 entry/storeroom mortise body takes 1-3/8 inch and over, and the Cal-Royal NM8440 Grade 1 privacy mortise lockset with deadbolt is set for 1-3/4 inch doors.
26) What finish does the InSync RMA100C come in, and will it match the other hardware in the building?
Satin chrome, BHMA 626, which is the most common commercial finish and pairs with the satin chrome closers, exit devices and pulls already on most multifamily and institutional openings. The InSync line was offered in satin chrome, satin brass, bright chrome, bright brass, dark mahogany and satin nickel, but this particular ASM mortise build is satin chrome only.
27) Can a mortise lock body like the BEST 45HCAC be used in place of the Dormakaba InSync RMA100C?
No. The BEST 45HCAC is a heavy duty mortise lock body in public entrance function with field reversible operation, and the 45HCAINL is a heavy duty mortise lockbody with intruder function. Those are lock bodies supplied without electronics or credential reading. The InSync RMA100C is a complete battery operated electronic lockset with a Continental lever and a right hand configuration.
28) Is the Marks USA 21AC or 22AC a workable substitute for the Dormakaba InSync RMA100C?
No. The Marks USA 21AC and 22AC are entrance double cylinder ornamental iron mortise locks with round knobs, and both are built for 1 inch thick doors. The InSync RMA100C is a commercial electronic mortise lock with a lever, so the door prep, thickness range and trim are different classes of hardware.
