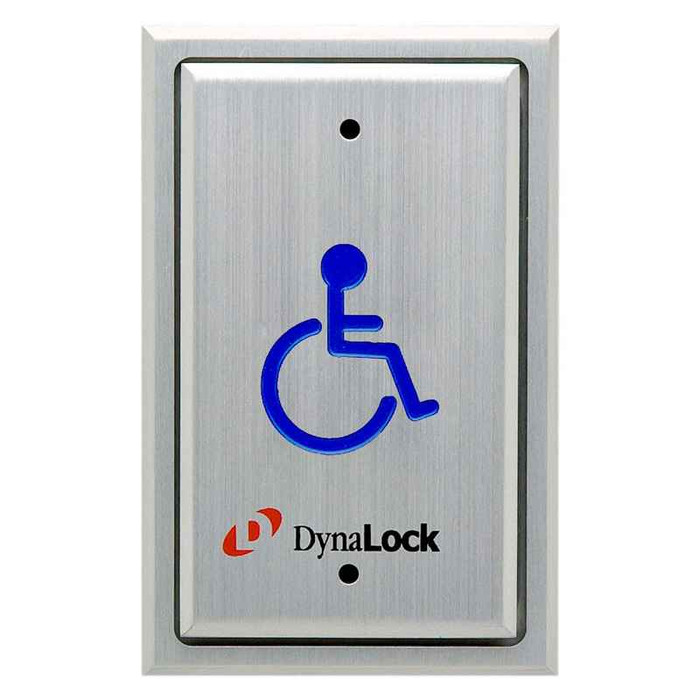

DynaLock 6705 Series Handicapped Pushplates
Model 6775 Recessed Single Gang, Alternate Action DPDT
6705 & 6805 Series Handicapped Pushplates are heavy duty egress controls
machined from solid aluminum with blue engraved handicapped symbol.
Multiple switching configurations and finishes are available. Narrow recessed
models are specifically designed for installation in aluminum store front
frames, requiring minimal cut-out/preparation. All momentary models
feature “all active” operation.
Standard finish - Satin Aluminum US28
PTD Contact Rating: 10 A @ 125VAC
All Others: 6 A @ 125VAC
Manufacturer Resources
Product Specs
- Subcategory:
- Push Buttons
- Series:
- 6705
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Sensors, Switches, Relays and Timers
- Product Type:
- Switches / Push Buttons
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Duty Level:
- Heavy Duty
- Product Model:
- 6775
- Product Finish:
- Satin Aluminum (US28)
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
DynaLock 6775 US26 – Frequently Asked Questions
1) Does the DynaLock 6775 pushplate stay latched when pressed, or does it only work while you hold it?
The 6775 is an alternate action switch, so one press latches the contacts on and the next press releases them. That is the difference between it and DynaLock's momentary 6705 models, which are active only while pressed and are described as "all active" operation. Use alternate action where you want the door to stay unlocked or held open until someone presses again, not for a simple timed release.
2) What are the contact ratings on the DynaLock 6705/6775 handicap pushplates?
On the 6775 and the other non-PTD switch configurations, the contacts are rated 6 A at 125VAC. The PTD contact version is rated higher at 10 A at 125VAC. Being DPDT, the 6775 gives you two independent sets of transfer contacts, so you can drop power to a mag lock on one pole and signal an operator or alarm shunt on the other.
3) Will a recessed single gang pushplate fit an aluminum storefront frame?
Yes, that is what the narrow recessed 6775 is built for. DynaLock states the narrow recessed models are specifically designed for installation in aluminum storefront frames and require minimal cut-out and preparation. If you are mounting into drywall or a block wall instead, you are looking at a standard single gang box location rather than a frame cut.
4) The DynaLock 6775 is for accessible egress - what should be specified for an emergency exit release instead?
The DynaLock 6775 carries a blue engraved handicap symbol and is intended as an accessible egress control, not an emergency release. Where the code requirement is an emergency exit device, the Securitron EEB emergency exit push button with interchangeable LED lenses and the ACSI 1320-1-MOM-ER pushbutton switch marked "Emergency Release" are both marked and built for that duty. Those are separate devices from the accessible actuator, and many openings carry both.
5) What is the closest alternative to the DynaLock 6775 handicap pushplate if a momentary switch is needed instead of alternate action?
The DynaLock 6775 is an alternate action DPDT recessed single gang pushplate, meaning each press latches the contacts over. For an opening that needs the door release to be active only while the plate is pressed, the RCI 950 Series round push plate carries the same handicap symbol and uses a momentary switch in satin stainless steel. Note the RCI 950HP is a round plate rather than a narrow recessed single gang plate, so the frame cut-out is not the same.
6) For an aluminum storefront frame, what else can be used besides the DynaLock 6775 pushplate?
The DynaLock 6775 is one of the narrow recessed 6705/6805 models specifically designed for aluminum store front frames, requiring minimal cut-out and preparation. If a different narrow-style device is preferred in that same mullion, the Trine 342 is a narrow style electric door switch. The Trine 342 is a switch rather than a solid aluminum plate with a blue engraved handicap symbol, so it will not read as an accessible actuator on the frame.
7) What else could I use instead of the DynaLock 6775 if I need a momentary handicap push plate rather than a latching one?
The RCI 950 Series round push plate carries the handicap symbol and is a momentary switch in satin stainless. That is the right direction when you want the door released only while the button is pressed or want a round plate rather than a recessed single gang rectangle. Other release devices worth comparing are the Securitron PB3 and PB5 push buttons and the Trine 342 narrow style electric door switch, which like the DynaLock recessed models suits narrow storefront stile mounting.
8) Can one DynaLock 6775 pushplate control both a mag lock and an automatic operator?
Yes, and that is the practical reason to choose the DPDT version. Double pole double throw gives two separate transfer contacts on one press, so one pole can interrupt power to the mag lock while the second sends the actuation signal to the operator. Keep each circuit within the 6 A at 125VAC rating that applies to the non-PTD configurations.
9) How does the finish selection on the DynaLock 6775 compare with the alternatives when matching existing storefront hardware?
The 6775 pushplate is offered in eight finishes - Bright Brass US3, Satin Brass US4, Light Bronze US10, Dark Bronze US10B, Medium Bronze US13, Black Satin US19, Bright Chrome US26 and the standard Satin Aluminum US28 - which is what lets it match anodized bronze and black storefront framing. Among the alternatives the RCI 950HP handicap push plate is in satin stainless steel, the RCI 919-MA is satin aluminum, and the RCI 909F flush mount momentary rocker is beige, so those are single-finish choices rather than a range to match to a frame.
10) Is a Securitron PB3 push button an equivalent replacement for a DynaLock 6775 pushplate?
They are not interchangeable in the same prep. The DynaLock 6775 is a recessed single gang plate machined from solid aluminum with a blue engraved handicap symbol and an alternate action DPDT switch. The Securitron PB3 is a push button rather than a single gang engraved plate, so the frame or wall opening and the visual identification at the door both differ. The Securitron PB4L adds an illuminated halo with a stainless push button and the PB5 is a medium round illuminated push button if a lighted actuator is wanted instead.
11) If the DynaLock 6775 pushplate needs to hold the door unlocked, is there another maintained-action option?
The 6775 uses an alternate action DPDT switch, which stays in the selected state until pressed again. Other maintained devices include the RCI 908 Series electronic exit button with red EXIT text and maintained operation, and the RCI 919 Series rotary release button with maintained operation in satin aluminum. Both are buttons rather than an engraved handicap pushplate, so choose them only where accessible actuator identification is not part of the spec.
12) Can the DynaLock 6775 handicap pushplate be used where key-controlled access is required?
No. The 6775 is a pushplate egress control that anyone can actuate by pressing it, which is the point of an accessible actuator. Where the release must be restricted to staff with a key, the ACSI 1310-1 mortise keyswitch from the 1300 Series is the device for that function. The two are often specified on the same opening, the pushplate for egress and the keyswitch for controlled entry.
13) What is the difference between the DynaLock 6775 pushplate and the RCI 909F rocker switch for a door release circuit?
The DynaLock 6775 is a solid aluminum recessed single gang handicap pushplate with an alternate action DPDT switch rated 6 A at 125VAC on non-PTD models. The RCI 909F-MO is a flush mount momentary rocker switch rated 250VAC 10A in beige. The rocker returns on release and reads as a wall switch, so it suits a back-of-house release rather than a public accessible actuator.
14) Is the handicap symbol painted on or engraved?
Engraved and filled blue, in a plate machined from solid aluminum. It is not a silkscreen or a stick-on label, so it holds up to traffic in an entry vestibule or a corridor where the plate gets hit hundreds of times a day. DynaLock rates the 6705 and 6805 series as heavy duty egress controls.
15) Is this pushplate rated for commercial buildings or is it a residential part?
Commercial. DynaLock classes the 6705 and 6805 series as heavy duty egress controls, and the 6775 is specified for commercial door hardware use, typically aluminum storefront entries, healthcare corridors, and multi-family common doors where an ADA actuator is required.
