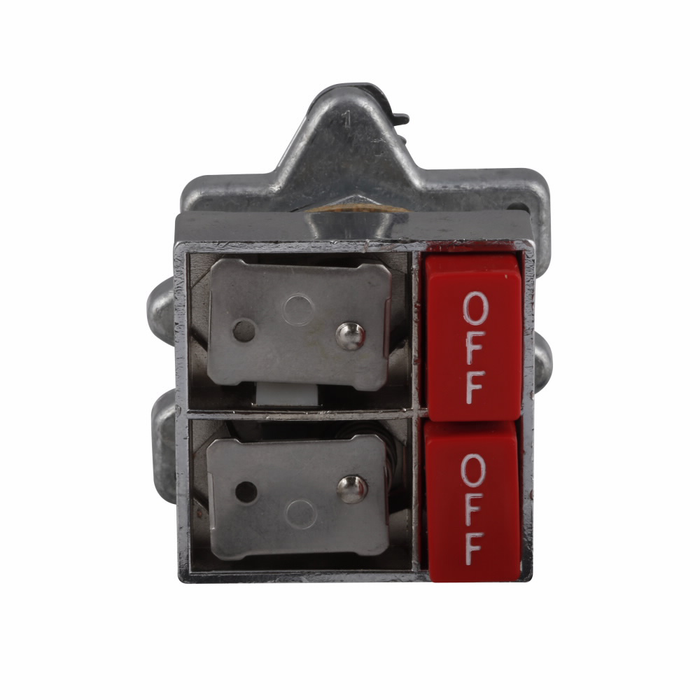

Eaton E30 Illuminated Multifunction Pushbutton, 30.5 mm, NEMA 3/3R/4/12/13

Eaton E30 Illuminated Multifunction Pushbutton, 30.5 mm, NEMA 3/3R/4/12/13

(No reviews yet) Write a Review

Model: E30AM

In Stock (leaves warehouse same day if ordered before 3pm ET)

$288.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton E30 Illuminated Multifunction Pushbutton, 30.5 mm, NEMA 3/3R/4/12/13

The Eaton E30 is a 30.5 mm square multifunction pushbutton operator built for demanding industrial control panels and machine interfaces. This unit is illuminated and configured as maintained on the top actuator and momentary on the bottom actuator, using an incandescent lamp powered by a 120 Vac transformer light unit for clear, reliable status indication. Rated for NEMA 3, 3R, 4, 12, and 13 enclosure types, it stands up to washdown, dust, and outdoor environments while delivering dependable dual-function operation from a single 30.5 mm mounting hole.

Key Features

  • Trade Size: 30.5 mm square multifunction mounting profile for standard E30 panel cutouts.
  • Dual Operating Mode: Top actuator is maintained and the bottom actuator is momentary, allowing two distinct control functions from one unit.
  • Illuminated Operator: Incandescent lamp with a 120 Vac transformer light unit provides bright, visible status indication at the operator station.
  • Voltage Rating: 120 Vac transformer light unit for standard control-panel power supplies.
  • Environmental Protection: Rated NEMA 3, 3R, 4, 12, and 13 for indoor and outdoor use, including washdown, dust-tight, and oil-tight applications.
  • Series: Part of Eaton's E30 platform of 30.5 mm pushbuttons, pilot devices, and operator interfaces.

Certifications & Compliance

  • NEMA 3 Rated
  • NEMA 3R Rated (Raintight)
  • NEMA 4 Rated
  • NEMA 12 Rated
  • NEMA 13 Rated

Technical Specifications

  • Product Type: Transformer
  • Warranty: 1 year
  • Series: E30
  • Type: 30.5 mm, Square Multifunction
  • Operating Mode: Bottom: momentary

Typical Applications

  • Industrial Control Panels and Operator Stations
  • Machine Start/Stop and Status Indication
  • Outdoor and Wet-Location Control Enclosures
  • Washdown and Food/Beverage Processing Equipment
  • Dust-Tight and Oil-Tight Manufacturing Environments
  • OEM Panel Builds and Retrofit Upgrades

Why Eaton?

Eaton's E30 platform is engineered for the demands of industrial control environments, combining a rugged 30.5 mm illuminated multifunction design with NEMA 3, 3R, 4, 12, and 13 protection for both indoor and outdoor duty. The 120 Vac transformer light unit and incandescent illumination give operators clear visual feedback, while the maintained-top/momentary-bottom configuration supports flexible dual-function control from a single device. Backed by a 1-year warranty, this E30 pushbutton delivers the dependable, code-compliant performance professionals expect from Eaton electrical control products.

Manufacturer Resources

Product Specs

Product Type:
Pushbutton
Warranty:
1 year
Operating mode:
Bottom: momentary
Series:
E30
Department:
Electrical
Product Size:
30.5 mm
Voltage Rating:
120V
Standards:
NEMA 3, 3R, 4, 12, 13
Configuration:
Illuminated, Maintained Top / Momentary Bottom
Product Group:
Push Buttons

Eaton E30AM – Frequently Asked Questions

1) What size panel hole does the Eaton E30 pushbutton need?
The E30 operator mounts in a standard 30.5 mm hole, which is the common heavy-duty pilot device cutout on industrial control panels. One 30.5 mm hole gives you both functions on the two-button versions, since the maintained and momentary actuators share a single operator body.
2) Can an Eaton E30 illuminated pushbutton be used in a washdown or outdoor enclosure?
Yes. The E30 operator carries NEMA 3, 3R, 4, 12 and 13 ratings, which covers raintight outdoor enclosures, hose-down/watertight duty, and dust-tight and oil-tight indoor plant environments. That makes it usable on food and beverage equipment and outdoor control stations as well as ordinary machine panels.
3) What voltage does the E30 illuminated pushbutton light unit run on?
It uses a 120 Vac transformer light unit with an incandescent lamp, so it wires straight to a standard 120 V control circuit with no separate low-voltage supply. If your panel runs 24 V control power, this is not the operator for it.
4) Which Eaton E30 actuator style should I order?
Three actuator styles are offered. E30AM is a two-button unit with an (OFF) release bar for each button. E30FA is a two-button unit with an (OFF) release bar for the top button only. E30DF is a single-button operator. Pick the release bar arrangement based on how the operator needs to be unlatched at the station.
5) What is the difference between maintained and momentary on this Eaton E30 two-button unit?
On the two-button E30 the top actuator is maintained, meaning it stays latched in when pressed until it is released, and the bottom actuator is momentary, returning as soon as you let go. That covers a typical latched run/stop plus a jog or reset from one device.
6) Will an E30 fit the same panel cutout as my existing 30.5 mm heavy-duty pushbuttons?
Yes, if those devices use the standard 30.5 mm hole. The E30 is built on Eaton's 30.5 mm platform, so it drops into an existing cutout on a retrofit without redrilling the door. Depth behind the panel is the thing to check, since the illuminated multifunction body with its transformer light unit is deeper than a plain non-illuminated button.
