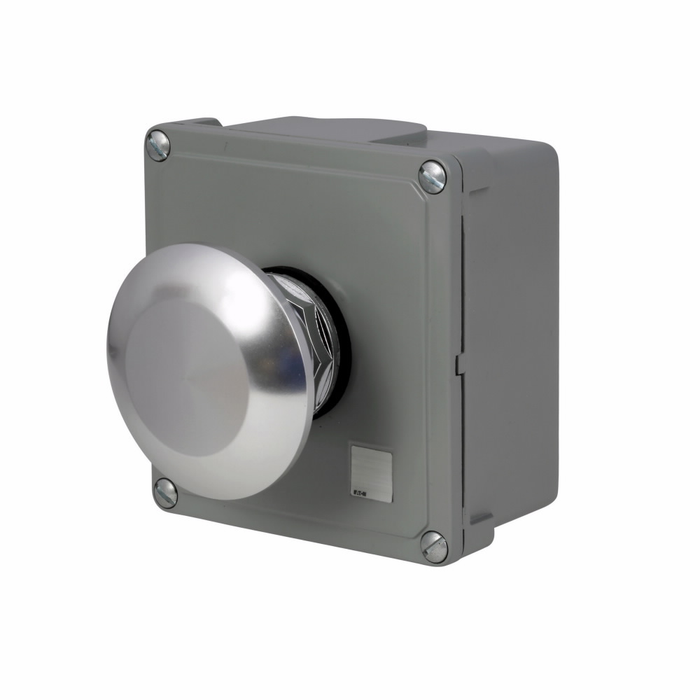

Eaton Heavy-Duty 30.5 mm Assembled Pushbutton Control Station, NEMA 1
The Eaton Heavy-Duty 30.5 mm Assembled Pushbutton Control Station is a fully assembled operator interface built for demanding industrial control applications. Housed in a die cast enclosure rated NEMA 1, this station is offered in a range of configurations, actuator styles, and finishes to suit machine control and panel-mounted stop/start operations. Backed by UL 505 certification and CE Marked compliance, it delivers dependable, code-compliant performance on the plant floor.
Key Features
- Heavy-Duty 30.5 mm Type: Industrial-grade 30.5 mm heavy-duty construction suited for continuous-use control applications.
- Durable Construction: Die cast enclosure material provides rugged protection for the internal pushbutton elements.
- NEMA 1 Enclosure: NEMA 1 rated housing for general-purpose indoor installations, with a NEMA 3R degree of protection on the actuator assembly.
- Surface Mounting: Designed for surface mounting to simplify installation on panels and enclosures.
- Multiple Configurations: Available in a variety of element counts and actuator arrangements to support single- and multi-function operator stations.
- Selectable Actuators & Finishes: Choose from available actuator styles and finishes to match your operator interface and application requirements.
- Legended Operation: Available with clear legends for fast, accurate operator identification.
Certifications & Compliance
- UL 505 Certified
- CE Marked
Technical Specifications
- Department: Electrical
- Product Type: Pushbutton
- Enclosure Material: Die cast
- Mounting Method: Surface
- Type: 30.5 mm, Heavy-Duty
- Degree of Protection: NEMA 3R
- Product Category: Assembled control station
- Series: 10250H
- Compliances: CE Marked
- Enclosure: NEMA 1
- Certifications: UL 505
Typical Applications
- Heavy-Duty Machine Control Panels
- Motor Control Stop/Start Stations
- Manufacturing and Production Line Equipment
- General-Purpose Indoor Control Enclosures
- Panel-Mounted Operator Interfaces
Why Eaton?
Eaton engineers this Heavy-Duty Assembled Pushbutton Control Station with a die cast enclosure, UL 505 certification, and CE Marked compliance to deliver reliable, code-compliant performance in demanding industrial environments. The 30.5 mm heavy-duty design and range of available configurations, actuators, and finishes ensure operators can control equipment safely and confidently on the plant floor.
Variant Specifications
| Configuration | Actuator | Model | Finish | SKU |
|---|---|---|---|---|
| 1-3 element (H5100/H5201/H5300/H5303/H5304) | Standard | 10250H5100-P | Standard | 10250H5100 |
| 1-2 element (H5104/H5310) | Extended | Standard | Standard | 10250H5104 |
| START/STOP (H5200/H5207) | Standard | Standard | Flush/red | 10250H5200 |
| 1-3 element (H5100/H5201/H5300/H5303/H5304) | Standard | 10250H5201-P | Standard | 10250H5201 |
| START/STOP (H5200/H5207) | Standard | Standard | Flush/green extended/red | 10250H5207 |
| 1-3 element (H5100/H5201/H5300/H5303/H5304) | Standard | 10250H5300-P | Standard | 10250H5300 |
| 1-3 element (H5100/H5201/H5300/H5303/H5304) | Standard | 10250H5303-P | Standard | 10250H5303 |
| 1-3 element (H5100/H5201/H5300/H5303/H5304) | Standard | 10250H5304-P | Standard | 10250H5304 |
| 1-2 element (H5104/H5310) | Flush | Standard | Standard | 10250H5310 |
Manufacturer Resources
Product Specs
- Department:
- Electrical
- Series:
- 10250H
- Compliances:
- CE Marked
- Mounting Method:
- Surface
- Product Group:
- Motor Control & Automation
- Product Type:
- Control Station
- Product Subgroup:
- Push Buttons & Pilot Devices
Eaton 10250H5200 – Frequently Asked Questions
1) Can an Eaton 10250H control station be used outdoors or in a washdown area?
No. The 10250H assembled control station is a NEMA 1 enclosure, which is general-purpose indoor protection only, in a die cast housing. It keeps fingers and falling dirt out of the internal elements, but it is not sealed against rain, hose-down, dust or corrosive atmospheres. For a loading dock, an exterior wall, or a wet process area you need a station with an outdoor or washdown rating, not this one. The actuator assembly itself carries a NEMA 3R degree of protection, but that does not change what the box as a whole is rated for.
2) Which Eaton 10250H station do I order for a simple motor start/stop?
Two of the 10250H stations come configured as START/STOP. Model 10250H5200 has a flush red arrangement, and 10250H5207 pairs a flush green extended button with red. The 5207 is the one most people want on a motor starter, since the extended green start button is easy to hit and the red stop reads correctly to an operator across the floor. The other models in the family are 1-to-3 element and 1-to-2 element stations for other control functions.
3) Will a 30.5 mm heavy-duty pushbutton fit an existing panel cutout?
The Eaton 10250H is a 30.5 mm heavy-duty type, which is the standard large-hole industrial pushbutton size, so it matches openings drilled for 30.5 mm heavy-duty operators. It will not drop into a 22 mm cutout without an adapter plate. Note that the assembled stations here are surface mounted enclosures, so for those you are mounting the box to a surface rather than pushing an operator through a panel hole.
4) How many buttons can I get in one Eaton 10250H assembled station?
Up to three. The 10250H range covers 1-to-3 element stations (models 10250H5100, 10250H5201, 10250H5300, 10250H5303 and 10250H5304) and 1-to-2 element stations (10250H5104 and 10250H5310), plus the dedicated two-button START/STOP builds. If the machine needs more than three operators in one box, you are into a larger custom enclosure rather than one of these.
5) What is the difference between the flush and extended actuator on the Eaton 10250H stations?
Actuator style changes how easy the button is to hit and how easy it is to hit by accident. 10250H5310 is supplied with a flush actuator, which sits level with the surrounding bezel and resists being bumped, so it suits a start command or a spot where an operator leans against the box. 10250H5104 uses an extended actuator, which stands proud for fast, gloved, or eyes-off operation. Most of the other models in the family ship with the standard actuator.
6) Does the Eaton 10250H control station carry a UL listing for a plant floor installation?
It is UL 505 certified and CE Marked. UL 505 is the standard applied to this station, and the CE mark covers European conformity, so it can be specified where a documented listing is required on industrial control equipment. If a submittal asks for the certification line on an operator station, those are the two to cite.
7) Do I need to buy pushbutton elements separately for the Eaton 10250H?
No, these are assembled control stations, so the enclosure, actuators and internal pushbutton elements come together as one ordered model. You pick the configuration (1-2 element, 1-3 element, or START/STOP), the actuator style and the finish, and it arrives built. What you supply on site is the mounting hardware for the surface it hangs on and the field wiring.
8) Will a die cast pushbutton station hold up on a production line where it gets knocked around?
The 10250H uses a die cast enclosure rather than plastic, which is why it is classed heavy-duty and used on machine control panels, motor stop/start stations and production line equipment. Die cast takes impact from carts, tooling and dropped parts far better than a molded box. The limit is environmental, not mechanical: it is NEMA 1, so keep it out of the weather and away from washdown.
9) Can I get legends on the Eaton 10250H buttons so operators know what they do?
Yes, the 10250H stations are offered with clear legends for operator identification, which matters when a station carries two or three elements and an operator has to pick the right one under pressure. On the START/STOP builds the color coding does a lot of that work already, with red for stop and green for start.
