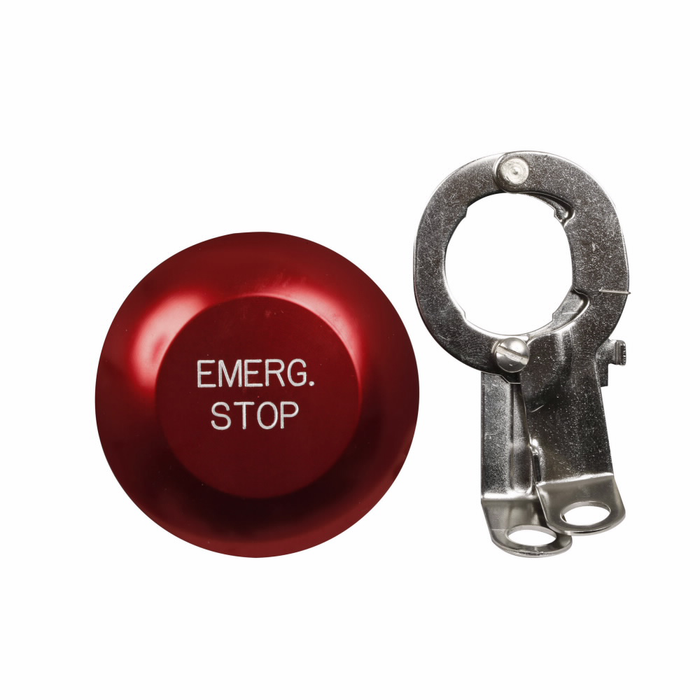

Eaton 10250T Jumbo Mushroom Head Latching Pushbutton, Red, 30.5mm

Eaton 10250T Jumbo Mushroom Head Latching Pushbutton, Red, 30.5mm

(No reviews yet) Write a Review

Model: 10250ED952

In Stock (leaves warehouse same day if ordered before 3pm ET)

$199.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton 10250T Jumbo Mushroom Head Latching Pushbutton, Red, 30.5mm

The Eaton 10250T is a heavy-duty jumbo mushroom head pushbutton operator featuring a red actuator and a 30.5 mm mounting size, engineered for latch-down, spring-loaded operation in industrial control panels. Measuring 3.4 in wide, 4.4 in deep, and 3.3 in high, this UL Listed, CE Marked operator latches down without a padlock while remaining padlockable for lockout applications. The 10250T is well suited for emergency stop and machine-shutdown applications across commercial and industrial control systems.

Key Features

  • Mounting Size: 30.5 mm cutout size for standard industrial pushbutton enclosures.
  • Jumbo Mushroom Head Actuator: Red jumbo mushroom head actuator delivers high-visibility emergency stop and shutdown actuation; not recommended for applications with UV light exposure.
  • Latch-Down, Spring-Loaded Operation: Operator latches down without a padlock and is latched by a padlockable attachment for lockout applications (padlock not included).
  • Compact Panel Footprint: 3.4 in wide x 4.4 in deep x 3.3 in high for efficient panel-space planning.
  • Catalog Type 10250T: Genuine Eaton 10250T pushbutton operator for direct cross-reference and replacement.
  • Recognized Compliance: UL Listed and CE Marked construction for code-compliant industrial control applications.

Certifications & Compliance

  • UL Listed
  • CE Marked

Technical Specifications

  • Product Type: Pushbutton
  • Type: 10250T
  • Actuator: Jumbo mushroom head
  • Actuator color: Red
  • Operating mode: Latch down, spring loaded
  • Size: 30.5 mm
  • Product Width: 3.4 in
  • Product Length/Depth: 4.4 in
  • Product Height: 3.3 in
  • Compliances: CE Marked
  • Certifications: UL Listed

Typical Applications

  • Emergency Stop Stations
  • Industrial Control Panels
  • Machine Shutdown Controls
  • Lockout/Tagout Safety Systems
  • Commercial and Industrial Electrical Installations

Why Eaton?

Eaton engineers the 10250T pushbutton to deliver dependable, code-compliant performance in demanding industrial environments. With UL Listed and CE Marked construction, a durable latch-down spring-loaded design, and a high-visibility red jumbo mushroom head, this operator is built for reliable emergency-stop performance that electrical professionals can rely on.

Manufacturer Resources

Product Specs

Product Width:
3.4 in
Operating Mode:
Latch down, spring loaded
Product Size:
30.5 mm
Product Length/Depth:
4.4 in
Compliances:
CE Marked
Product Height:
3.3 in
Product Type:
Pushbutton
Actuator:
Jumbo mushroom head
Actuator Color:
Red
Certifications:
UL Listed
Department:
Electrical
Product Color:
Red
Configuration:
Latch-Down, Spring-Loaded
Listing:
UL Listed
Standards:
CE Marked
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices
Product Length:
4.4 in
Product Weight:
0.5 lb

Eaton 10250ED952 – Frequently Asked Questions

1) Will the Eaton 10250T jumbo mushroom pushbutton fit a standard 30.5 mm panel cutout?
Yes. The 10250T operator is built for the 30.5 mm mounting size, which is the standard heavy-duty pushbutton cutout used in industrial control enclosures. If your panel is punched for 22 mm devices, this is the wrong operator for that hole.
2) Does the Eaton 10250T mushroom pushbutton stay latched down when pressed, or does it spring back?
It latches. The 10250T is a latch-down, spring-loaded operator, so pressing the jumbo mushroom head holds it in the depressed position until it is reset. That is the behavior you want on an emergency stop, where the machine must stay down after the hit rather than restarting when the operator lets go.
3) Can the Eaton 10250T red mushroom button be padlocked for lockout/tagout?
Yes. The operator latches down without a padlock and can be held in the latched position by a padlockable attachment for lockout applications. The padlock itself is not supplied, so order your LOTO locks separately.
4) Do I get contact blocks with the Eaton 10250ED952, or is it just the operator?
What you are ordering under 10250ED952 is the pushbutton operator itself, the red jumbo mushroom head unit with the 30.5 mm mounting. Contact blocks, legend plates and the enclosure are separate items on the 10250T platform, so plan the NC contacts your e-stop circuit needs as a separate line on the order.
5) Is the Eaton 10250T pushbutton UL Listed and CE marked for a panel build?
Both. The 10250T carries UL Listing and is CE Marked, which is what a panel shop or an inspector will look for on an industrial control assembly. Those are the only two approvals carried on the record for this operator.
6) How much room do I need behind the panel door for the Eaton 10250T mushroom operator?
Allow for a device measuring 3.4 in wide, 4.4 in deep and 3.3 in high. The 4.4 in depth figure is the one that matters when you are laying out a shallow enclosure or planning clearance to wireway and DIN rail behind the door.
7) Can I mount this red Eaton mushroom pushbutton outdoors in direct sunlight?
Not a good choice there. The red jumbo mushroom head actuator is not recommended for applications with UV light exposure, so keep it to indoor panels or protected locations. For a sunlit outdoor station, specify an operator rated for UV service instead.
8) Is the jumbo mushroom head the right pick for an e-stop, or should I use a standard flush button?
For emergency stop, go jumbo mushroom. The large red head is meant to be hit fast with a palm or a forearm and is visible across a machine bay, and this one latches down so the machine stays off. A flush or extended head button is for normal start/stop duty where you do not want accidental actuation. Use this operator for e-stop stations, machine shutdown, and lockout/tagout safety systems.
