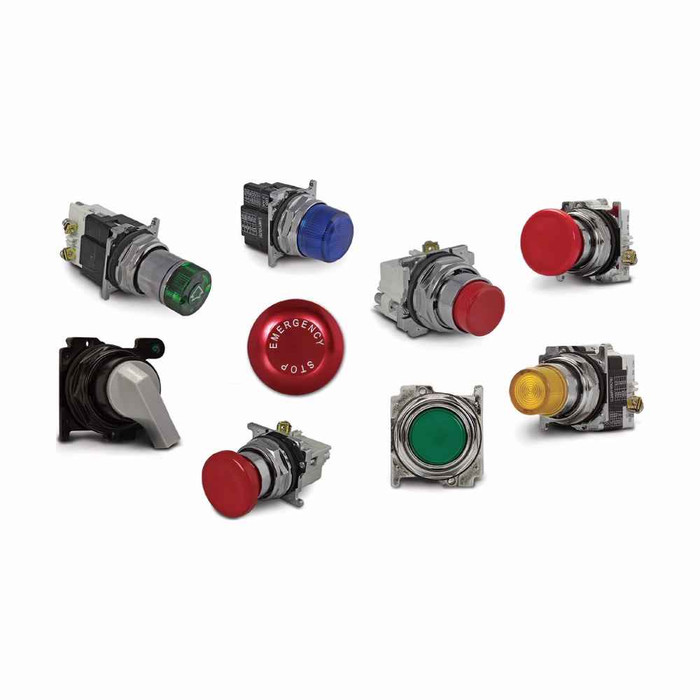

Eaton Emergency Stop Pushbutton 40mm Illuminated Two-Position Red Actuator 10250T Series NEMA 4X

Eaton Emergency Stop Pushbutton 40mm Illuminated Two-Position Red Actuator 10250T Series NEMA 4X

Professional Industrial Control and Safety Equipment

The Eaton Emergency Stop Pushbutton delivers exceptional industrial control and safety performance for critical emergency shutdown applications. This 40mm illuminated two-position pushbutton provides reliable emergency stop control designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Emergency Stop Performance

• 40mm Heavy-Duty Design - Professional-grade emergency stop pushbutton with robust construction for reliable industrial safety applications
• Illuminated Red Actuator - High-visibility red actuator with incandescent resistor light unit for clear emergency stop identification and status indication
• Two-Position Maintained Operation - Pull-maintained operating mode ensures positive emergency stop engagement until manually reset
• 1NO-1NC Contact Configuration - Versatile contact arrangement provides both normally open and normally closed contacts for comprehensive safety circuit integration

Environmental Protection

• NEMA 4X Rating - Superior environmental protection against water, dust, and corrosive conditions for demanding industrial environments
• Multiple NEMA Ratings - Certified for NEMA 3, 3R, 4, 4X, 12, and 13 applications providing versatility across various installation requirements
• UL Listed and CE Marked - Comprehensive safety certifications ensure compliance with North American and European electrical safety standards

Technical Specifications

Series: 10250T, Size: 40mm, Type: 30.5mm Heavy-Duty, Contact Configuration: 1NO-1NC, Operating Mode: Pull-maintained, Actuator: Standard Red, Light Unit: Incandescent resistor type 120 Vac/dc, Number of Positions: 2, Bus Material: Plastic, Rating: NEMA 4X, Certifications: UL Listed, Compliances: CE Marked, Dimensions: 4" L x 2" W x 2" H, Weight: 0.2 lb, Legend: EMERGENCY STOP, Illumination: Illuminated, Assembly: Factory assembled

Installation & Usage

1. Verify proper NEMA rating compatibility with installation environment and safety requirements
2. Mount pushbutton assembly in appropriate 40mm cutout following manufacturer specifications
3. Connect 1NO-1NC contacts to emergency stop safety circuit according to electrical drawings
4. Wire illumination circuit to 120 Vac/dc power source for actuator light unit operation
5. Test emergency stop function and reset operation to ensure proper maintained contact operation
6. Verify all safety circuit connections and emergency stop response before system commissioning

Professional Applications

Ideal for:

• Industrial Machinery Safety - Emergency stop controls for manufacturing equipment, conveyor systems, and automated machinery
• Process Control Systems - Critical shutdown controls for chemical processing, food production, and pharmaceutical manufacturing
• Motor Control Centers - Emergency stop integration in motor control panels and industrial control systems
• Manufacturing Equipment - Safety controls for CNC machines, packaging equipment, and assembly line systems
• Material Handling Systems - Emergency stop controls for cranes, hoists, and automated material handling equipment
• HVAC Control Systems - Emergency shutdown controls for large commercial and industrial HVAC systems
• Power Distribution Safety - Emergency isolation controls in electrical distribution and switchgear applications
• Facility Safety Systems - Building-wide emergency stop controls for critical facility systems and equipment

10250T Series Advantage

The Eaton 10250T Series represents advanced pushbutton technology with heavy-duty 30.5mm construction, superior environmental protection, and reliable maintained operation. The illuminated design with incandescent resistor light unit provides clear visual indication of emergency stop status, while the pull-maintained operation ensures positive safety engagement. Factory assembly ensures consistent quality and performance for critical safety applications.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical control and safety innovation delivers unmatched reliability for industrial emergency stop applications. With comprehensive UL and CE certifications, superior NEMA environmental ratings, and trusted performance by electricians, electrical contractors, and safety professionals worldwide, Eaton emergency stop pushbuttons provide the dependable safety control solutions that protect personnel and equipment in the most demanding industrial environments.
