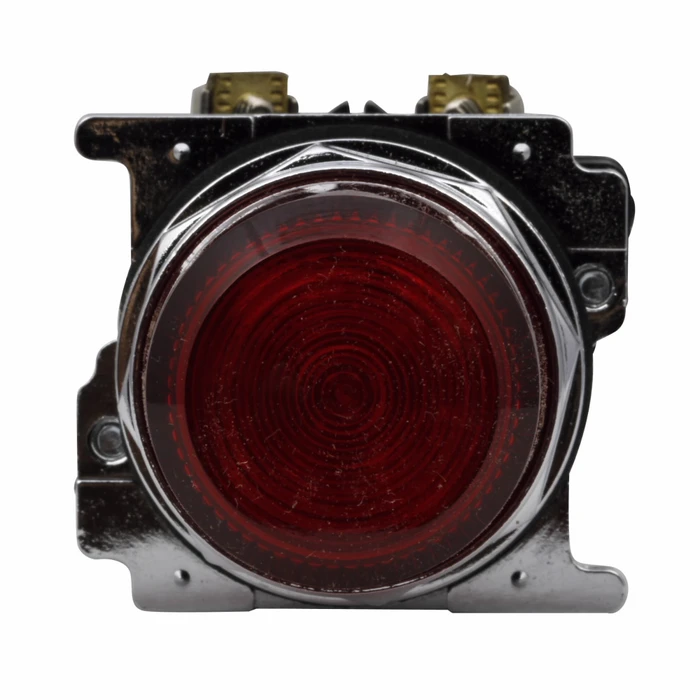

Eaton 10250T LED Indicating Light, Heavy-Duty Watertight/Oiltight, Plastic

Eaton 10250T LED Indicating Light, Heavy-Duty Watertight/Oiltight, Plastic

(No reviews yet) Write a Review

Model: 10250T181L

In Stock (leaves warehouse same day if ordered before 3pm ET)

$228.84
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton 10250T LED Indicating Light, Heavy-Duty Watertight/Oiltight, Plastic

The Eaton 10250T LED Indicating Light is a heavy-duty, watertight and oiltight pilot light built for demanding industrial control panels and enclosures. Featuring an LED lamp module, plastic lens construction, and full-voltage operation, this 10250T series device is rated NEMA 3, 3R, 4, 4X, 12, and 13, making it suitable for wash-down, outdoor, and dust/dirt-laden environments where standard indicating lights fail. Backed by CE marking and CSA certification, it delivers dependable visual signaling for professional electrical installations.

Key Features

  • LED Illumination: Full-voltage LED lamp for bright, long-lasting status indication at 120 Vac.
  • Durable Construction: Plastic lens and housing engineered for the 10250T heavy-duty series.
  • Heavy-Duty Watertight/Oiltight Type: Sealed design resists water and oil intrusion in harsh production environments.
  • Green Lens Color: Clear visual status signaling for operator awareness on panels and machinery.
  • 120 Vac Rating: Full-voltage light unit rated for direct 120 Vac connection.
  • Environmental Protection: NEMA 3, 3R, 4, 4X, 12, and 13 rated for indoor, outdoor, wash-down, and dusty-location use.
  • 30.5 mm Style: Standard 30.5 mm panel mounting profile for the 10250T series.

Certifications & Compliance

  • CE Marked
  • CSA Certified
  • NEMA 3, 3R, 4, 4X, 12, 13 Rated

Technical Specifications

  • Light unit voltage: 120 Vac
  • Lens color: Green
  • Lens material: Plastic
  • Type: Heavy-Duty Watertight/Oiltight
  • Warranty: 1 year
  • Style: 30.5 mm
  • Series: 10250T
  • Compliances: CE Marked
  • Certifications: CSA Certified

Typical Applications

  • Industrial Control Panels and Machine Enclosures
  • Wash-Down and Wet-Location Equipment
  • Outdoor Electrical Control Stations
  • Dusty and Corrosive Industrial Environments
  • Panelboard and Operator Interface Signaling

Why Eaton?

Eaton's 10250T series LED indicating lights combine heavy-duty watertight and oiltight construction with broad NEMA 3, 3R, 4, 4X, 12, and 13 environmental ratings for reliable performance in tough industrial settings. CE marking and CSA certification back the build quality, giving electrical professionals a code-compliant, dependable pilot light for panel and machinery signaling applications.

Manufacturer Resources

Product Specs

Light unit voltage:
120 Vac
Lens color:
Green
Lens material:
Plastic
Product Type:
Indicating Light
Warranty:
1 year
Product Style:
30.5 mm
Series:
10250T
Compliances:
CE Marked
Certifications:
CSA Certified
Department:
Electrical
Product Material:
Plastic
Product Color:
Green
Voltage Rating:
120V
Configuration:
Heavy-Duty Watertight/Oiltight
Standards:
CE Marked
Listing:
CSA Certified
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton 10250T181L – Frequently Asked Questions

1) Will the Eaton 10250T indicating light fit a standard 30.5 mm panel cutout?
Yes. The 10250T LED indicating light is a 30.5 mm style device, so it drops into the standard 30.5 mm hole used across the 10250T heavy-duty line of pushbuttons and pilot lights. If your panel is punched for 22 mm devices, this is the wrong body size.
2) Can I wire this Eaton pilot light directly to 120 Vac, or do I need a transformer?
Wire it straight to 120 Vac. The light unit is rated 120 Vac full voltage, so no resistor or control transformer is needed. Do not put it on a 24 V or 240 V control circuit.
3) Is this indicating light rated for outdoor and wash-down locations?
Yes. The 10250T heavy-duty watertight/oiltight construction carries NEMA 3, 3R, 4, 4X, 12 and 13 ratings, which covers rain and outdoor control stations, hose-down wash areas, and dust or oil-laden plant floors. 4X also means it holds up on corrosive duty.
4) What is the difference between the Standard and PresTest actuator versions of the Eaton 10250T green LED light?
Standard is a plain indicating light, part 10250T181L, and it only illuminates when the circuit energizes. The PresTest version, 10250T297LGP2A, lets an operator press the lens to test the LED without energizing the monitored circuit, which is what maintenance crews want when a dark light could mean either a healthy circuit or a burned-out lamp. Pick PresTest if you need lamp-test capability at the panel.
5) Is the lens on this Eaton 10250T light glass or plastic?
Plastic, in green. Plastic lenses resist impact and chipping better than glass on machine-mounted panels, which is why they are common on production equipment. If your spec calls out a glass lens for high-heat or solvent exposure, this is not the one.
6) Will a green lens work for a run indicator on my machine panel?
Green is the conventional run, ready, or power-on color on industrial control panels, and that is the only lens color this 10250T LED light comes in. For stop or fault indication you need a red lens unit from the same 10250T series instead so the panel cutout and mounting stay the same.
7) Is the Eaton 10250T LED light approved for use in Canada?
It is CSA Certified and CE Marked, so it is acceptable for Canadian installations as well as export panels built to CE requirements. That matters on institutional and OEM jobs where the whole enclosure has to carry a recognized listing.
