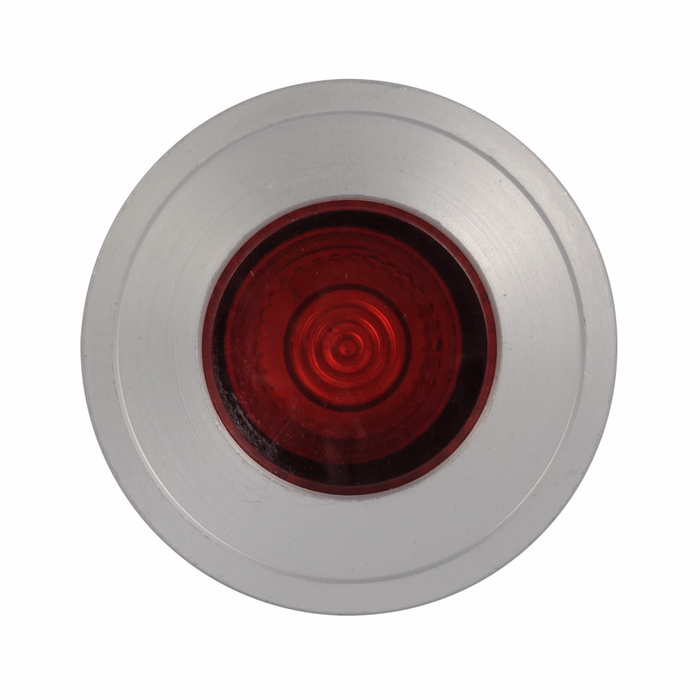

Eaton 10250T Series Illuminated Push-Pull Operator Lens, Aluminum

Eaton 10250T Series Illuminated Push-Pull Operator Lens, Aluminum

(No reviews yet) Write a Review

Model: 10250TC57

In Stock (leaves warehouse same day if ordered before 3pm ET)

$34.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton 10250T Series Illuminated Push-Pull Operator Lens, Aluminum, 30.5mm Heavy-Duty

The Eaton 10250T Series Illuminated Push-Pull Operator Lens is a heavy-duty actuator lens designed for use with illuminated push-pull operators in industrial control applications. Built with an aluminum construction and featuring a blank legend, this 30.5mm heavy-duty lens is rated Watertight/Oiltight for demanding panel environments. The lens measures 1.6 in wide by 1.6 in deep by .5 in high, and carries CE Marked compliance for use in professional electrical control systems.

Key Features

  • Compact Dimensions: 1.6 in width, 1.6 in length/depth, and .5 in height for precise fit on push-pull operator assemblies.
  • Durable Construction: Aluminum construction supports long service life in heavy-duty control panel environments.
  • 30.5mm Heavy-Duty Type: Watertight/Oiltight design for use with illuminated, push-pull operator assemblies.
  • Blank Legend: Heavy-duty lens allowing for illumination visibility without pre-printed markings.
  • Series 10250T: Part of Eaton's established 10250T series of operator interface components.
  • 1-Year Warranty: Backed by Eaton's 1 year manufacturer warranty.

Certifications & Compliance

  • CE Marked

Technical Specifications

  • Product Type: Legend Plate
  • Warranty: 1 year
  • Series: 10250T
  • Product Width: 1.6 in
  • Product Length/Depth: 1.6 in
  • Product Height: .5 in
  • Type: 30.5 mm, Heavy-Duty Watertight/Oiltight
  • Legend: Blank
  • Bus Material: Aluminum
  • Compliances: CE Marked

Typical Applications

  • Industrial Control Panels
  • Illuminated Push-Pull Operator Assemblies
  • Machine Control Interfaces
  • Watertight/Oiltight Enclosure Applications
  • Commercial and Industrial Electrical Installations

Why Eaton?

Eaton's 10250T Series operator lens delivers heavy-duty, Watertight/Oiltight performance backed by an aluminum build and CE Marked compliance. With a 1-year manufacturer warranty, this lens is engineered for reliable, code-compliant performance in professional industrial control applications.

Variant Specifications

ColorSKU
TC57 / TC59 / TC58 / TC62 (anodized)10250TC57
TC66 / TC6510250TC66

Manufacturer Resources

Product Specs

Used with:
Push-pull, illuminated
Department:
Electrical
Compliances:
CE Marked
Series:
10250T
Product Type:
Pushbutton Lens
Warranty:
1 year
Standards:
CE Marked
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices
Product Length:
1.6 in
Product Width:
1.6 in

Eaton 10250TC57 – Frequently Asked Questions

1) What does the Eaton 10250TC57 lens actually fit, and will it work on a standard push button?
It is an actuator lens for Eaton 10250T Series illuminated push-pull operators, 30.5mm heavy-duty type. It is made for the push-pull illuminated style specifically, not for a standard flush or extended push button operator. If the operator on your panel is a plain non-illuminated push button, this lens is not the replacement part.
2) What is the difference between the 10250TC57 and the 10250TC66 lens?
They are the same 10250T illuminated push-pull lens in different color groupings. Order 10250TC57 for the TC57 / TC59 / TC58 / TC62 anodized color group, and 10250TC66 for the TC66 / TC65 group. Those two part numbers are the only choices in the family.
3) I am replacing a damaged actuator on an existing Eaton 10250T station. Do I need the whole operator or just the lens?
If the operator body, contact blocks, and lamp are sound and only the actuator lens is cracked or faded, the 10250T lens is a standalone replacement part and you can leave the operator in the panel. It does not include the operator, lamp, or contact blocks, so those are ordered separately if the fault is in the switching or the light.
4) Is the 30.5mm 10250T lens rated for a washdown or oily machine shop panel?
The 10250T lens is a 30.5mm heavy-duty Watertight/Oiltight type, so it suits panels exposed to coolant mist, oil, and washdown spray on machine tools and industrial enclosures. It carries CE Marked compliance.
5) Does the Eaton 10250T push-pull lens come pre-printed with STOP or other legend text?
No text. The legend is blank, so the lens transmits the operator's illumination without pre-printed markings. If your panel drawing calls for lettering such as EMERGENCY STOP on the actuator itself, you will need a marked lens or a separate legend plate around the operator.
6) How big is the 10250T operator lens, and will it clear the devices next to it on a crowded panel?
The lens measures 1.6 in wide by 1.6 in deep by .5 in high. On a 30.5mm operator layout that 1.6 in footprint is what governs spacing between adjacent pilot lights and selector switches, so lay out center-to-center with that in mind before you drill.
7) Is the 10250T lens metal or plastic, and how does it hold up to constant operation?
Aluminum construction, anodized on the TC57 color group. That is why it holds up on machine control interfaces where operators are pushed and pulled all shift, rather than a molded plastic actuator cap.
