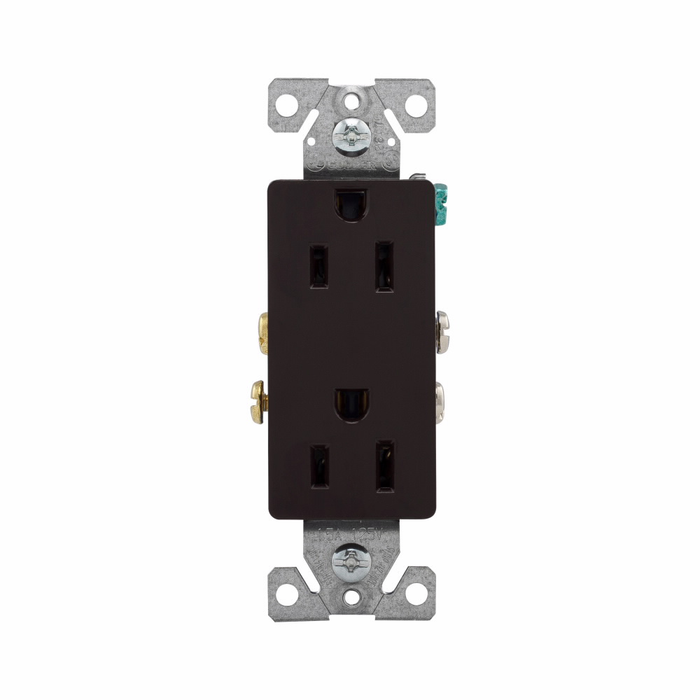

Eaton 1107 Residential Grade Duplex Receptacle, 15A, 125V, 5-15R

Eaton 1107 Residential Grade Duplex Receptacle, 15A, 125V, 5-15R

(No reviews yet) Write a Review

Model: 1107LA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$275.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Residential Grade Decorator Duplex Receptacle, 15A/125V, Thermoplastic

The Eaton Residential Grade Decorator Duplex Receptacle is built for reliable everyday performance in Commercial|Residential wiring applications. Rated 15A at 125V with a 5-15R configuration, this duplex receptacle accepts #14-10 AWG conductors and features side and push-wire termination for flexible installation. Constructed with an impact-resistant thermoplastic body and brass contacts, and available in a range of color options, it is UL Listed and RoHS Compliant for dependable, code-compliant performance.

Key Features

  • Electrical Rating: 15A, 125V rating suited for standard residential and commercial branch circuits.
  • Wire Range: Accepts #14-10 AWG conductors for compatible field wiring.
  • NEMA Configuration: 5-15R duplex configuration for standard grounded plugs.
  • Termination: Side and push-wire connections allow flexible, efficient installation.
  • Durable Construction: Impact-resistant thermoplastic housing with brass contacts for long-term durability.
  • Style & Mounting: Decorator-style, flush-mount design suited for Commercial|Residential use.
  • Finish: Available in multiple color options to suit your installation aesthetic.
  • Grade: Residential grade duplex receptacle for general-purpose outlet needs.

Certifications & Compliance

  • UL Listed
  • RoHS Compliant

Technical Specifications

  • Certifications: UL
  • Warranty: Refer to warranty document.
  • Product Width: .69 in
  • Product Length/Depth: 1.3 in
  • Product Height: 3.81 in
  • Compliances: RoHS Compliant

Typical Applications

  • Residential and Commercial Wiring Installations
  • General-Purpose Duplex Outlet Replacement
  • Standard 15A/125V Branch Circuits
  • Kitchen, Living Space, and Bedroom Outlets
  • Renovation and New Construction Projects

Why Eaton?

Eaton duplex receptacles combine impact-resistant thermoplastic construction with brass contacts to deliver dependable, long-lasting performance for everyday electrical needs. UL Listed and RoHS Compliant, this residential grade device is engineered to meet code requirements for both commercial and residential installations. Choose Eaton for consistent quality and reliable connections across your electrical projects.

Variant Specifications

ColorSKUMPN
Black / Gray1107B-BOX1107BBOX
Light Almond / White1107LA1107LA

Manufacturer Resources

Product Specs

Listing:
UL Listed
Department:
Electrical
Compliances:
RoHS Compliant
Product Length/Depth:
1.3 in
Certifications:
UL
Product Width:
.69 in
Voltage Rating:
125V
Warranty:
Refer to warranty document.
Amperage Rating:
15A
Product Height:
3.81 in
Pack size (unit):
100
Product Group:
Wiring Devices
Product Type:
Receptacle

Eaton 1107LA – Frequently Asked Questions

1) Will the Eaton 1107 receptacle work on a standard 15A household branch circuit with 14 gauge wire?
Yes. The Eaton 1107 duplex receptacle is rated 15A at 125V with a NEMA 5-15R face, and it accepts #14-10 AWG conductors, so 14 AWG on a 15A circuit lands right in range. It also takes 12 AWG if you are feeding it off a 20A circuit as part of a multi-outlet run, which is permitted for a 15A receptacle in that configuration.
2) Is a residential grade receptacle like the Eaton 1107 good enough for an apartment turn, or should I spec something heavier?
For bedrooms, living spaces and general-purpose outlets the 1107 is a residential grade device and is what most unit turns get. Where the outlet sees plugs pulled daily, vacuum cords, or commercial traffic, step up to a heavy-duty or spec grade 20A device instead, such as the Bryant 5362B heavy-duty 20A/125V duplex or the Pass & Seymour 26352W specification grade decorator duplex in white. Property managers standardizing a building often run the 1107 in living areas and the heavier device in corridors and common rooms.
3) Does the Eaton 1107 meet the tamper-resistant requirement for dwelling unit outlets?
No. The 1107 is a standard duplex receptacle and carries no tamper-resistant shutters. Current code requires TR receptacles at dwelling unit outlets, so for new residential work, use a tamper-resistant device such as the Pass & Seymour 3232TRW Trademaster tamper-resistant duplex. Keep the 1107 for non-dwelling or like-for-like replacement where TR is not being enforced.
4) Will the Eaton 1107 fit a standard single-gang box and a decorator wall plate?
It is a decorator-style flush-mount device measuring 3.81 in by 1.3 in by .69 in, so it takes a decorator (rectangular opening) wall plate, not a duplex-style plate with two round openings. Mounting is standard single-gang strap spacing, so it drops into an existing box in place of another decorator device. Order plates separately, none are included.
5) Does the Eaton 1107 provide GFCI protection for a kitchen or bathroom outlet?
No. The 1107 is a plain duplex receptacle with no ground-fault protection built in. It can sit downstream of a GFCI device or GFCI breaker where code allows, but if the outlet itself has to be the protection point, use a GFCI receptacle such as the Pass & Seymour 2097HGI hospital grade 20A self-test GFCI.
6) Can I use the Eaton 1107 for a 20A appliance receptacle or a 277V motor circuit?
No to both. The 1107 is 15A at 125V with a 5-15R face, so it will not accept a 20A T-slot plug and it is nowhere near a 277V rating. For a 20A/125V outlet look at the Bryant 5362B heavy-duty duplex, and for 277V motor-duty work the Bryant 430R9W 2-pole 3-wire 277V motor-duty receptacle is the right family.
7) Can I use the Eaton 1107 in a hazardous classified area?
No. The Eaton 1107 is a flush-mount thermoplastic duplex for standard branch circuits in general-purpose locations. For classified areas, the Appleton FSQC Series is an interlocked explosionproof receptacle and the Appleton U-Line ECS is a factory-sealed 3-pole plug and receptacle set covering 15 and 20 amp. Those are entirely different enclosure and wiring systems, not a drop-in swap for a device box.
8) What should I use instead of the Eaton 1107 receptacle on a 20A branch circuit?
The Eaton 1107 is rated 15A at 125V with a 5-15R configuration, so it is not the device for a 20A-rated outlet. For 20A at 125V, the Bryant 5362B is a heavy-duty duplex receptacle, and the Pass & Seymour 26352W is a 20A 125V specification grade decorator duplex in white. Both keep the standard duplex form factor while moving up to the 20A rating.
9) The Eaton 1107 is residential grade - what is the equivalent in a heavier grade for a high-traffic commercial space?
The Eaton 1107 is a residential grade duplex receptacle intended for general-purpose outlets. Where the opening sees heavier plug cycling, the Bryant 5362B and Bryant 5362BI are heavy-duty 20A/125V duplex receptacles, and the Pass & Seymour 26352W is a specification grade decorator duplex. The grade change also brings the amperage rating up to 20A on all three, so confirm the branch circuit before swapping.
10) Can I back-wire the Eaton 1107 or do I have to use the side screws?
Both are on the device. The 1107 offers side terminals and push-wire termination, so you can loop under the screws or push straight in on the back, whichever is faster for the box you are in. On a rework job with short conductors in a crowded box, the push-wire holes save you having to re-strip and form a hook.
11) How many Eaton 1107 receptacles come in a box?
The 1107 is packed 100 per box. That is a contractor quantity, sized for a multi-unit rough-in or a full building device changeout rather than a single outlet repair.
12) Is the Eaton 1107 UL Listed and RoHS compliant for a spec submittal?
Yes on both. The 1107 is UL Listed and RoHS Compliant, which covers the two lines most institutional and government submittals ask for on a general-purpose wiring device.
13) I need a decorator-style receptacle to match other devices - how does the Eaton 1107 compare to the Pass & Seymour 26352W?
Both are decorator-style duplex receptacles. The Eaton 1107 is residential grade, rated 15A at 125V, accepts #14-10 AWG with side and push-wire termination, and comes in a black/gray and a light almond/white color option. The Pass & Seymour 26352W is a heavy-duty specification grade decorator duplex rated 20A at 125V in white. Choose on circuit rating and the grade your spec calls for.
14) What colors does the Eaton 1107 duplex receptacle come in?
Two color options: black/gray (MPN 1107BBOX) and light almond/white (MPN 1107LA). If you are matching existing devices across a building, pick the one that lines up with the plates already installed, since mixing almond and white on adjacent openings is the thing tenants notice first.
