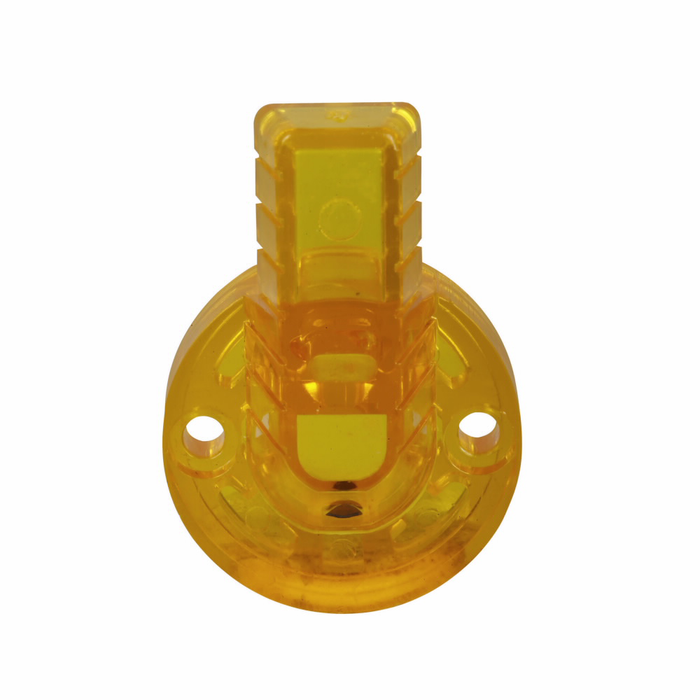

Eaton 30.5 mm Heavy-Duty Watertight/Oiltight Lever
The Eaton 30.5 mm Heavy-Duty Watertight/Oiltight Lever is a replacement operator actuator engineered for use in Eaton's 10250T Series pilot device line. Designed for demanding industrial environments, this Lever features Heavy-Duty Watertight/Oiltight construction and is available in a range of actuator colors and configurations to match your application. UL Listed and CE Marked, it delivers dependable, code-ready performance for control panel and machine interface applications requiring reliable manual switch actuation.
Key Features
- Trade Size: 30.5 mm mounting size for compatibility with standard 30.5 mm operator interface panel cutouts.
- Heavy-Duty Watertight/Oiltight Type: Sealed construction resists moisture and oil intrusion in harsh industrial settings.
- Multiple Configurations: Offered in a variety of operator configurations to enable manual switch operation suited to the specific application.
- Custom Labeling: Legend options allow labeling to match the specific application.
- Actuator Color Options: Available in multiple actuator colors for clear visual identification on the panel.
- Compact Dimensions: Sized for a precise fit in tight panel layouts.
- Series: 10250T, part of Eaton's established Logic Control, Operator Interface and Connectivity Solutions line.
Certifications & Compliance
- UL Listed
- CE Marked
Technical Specifications
- Warranty: 1 year
- Department: Electrical
- Product category: Lever
- Series: 10250T
- Type: 30.5 mm, Heavy-Duty Watertight/Oiltight
- Compliances: CE Marked
- Certifications: UL Listed
Typical Applications
- Industrial Control Panel Assemblies
- Machine Interface and Operator Stations
- Manufacturing Equipment Controls
- Switch Replacement and Retrofit
- Heavy-Duty Watertight/Oiltight Environments
Why Eaton?
Eaton's 10250T Series levers are built for heavy-duty industrial reliability, combining Watertight/Oiltight sealed construction with UL Listed and CE Marked compliance. This makes them a dependable choice for professionals specifying code-compliant switch actuators in control panel and machine interface applications.
Variant Specifications
| Color | Configuration | SKU |
|---|---|---|
| TFA / TFW | Standard | 10250TFA |
| TLB / TLY / TFR / TFM / TLL | TFM | 10250TFM |
| TLB / TLY / TFR / TFM / TLL | TFR | 10250TFR |
| TLB / TLY / TFR / TFM / TLL | TLB | 10250TLB |
| TLR / TLO / TLG | TLG | 10250TLG |
| TLB / TLY / TFR / TFM / TLL | TLL | 10250TLL |
| TLR / TLO / TLG | TLO | 10250TLO |
| TLR / TLO / TLG | TLR | 10250TLR |
| TLB / TLY / TFR / TFM / TLL | TLY | 10250TLY |
Manufacturer Resources
Spec Sheet
Product Specs
- Department:
- Electrical
- Series:
- 10250T
- Compliances:
- CE Marked
- Product Type:
- Lever
- Product category:
- Lever
- Warranty:
- 1 year
- Standards:
- CE Marked
- Product Group:
- Motor Control & Automation
- Product Subgroup:
- Push Buttons & Pilot Devices
Eaton 10250TFA – Frequently Asked Questions
1) Will an Eaton 10250T lever operator fit a standard 30.5 mm panel cutout?
Yes. The 10250T heavy-duty watertight/oiltight lever is built for the standard 30.5 mm operator interface cutout, so it drops into an existing 30.5 mm hole in a control panel or pushbutton enclosure without any rework of the opening.
2) Can I use this lever in a washdown or machine area where oil and coolant get on the panel?
That is what it is built for. The 10250T lever uses heavy-duty watertight/oiltight sealed construction that resists moisture and oil intrusion, which is why it shows up on manufacturing equipment controls and machine operator stations rather than in dry office-grade panels.
3) Is the Eaton 10250T lever a complete switch or just the actuator?
It is the operator actuator only. The lever is the manual operating head for Eaton's 10250T pilot device line, and it mounts to the panel to drive the switch mechanism behind it. If you are building a station from scratch you still need the matching 10250T contact block and mounting hardware; if you are replacing a broken handle on an existing 10250T device, this is the part that changes.
4) Which Eaton 10250T lever part number do I order, and what do the suffixes mean?
Order by the configuration code in the part number. The orderable levers are 10250TFA, 10250TFM, 10250TFR, 10250TLB, 10250TLG, 10250TLL, 10250TLO, 10250TLR and 10250TLY. The suffix identifies the specific operator configuration and actuator color, so match it to what is on the panel legend plate or to the handle you are replacing rather than ordering by description alone.
5) I'm replacing a broken handle on an old Eaton/Cutler-Hammer 10250T selector station. Does this work?
Yes, provided the existing device is a 30.5 mm 10250T unit. These levers are sold as replacement operators for that series, so a straight handle swap on an existing 10250T station is one of the stated uses. Match the configuration suffix to the original so the operating positions and color stay the same.
6) Is the Eaton 10250T lever UL Listed and CE Marked for a panel that has to pass inspection?
Both. The 10250T heavy-duty watertight/oiltight lever is UL Listed and CE Marked, which is usually what a panel shop or plant electrician needs on file when the assembly is inspected or shipped into a CE market.
7) Can I get the lever in different colors so operators can tell functions apart on the panel?
Yes, color is part of how you order it. The 10250T levers come in several actuator colors grouped by part number, and the catalog also allows legend labeling so the operator function can be marked on the panel. On a station with several levers, that color and legend combination is how an operator picks the right one without reading fine print.
