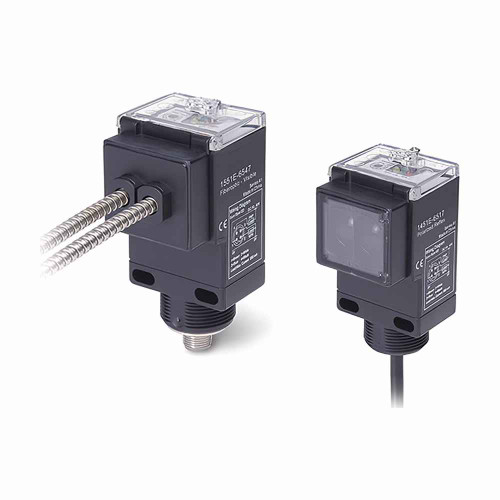

Eaton 50 Series Photoelectric Sensor, Right Angle, Sensor distance: Depends on the fiberoptic cables used, Body: Noryl, Lens: Nylon encl, Depends on Output Device max AC/DC, 6.6 Ft. (2m) Cable, 90-132 Vac input, Fiberoptic, Infrared
Manufacturer Resources
Product Specs
- Cable Type:
- Polyvinyl Chloride (PVC)
- Catalog Notes:
- Glass fiber optic cables not included
- Certifications:
- CSA Certified
- Compliances:
- Contact Manufacturer
- Connection:
- 6.6 ft (2 m) cable
- Contact Configuration:
- Depends on output device
- Contact Rating:
- Depends on Output Device
- Cord Length:
- 72 ft
- Enclosure Material:
- Body: noryl
- Environmental Rating:
- NEMA 1, NEMA 3, NEMA 4, NEMA 12, NEMA 13
- Input Voltage:
- 90-132 Vac
- Led Indicator:
- Output status: red
- Maximum Ac Current:
- Depends on output device
- Maximum Dc Current:
- Depends on output device
- Operating Mode:
- Fiber-optic
- Operating Temperature Max:
- 158 °F
- Operating Temperature Min:
- -40 °F
- Product Height:
- 3.19 in
- Product Length Depth:
- 1.64 in
- Product Weight:
- .5125 lb
- Product Width:
- 1.83 in
- Sensor Type:
- Fiberoptic
- Switch Type:
- Photoelectric
