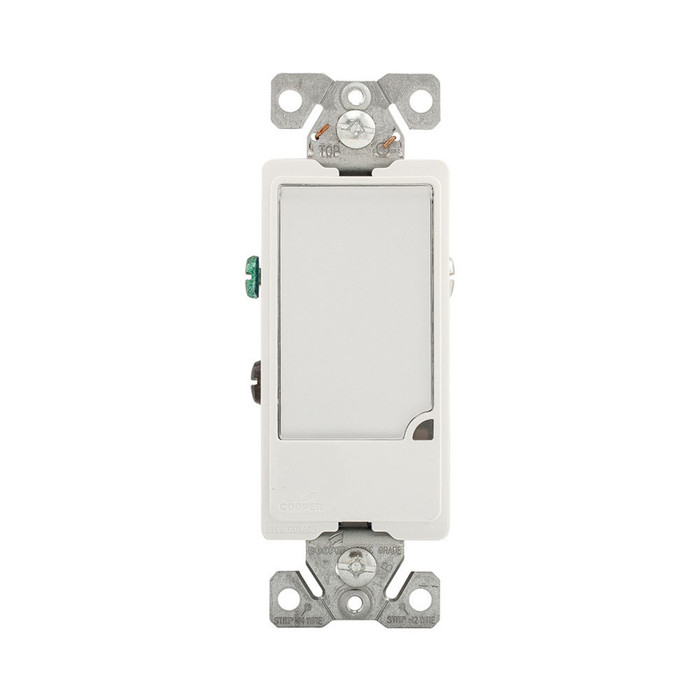

Eaton 7737W-K-L Full LED Wallbox Dimmable Dimmer Switch
The Eaton 7737W-K-L is a full LED wallbox dimmable dimmer switch engineered for professional electricians and facility teams who need reliable in-wall dimming control for LED lighting loads. Designed to install into a standard wallbox in place of a conventional switch, this Eaton dimmer is built specifically to work with dimmable LED fixtures and lamps, giving installers a straightforward way to add adjustable lighting control to residential and commercial spaces. As part of Eaton's wiring device lineup, the 7737W-K-L reflects the brand's focus on dependable, code-compliant electrical components that professionals can specify with confidence.
Key Features
- Full LED Dimming: Purpose-built for full-range dimming of compatible LED lighting loads, delivering smooth, adjustable light levels.
- Wallbox Mount: Installs into a standard electrical wallbox, allowing straightforward retrofit or new-construction placement in place of a standard switch.
- Eaton Wiring Device Quality: Manufactured by Eaton, a recognized electrical brand supplying wiring devices for residential and commercial installations.
- Dimmable Control: Enables end users to adjust lighting intensity for comfort, ambiance, and energy management in spaces using LED lighting.
Technical Specifications
- Refer to manufacturer documentation for complete technical specifications.
Typical Applications
- Residential Lighting Control Retrofits
- Commercial LED Lighting Installations
- New Construction Wiring Device Installations
- Rooms Requiring Adjustable LED Light Levels
Why Eaton?
Eaton supplies wiring devices designed for dependable performance in everyday electrical installations. The 7737W-K-L wallbox dimmer is built to give installers a dedicated, purpose-made solution for dimming LED lighting loads, supporting reliable, code-compliant electrical work on residential and commercial projects.
Manufacturer Resources
Product Specs
- list_batch:
- EAT-20260929
- Product Type:
- Dimmer Switch
- Configuration:
- Wallbox Dimmer
- Dimmable:
- Yes
- Department:
- Electrical
- Product Subgroup:
- Dimmer Switches
- Product Group:
- Wiring Devices
Eaton 7737W-K-L – Frequently Asked Questions
1) Will the Eaton 7737W-K-L dimmer work with dimmable LED fixtures, or is it meant for incandescent?
The 7737W-K-L is built specifically for full-range dimming of compatible dimmable LED lamps and fixtures. If your lamps are not marked dimmable, no dimmer will control them properly, so confirm the lamp itself is a dimmable type before swapping the switch.
2) Can I put this Eaton dimmer in the existing switch box, or does it need a special enclosure?
It mounts in a standard electrical wallbox, in place of a conventional toggle switch, so it suits both retrofit work and new construction. Box depth is the usual practical limit with any in-wall dimmer, since the body is deeper than the switch you are removing.
3) I need a dimmer for a 3-way circuit with two switch locations. What are my options?
For a confirmed single pole / 3-way device, the Pass and Seymour TSDCL303P toggle slide dimmer is rated single pole/3-way at 300W for CFL/LED loads, and the Leviton IPE04-1LZ IllumaTech is listed as 1-pole/3-way. Those are the ones whose 3-way capability is on record.
4) I have a mix of LED and older incandescent fixtures in the building. Can I standardize on one dimmer?
Not on the 7737W-K-L. It is purpose-built for LED loads, so it is the wrong tool for a building still running legacy incandescent cans. For higher-wattage legacy loads, the Pass and Seymour R600-PWV rotary preset dimmer is rated 660W. Where the fixtures are CFL or LED, the Pass and Seymour TSDCL303P is rated 300W.
5) What is the closest alternative to the Eaton 7737W-K-L for dimming LED and CFL loads from a standard wallbox?
The Pass & Seymour TSDCL303P toggle slide dimmer is the nearest match in purpose. It is rated for CFL/LED loads at 300W and is a single pole/3-way device, so it covers LED dimming the same way the Eaton 7737W-K-L does as a wallbox LED dimmer. The difference is the operator: the TSDCL303P uses a toggle with a slide beside it, and Pass & Seymour calls it spec grade.
6) I need a dimmer for low voltage lighting instead of LED lamps - what should I use in place of the Eaton 7737W-K-L?
Use the Leviton IPE04-1LZ IllumaTech Decora electronic low voltage slide dimmer. It is built for electronic low voltage loads, such as electronic transformers feeding low voltage fixtures, and is a 1-pole/3-way device in white. The Eaton 7737W-K-L is intended for dimmable LED lighting loads, so for an ELV transformer circuit the Leviton is the right control.
7) What part number should I order for the Eaton full LED wallbox dimmer?
Order Eaton 7737W-K-L. That is the single model on the item, so there is no finish or pole option to specify at the order stage.
8) Is the Eaton 7737W-K-L a slide dimmer or a rotary dimmer?
Eaton builds the 7737W-K-L as a full LED wallbox dimmer for in-wall LED dimming control. If the user interface style is what drives your selection, the comparable options differ clearly: Leviton's IPE04-1LZ IllumaTech is a Decora slide dimmer, Pass and Seymour's R600-PWV is a rotary preset dimmer, and Pass and Seymour's TSDCL303P is a toggle-with-slide design.
9) Is the Eaton 7737W-K-L suitable for commercial jobs or only residential?
Both. Eaton lists it for residential lighting control retrofits, commercial LED lighting installations, and new-construction wiring device work, anywhere a room needs adjustable LED light levels. If your spec calls out a spec grade device, the Pass and Seymour TSDCL303P is the one in the comparable group carrying a stated Spec Grade designation.
10) Is there a simpler rotary knob dimmer I can use rather than the Eaton 7737W-K-L?
Yes - the Pass & Seymour R Series rotary preset dimmer in white is a knob-operated preset device rated 660W. It gives maintenance staff a single turn-and-push control instead of a slide. Confirm the lamps on the circuit suit it, since the Eaton 7737W-K-L is the device purpose-built for dimmable LED loads.
11) My LED fixture load is more than 300W - which dimmer handles that?
Of the comparable rotary and slide dimmers, the Pass & Seymour R Series preset dimmer carries the highest stated rating at 660W, versus 300W on the Pass & Seymour TSDCL303P CFL/LED toggle slide dimmer. Verify the fixture manufacturer's dimmer compatibility list before committing, because LED driver loads are derated differently from incandescent wattage.
12) Which of these dimmers will work in a three-way setup with a second switch?
The Leviton IPE04-1LZ is a 1-pole/3-way slide dimmer and the Pass & Seymour TSDCL303P is a single pole/3-way toggle slide dimmer, so either can serve as the dimming end of a three-way pair. Confirm the switch leg wiring in the box, and note that the companion location must be a standard three-way switch, not a second dimmer.
13) Will a Decora-style dimmer match the plate openings I already have if I switch from the Eaton 7737W-K-L?
The Leviton IPE04-1LZ is part of the Decora IllumaTech series, which uses the rectangular Decora opening, so it needs a Decora style wallplate rather than a toggle-opening plate. The Pass & Seymour TSDCL303P is a toggle slide design and takes a toggle-opening plate. All three mount in a standard wallbox like the Eaton 7737W-K-L, so when standardizing a building the plate opening, not the box, is what you need to match.
14) Will the Eaton 7737W-K-L fit a Decora style wall plate?
Eaton specifies the 7737W-K-L as a full LED wallbox dimmer without a stated plate style, so match the plate to the device opening you see on the hardware. If a Decora opening is a fixed requirement on your job, the Leviton IPE04-1LZ IllumaTech is specifically a Decora series device.
