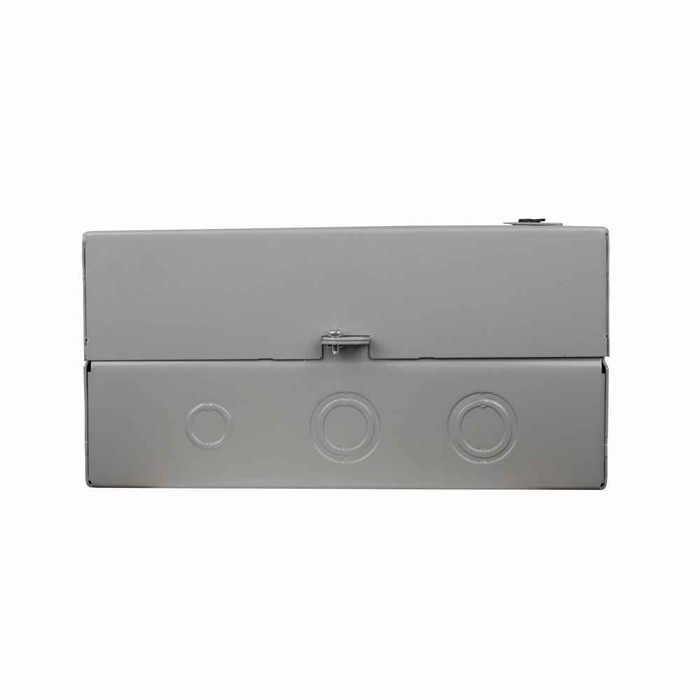

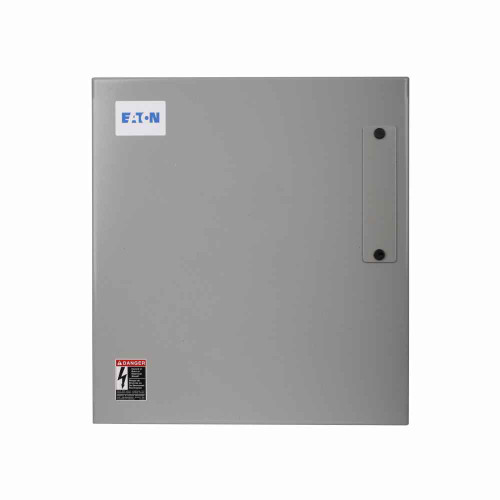

Eaton A202 magnetically held lighting contactor, 30 A, 110 V/50 Hz, 120 V/60 Hz, 30 A, NEMA 1, Painted steel, 45 mm, 6-pole, A202 Series, Control wiring and two 250 V fuses in holder, Non-combo mechanically held and magnetically latched
Manufacturer Resources
Product Specs
- Amperage Rating:
- 30A
- Catalog Notes:
- When using three-position selector switch, mod C20 must also be used (ECL04, ECL13, ECL15). Ampere rating is based on a maximum load voltage of 480V for tungsten lamp applications and 600V for ballast or mercury vapor type applications
- Certifications:
- cUL Listed
- Coil Voltage:
- 110-120 Vac, 50/60 Hz
- Contact Rating:
- 30 A
- Enclosure:
- NEMA 1
- Enclosure Material:
- Painted steel
- Frame Size:
- 45 mm
- Number Of Poles:
- Six-pole
- Operation:
- Mechanically held, magnetically latched
- Product Height:
- 14.39 in
- Product Length Depth:
- 12.01 in
- Product Weight:
- 18 lb
- Product Width:
- 7.51 in
- Series:
- A202
- Special Features:
- Control wiring and two 250 V fuses in holder
- Type:
- Non-combination mechanically held and magnetically latched
- Product Group:
- Electrical
