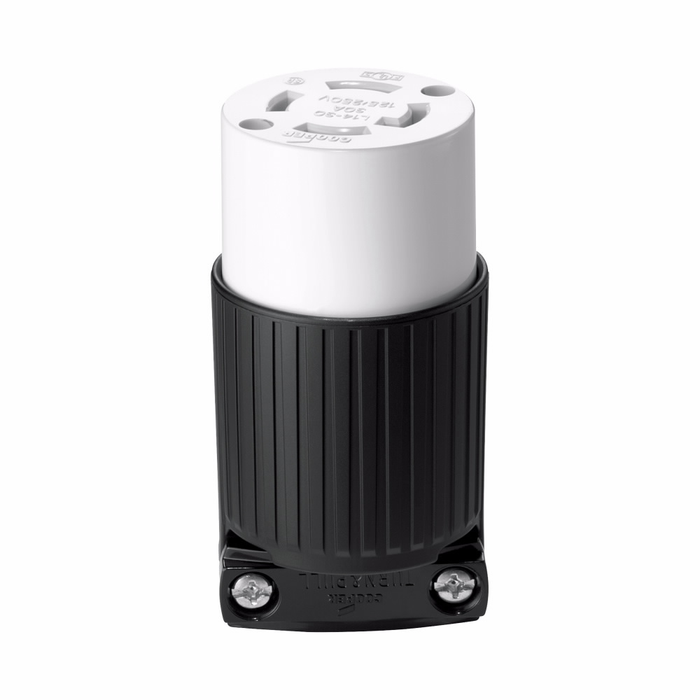

Eaton Arrow Hart L1430C Ultra Grip Locking Connector, L14-30, 3-Pole 4-Wire

Eaton Arrow Hart L1430C Ultra Grip Locking Connector, L14-30, 3-Pole 4-Wire

(No reviews yet) Write a Review

Model: EATL1430C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$32.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
"

Eaton Arrow Hart L1430C Ultra Grip Locking Connector, L14-30, 3-Pole 4-Wire, 30A

The Eaton Arrow Hart L1430C is an industrial-grade ultra grip locking connector engineered for demanding power distribution applications where a secure, vibration-resistant plug connection is required. Built to the L14-30 configuration, this three-pole, four-wire device is rated 30A at 125/250V and accepts #18-10 AWG conductors via convenient back wiring terminals. Molded from durable nylon in a black and white color scheme, the L1430C delivers the rugged construction and dependable performance expected of Eaton's Arrow Hart industrial line, making it well suited for generators, portable power equipment, and other heavy-duty electrical connections.

Key Features

  • Ultra Grip Design: Enhanced grip housing provides a firm hold and secure cable retention for repeated plugging and unplugging in industrial environments.
  • Locking Configuration: L14-30 locking blade pattern prevents accidental disconnection, ensuring a stable, continuous power connection.
  • Three-Pole, Four-Wire Construction: Delivers reliable grounded power distribution for equipment requiring a dedicated neutral and ground path.
  • 30A, 125/250V Rating: Industrial-grade amperage and voltage rating supports demanding power loads common in generator and portable equipment applications.
  • Wire Range: Accepts #18-10 AWG conductors, offering flexibility for a range of cable gauges.
  • Back Wiring Terminals: Simplifies field termination and speeds up installation compared to standard side-wiring methods.
  • Durable Nylon Housing: Molded nylon construction in black and white resists impact and wear in rugged industrial settings.

Technical Specifications

  • Wire Range: #18-10 AWG
  • Amperage: 30A
  • Voltage: 125/250V
  • Configuration: L14-30, Three-Pole, Four-Wire
  • Wiring Method: Back Wiring
  • Color: Black, White
  • Material: Nylon
  • Series: Ultra Grip

Typical Applications

  • Portable Generator Power Connections
  • Industrial and Commercial Power Distribution
  • Temporary Power Setups and Job Sites
  • Equipment Requiring 30A, 125/250V Locking Connections
  • Heavy-Duty Cable Assemblies

Why Eaton?

Eaton's Arrow Hart Ultra Grip line is built for the rigors of industrial power distribution, combining a durable nylon housing with a secure L14-30 locking configuration to keep connections in place under demanding conditions. The L1430C's 30A, 125/250V rating and flexible #18-10 AWG wire range make it a dependable choice for professionals who need a rugged, code-compliant locking connector they can count on job after job.

"

Manufacturer Resources

Product Specs

list_batch:
EAT-20260924
Product Type:
Locking Connector
Voltage Rating:
125/250V
Amperage Rating:
30A
Configuration:
Three-Pole, Four-Wire
Connection Type:
Back Wiring
Department:
Electrical
Product Subgroup:
Plugs & Connectors
Product Material:
Nylon
Product Color:
Black, White
Product Group:
Wiring Devices
Product Width:
4.25 in
Product Length:
6.75 in
Product Weight:
1.025 lb
Product Height:
4 in
Allowable Wire Size:
#18-10 AWG
Number Of Poles:
Three-pole

Eaton EATL1430C – Frequently Asked Questions

1) What wire gauge can I terminate in the Eaton L1430C locking connector?
It takes #18 through #10 AWG conductors. For a 30A circuit you will normally be landing 10 AWG, which is the top of that range, so 10/4 SOOW or similar cord terminates without trouble. Smaller gauges are accepted for lighter cable assemblies.
2) Is the Eaton L1430C a receptacle or a cord connector?
It is a connector, the female cord-end device that terminates on flexible cord and mates with an L14-30 plug or generator outlet. It is not a flush-mount receptacle and it is not the male plug, so if you are building a cord set you need the matching plug for the other end.
3) I only need 120V 30A on a generator cord - what should I use instead of the L1430C?
For a single-voltage 120V circuit, the Leviton 2313 is the connector to look at: it is an industrial grade 3-wire, 2-pole locking connector rated 125V 30A in the NEMA L5-30 configuration. The Eaton L1430C is a three-pole, four-wire device at 125/250V, which carries two hot legs plus neutral and ground for 120/240V loads. The two blade patterns will not mate, so match the connector to the inlet on the equipment.
4) What is the closest equivalent to the Eaton L1430C locking connector from another brand?
The Leviton 2413 is the nearest match in a different brand: it is an industrial locking connector in a 4-wire, 3-pole configuration rated 125/250V, the same pole and wire count and the same voltage class as the Eaton Arrow Hart L1430C, which is a three-pole, four-wire device rated 30A at 125/250V. Confirm the blade pattern you need is L14-30 before ordering either.
5) How does the L1430C wire up, side screws or back wiring?
Back wiring. Conductors land in rear terminals rather than wrapping around side screws, which makes assembly in the clamshell faster and keeps the copper from splaying inside the housing. It is the usual arrangement on cord-end work where you are dressing four conductors into a small space.
6) Is the L1430C tough enough for job-site temporary power and repeated plugging?
Housing is molded nylon in black and white, from Eaton's Arrow Hart Ultra Grip industrial line, with a grip body built for repeated connect and disconnect cycles. The twist-lock blades hold the mating plug under vibration, which is the point of using a locking connector on portable generators and temp power instead of a straight-blade device.
7) What are my other options if I need a different NEMA locking configuration than L14-30?
Staying with 3-pole 4-wire 125/250V, the Leviton 2413 industrial locking connector is the same electrical class in another brand. If your load is 4-pole 5-wire, look at the Leviton 2323, 20A. For non-metallic twist-lock bodies across a range of NEMA patterns, Bryant's 7 Series (71020NC) and 705 Series cover other configurations. Match the NEMA letter-number on the device you are plugging into, not just the amperage.
8) How do Bryant locking connectors compare to the Eaton Arrow Hart Ultra Grip L1430C?
Bryant offers locking connectors in two lines worth knowing: the 71020NC from the 7 Series, built with a non-metallic housing in NEMA locking configurations, and the 705 Series connector covering NEMA twist-lock configurations. The Eaton L1430C comes from the Arrow Hart Ultra Grip line with a nylon housing and a fixed L14-30 three-pole, four-wire pattern rated 30A at 125/250V. With the Bryant parts you select the configuration, so verify it is L14-30 if you are replacing an L1430C.
9) What is the exact part number to order the Eaton L14-30 Ultra Grip connector?
Eaton Arrow Hart L1430C. That single model covers the whole offering here, 30A, 125/250V, 3-pole 4-wire, so there are no finish or amperage variants to pick between when you order.
10) What other locking connector comes in the same black and white color as the Eaton L1430C?
The Leviton 2423 is an industrial grade locking connector supplied in black and white, matching the black and white nylon housing of the Eaton Arrow Hart L1430C. If you are standardizing the look of cord ends across a fleet of portable equipment, confirm the NEMA configuration on each before mixing brands.
