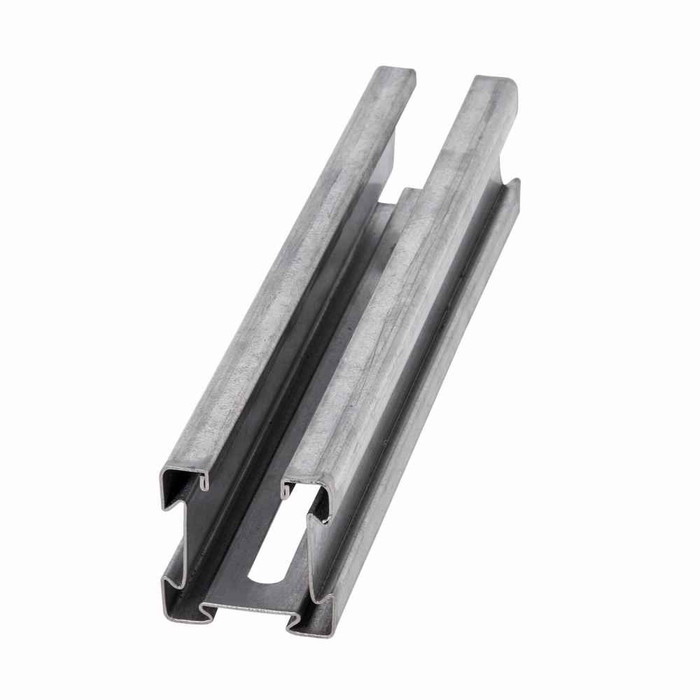

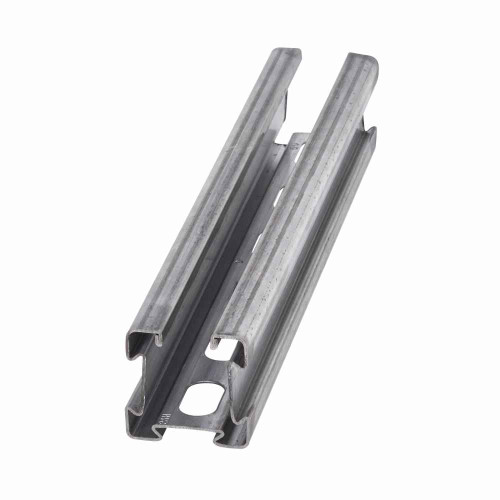

Eaton B-Line series 4Dimension strut channel
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Channel Type:
- 4D22
- Hole Pattern:
- S
- Material Gauge:
- 18 Gauge
- Product Height:
- 2.12 IN
- Product Length Depth:
- 120 IN
- Product Weight:
- 16.03 LB
- Product Width:
- 2.12 IN
- Department:
- Electrical
- Product Finish:
- Plain
- Product Material:
- Steel
- Product Length:
- 120 in
B-LINE 4D22S-120PLN – Frequently Asked Questions
1) Is the 4D22S strut channel solid back or slotted?
It is the S hole pattern, which is the slotted back version of the 4D22 channel rather than a plain solid back. The slots let you bolt the channel to structure or to other channel anywhere along the run without drilling on site.
2) Does the plain finish on this B-Line strut channel mean it's bare steel?
Yes. The 4D22S-120PLN is steel with a Plain finish, meaning uncoated mill steel with no galvanizing or paint. Use it for dry indoor work, or in areas where it will be painted after install. For damp, exterior, or corrosive locations you want a pre-galvanized, hot-dip, or stainless channel instead.
3) Will standard strut nuts and fittings fit the B-Line 4D22 channel?
The 4D22 is the 4Dimension series profile from Eaton B-Line, not the classic single-channel 1-5/8 inch section, so match your nuts, clamps, and fittings to the 4Dimension system. Ordering generic 1-5/8 strut hardware and assuming it drops in is the usual mistake on this part.
4) What gauge is the B-Line 4Dimension 4D22 strut channel?
18 gauge steel. That is the lighter-duty end of the strut range, which suits supporting conduit runs, small pipe, cable tray, and light equipment. For heavy trapeze loads or long unsupported spans, step up to a heavier gauge channel.
5) What is the exact part number to order this Eaton strut channel?
Order it as B-Line 4D22S-120PLN: 4D22 channel, S slotted hole pattern, 120 inch length, PLN plain finish. That single manufacturer part number covers the whole stick.
6) Is the 4D22S strut channel square on both faces, or is one side deeper?
It is a square 2.12 by 2.12 inch section, so the channel presents the same depth whichever way you orient it. That matters when you are stacking or ganging runs and want consistent standoff off the wall or deck.
