Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .105 IN
- Product Length Depth:
- 2.79 IN
- Product Weight:
- .19 LB
- Product Width:
- 1.25 IN
- Special Features:
- Include combination recess hex head machine screw
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Universal pipe clamp
- Product Details:
- Universal pipe clamp
- Product Material:
- Steel
B-LINE 4D2004ZN – Frequently Asked Questions
1) What is the B-Line 4D2004ZN and what is it used for?

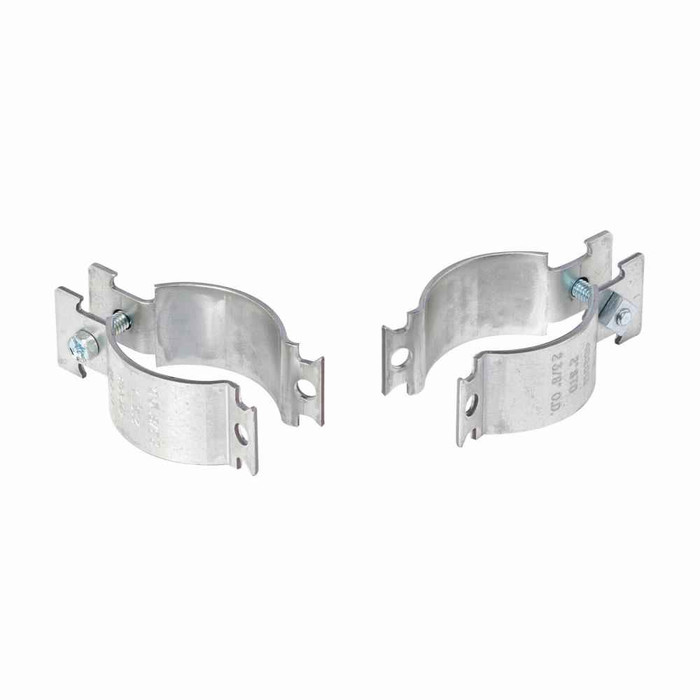

The 4D2004ZN is a universal pipe clamp from Eaton's B-Line 4Dimension strut fitting line. It mounts to strut channel to support a run of pipe or conduit. The body is steel, and the clamp ships with a combination recess hex head machine screw so you have the fastener that secures it.
2) Does the B-Line 4D2004ZN pipe clamp come with the mounting screw, or do I need to order hardware separately?
The screw is in the box. Each 4D2004ZN includes a combination recess hex head machine screw, so it can be driven with either a hex driver or a recess bit, whichever is faster on the lift. You still supply the strut channel and any channel nut your mounting method calls for.
3) What size is the B-Line 4D2004ZN clamp and how much does one weigh?
Published dimensions are 2.79 in, 1.25 in, and .105 in, the last being the material thickness of the steel. Each piece weighs .19 lb, which is useful when you are totalling hanger load on a long conduit run or figuring shipping on a few hundred of them.
4) Is the B-Line 4D2004ZN clamp steel or stainless?
Steel. It is a plain steel clamp, not stainless, so for wash-down areas, coastal exposure, or corrosive process environments you want a stainless or higher-grade coated fitting instead.
5) Is the B-Line 4D2004ZN a strut fitting or a standalone pipe hanger?
It is a strut fitting. The 4D2004ZN belongs to the B-Line 4Dimension strut pipe clamp and fitting family, so it is meant to attach to channel rather than hang on its own from rod or clip directly to structure. If there is no strut in the run, you need a hanger type designed for rod or beam attachment.
6) What part number do I give my supplier for this B-Line universal pipe clamp?
Order it as Eaton B-Line 4D2004ZN. That is the manufacturer part number for the single model offered, so there is no size or finish suffix to add on the order line.
