Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .104 IN
- Product Length Depth:
- 3.655 IN
- Product Weight:
- .33 LB
- Product Width:
- 1.25 IN
- Special Features:
- Preassembled Include combination recess hex screw
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:

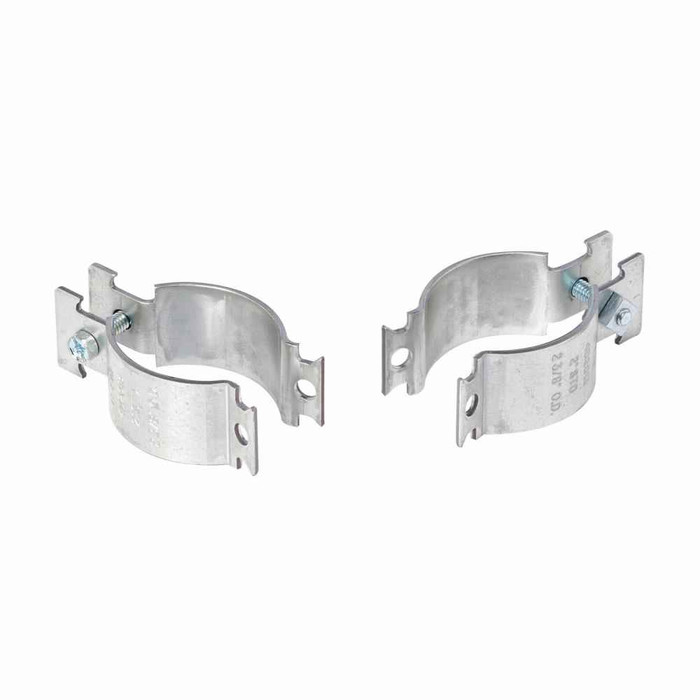

- Universal pipe clamp
- Product Details:
- Universal pipe clamp
- Product Material:
- Steel
B-LINE 4D2006PASS4 – Frequently Asked Questions
1) Does the B-Line 4D2006PASS4 pipe clamp come with the mounting screw, or do I have to order hardware separately?
It ships preassembled with a combination recess hex screw included, so the clamp and its fastener come together. You still supply the strut channel and, depending on how you are mounting, the channel nut. On the job that means one part number instead of chasing loose hardware in the truck.
2) What is the B-Line 4D2006PASS4 actually used for on a strut run?
It is a universal pipe clamp from Eaton's B-Line 4Dimension strut pipe clamp and fitting line, used to secure pipe or conduit to strut channel on electrical and mechanical support runs. "Universal" here is the clamp style, and it is part number 4D2006PASS4.
3) What material is the 4D2006PASS4 strut clamp made of?
Steel. That is the load-bearing body material for this universal pipe clamp, which is what you want on overhead conduit and pipe support where a plastic or stamped light-duty clamp would not hold up.
4) What are the dimensions and weight of the B-Line 4D2006PASS4 clamp?
Published as 3.655 in, 1.25 in, and .104 in, at .33 lb each. The 1.25 in width is the figure to check against your strut channel face and against the spacing of adjacent clamps if you are ganging several on one run; the .33 lb unit weight is what you multiply out when you are calculating hanger loading on a long run.
5) Is the B-Line 4D2006PASS4 a listed or certified product for spec work?
Certifications on the 4D2006PASS4 are marked Not Applicable, so treat it as a standard steel strut pipe clamp rather than a listed assembly component. If your drawing calls out a specific listing on the support hardware, that requirement has to be met by a clamp specified for it.
6) Can I order a single B-Line 4D2006PASS4 clamp, or is it only sold in one configuration?
The 4D2006PASS4 is a single fixed configuration, no finish or size options to pick. Order by that part number and you get the one preassembled steel universal clamp with its screw.
