Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .105 IN
- Product Length Depth:
- 3.268 IN
- Product Weight:
- .3 LB
- Product Width:
- 1.25 IN
- Special Features:
- Preassembled Include combination recess hex screw
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Universal pipe clamp
- Product Details:
- Universal pipe clamp
B-LINE 4D2012PAZN – Frequently Asked Questions
1) What is the B-Line 4D2012PAZN and what does it do?

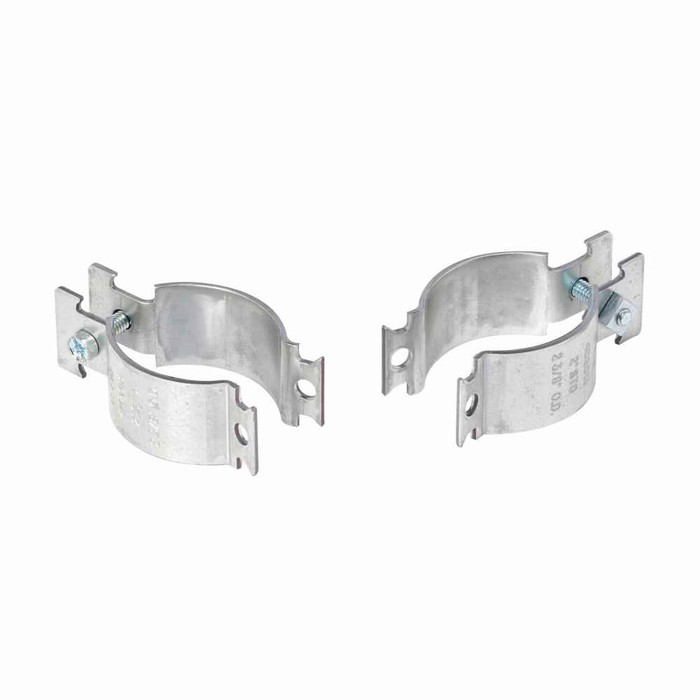

It's a universal pipe clamp from Eaton's B-Line 4Dimension strut fitting line, used to secure pipe or conduit to strut channel. It arrives preassembled with a combination recess hex screw, so the fastener is already in the clamp when you open the box.
2) Does the 4D2012PAZN pipe clamp come with the screw, or do I order hardware separately?
The screw is included. The clamp ships preassembled with a combination recess hex screw, meaning it can be driven with more than one bit type, so an installer working off a lift isn't hunting for loose fasteners. You still supply the strut channel itself.
3) What are the dimensions and weight of the B-Line 4D2012PAZN clamp?
Stated dimensions are 3.268 in length/depth, 1.25 in width, and .105 in height, with a weight of .3 lb per piece. The .105 in figure is the material thickness of the stamped clamp body, and the 1.25 in width is what matters if you're spacing multiple clamps along a run of strut.
4) Can I use the B-Line 4D2012PAZN clamp on any brand of strut channel?
It's built as a 4Dimension strut fitting, so it's matched to Eaton B-Line strut channel. Most 1-5/8 in strut profiles share the same slot opening, but the safe approach on a spec'd job is to keep the clamp and the channel in the same system rather than mixing lines.
5) Is this pipe clamp meant for electrical conduit or for plumbing pipe?
It's catalogued on the electrical side and is the type of fitting used for conduit runs on strut, but as a universal pipe clamp it will take pipe as well as conduit of the matching size. Confirm the size stamped on your existing clamps matches before ordering a quantity for a full run.
6) What part number do I order for the Eaton B-Line 4Dimension universal pipe clamp?
Order Eaton B-Line part number 4D2012PAZN. That is the manufacturer part number for the preassembled 4Dimension universal pipe clamp, and it's the number to quote to match existing clamps already installed on a job.
7) Is the B-Line 4D2012PAZN pipe clamp UL listed or certified for anything?
No certification applies to this clamp; it's carried as a plain mechanical support fitting. If your submittal needs a listed support assembly, that requirement is normally satisfied at the strut and hanger system level rather than by the individual clamp.
