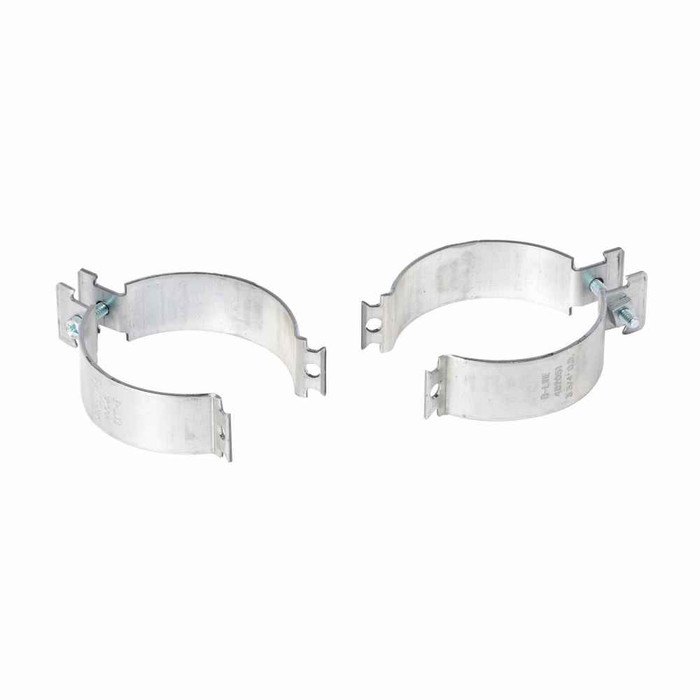

Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .103 IN
- Product Length Depth:
- 6.255 IN
- Product Weight:
- .57 LB
- Product Width:
- 1.25 IN
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Universal pipe clamp
- Product Details:
- Universal pipe clamp
- Product Material:
- Aluminum
B-LINE 4D2016AL – Frequently Asked Questions
1) What is the B-Line 4D2016AL and what is it used for?
The 4D2016AL is a universal pipe clamp from Eaton's B-Line 4Dimension strut pipe clamp and fitting line. It is the piece that holds a run of pipe or conduit to strut channel, and it is part number 4D2016AL.
2) Can I mix the 4D2016AL aluminum clamp with steel strut and steel pipe?
Aluminum in direct contact with dissimilar metals in a wet or exterior location can set up galvanic corrosion, so most specs pair aluminum clamps with aluminum strut or call for an isolating barrier. The 4D2016AL is aluminum, so check what your drawing calls for on the channel and the pipe before you mix.
3) What size is the B-Line 4D2016AL clamp?
The 4D2016AL measures 6.255 in length/depth, 1.25 in width, and .103 in height. The 1.25 in width is the number to check against your strut channel face and against how tightly your pipe runs are spaced, and .103 in is the stock thickness of the material.
4) Does the 4D2016AL come with the nut and bolt to fasten it to strut?
The 4D2016AL is sold as the clamp itself. Strut channel nuts and the bolt or threaded rod hardware are ordered separately, so add the channel nut size that matches your strut when you place the order.
5) How much does one B-Line 4D2016AL clamp weigh for load calculations?
Each 4D2016AL weighs .57 lb. On a long overhead trapeze run that adds up quickly, so count the clamp count into your dead load along with the strut and the pipe itself.
