Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .103 IN
- Product Length Depth:
- 6.255 IN
- Product Weight:
- .57 LB
- Product Width:
- 1.25 IN
- Special Features:
- Preassembled Include combination recess hex screw
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:

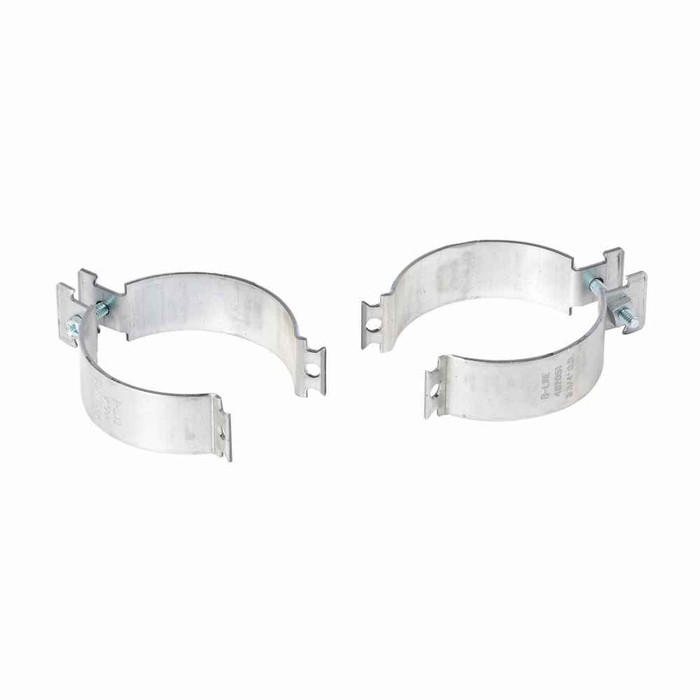

- Universal pipe clamp
- Product Details:
- Universal pipe clamp
- Product Material:
- Aluminum
B-LINE 4D2016PAAL – Frequently Asked Questions
1) Does the B-Line 4D2016PAAL pipe clamp come with the hardware to mount it, or do I need to order screws separately?
The 4D2016PAAL ships preassembled with a combination recess hex screw included, so the fastener that closes the clamp is in the box. You still supply whatever strut channel and channel nut the run calls for.
2) Is the B-Line 4D2016PAAL strut clamp steel or aluminum?
Aluminum. That matters on two counts: it keeps the piece light at .57 lb, and it is the material to specify when you want to avoid a dissimilar-metal pairing against aluminum conduit or tube.
3) What are the dimensions of the B-Line 4Dimension 4D2016PAAL clamp?
Published as 6.255 in length/depth, 1.25 in width, and .103 in height. The .103 figure is the stock thickness of the formed piece, and the 1.25 in width is what you need to check against the open slot of your strut channel before you commit to a run.
4) What is a universal pipe clamp used for on a strut run?
A universal pipe clamp like the Eaton B-Line 4Dimension 4D2016PAAL wraps the pipe or conduit and fastens it to strut channel, holding the line off the structure at a fixed spacing. It is the part you use when the run is already on strut; for a pipe hung directly from rod or attached to a beam you want a hanger or beam clamp instead, not a strut clamp.
5) Is the B-Line 4D2016PAAL clamp a listed or certified item for my inspector?
Certifications on the 4D2016PAAL are recorded as Not Applicable, so treat it as a plain mechanical support component rather than a listed assembly. If your spec calls out a listing on the support hardware, specify a product that carries one.
