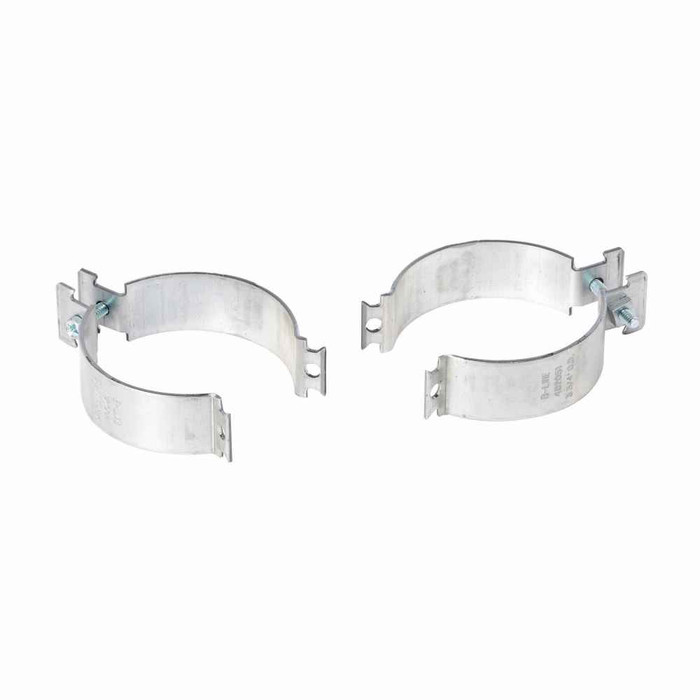

Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .105 IN
- Product Length Depth:
- 6.255 IN
- Product Weight:
- .57 LB
- Product Width:
- 1.25 IN
- Special Features:
- Preassembled Include combination recess hex screw
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Universal pipe clamp
- Product Details:
- Universal pipe clamp
- Product Material:
- Steel
B-LINE 4D2016PAHDG – Frequently Asked Questions
1) Does the B-Line 4D2016PAHDG pipe clamp come with the strut mounting hardware, or do I have to order a nut and bolt separately?
The 4D2016PAHDG ships preassembled with a combination recess hex screw included, so you are not chasing loose fasteners on the lift. It is a universal pipe clamp for Eaton B-Line 4Dimension strut, so the strut channel itself is the only other piece you need for the run.
2) What material is the B-Line 4D2016PAHDG universal pipe clamp made of?
Steel. It is a steel strut pipe clamp in the Eaton B-Line 4Dimension line, part number 4D2016PAHDG.
3) How much room do I need on the strut run for a 4D2016PAHDG clamp?
Plan for a footprint of 6.255 inches by 1.25 inches by .105 inches on the 4D2016PAHDG. The 1.25 inch width sits within a standard strut channel face, and the 6.255 inch dimension is what to allow between adjacent clamps or trapeze hangers so the bodies do not crowd each other.
4) Is this B-Line clamp for electrical conduit or for plumbing pipe?
It is catalogued for electrical work and described as a universal pipe clamp, which is the type used on strut to support conduit and pipe runs alike. The 4Dimension clamps are strut-mounted, so whatever you are hanging goes on the channel rather than direct to structure.
5) What does a single B-Line 4D2016PAHDG clamp weigh for a hanger load takeoff?
.57 lb each. On a long trapeze run that adds up quickly, so count the clamps into your dead load when you are sizing rod and strut.
