Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .105 IN
- Product Length Depth:
- 6.255 IN
- Product Weight:
- .57 LB
- Product Width:
- 1.25 IN
- Special Features:
- Preassembled Include combination recess hex screw
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:

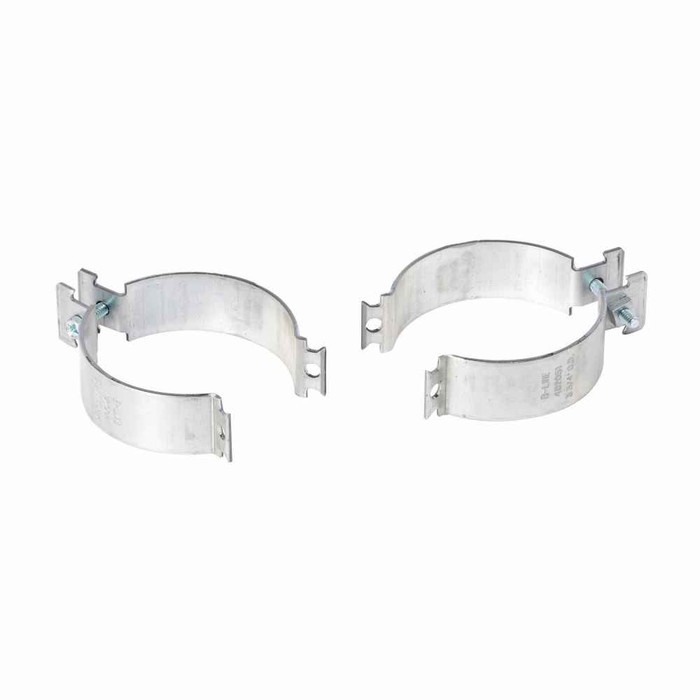

- Universal pipe clamp
- Product Details:
- Universal pipe clamp
B-LINE 4D2016PAZN – Frequently Asked Questions
1) Does the B-Line 4D2016PAZN pipe clamp come with the mounting screw, or do I need to order hardware separately?
The 4D2016PAZN ships preassembled with a combination recess hex screw included, so the clamp and its fastener come together. You still supply the strut channel and, where the design calls for it, the channel nut.
2) What is the B-Line 4D2016PAZN used for on an electrical or mechanical run?
It is a universal pipe clamp from Eaton's B-Line 4Dimension strut pipe clamp and fitting line, used to secure pipe or conduit to strut channel on hangers, racks and trapeze supports.
3) How much room does the B-Line 4D2016PAZN clamp take up on a strut run?
Plan on a 1.25 inch footprint across the channel and 6.255 inches along the length/depth of the part, with a .105 inch material height. That 1.25 inch width is what matters when you are spacing multiple clamps along one piece of strut.
4) Is the B-Line 4D2016PAZN clamp sold as an assembly or in pieces I have to put together on the lift?
It arrives preassembled. For an electrician working overhead that means one part out of the box and one fastener to drive, rather than sorting loose halves and hardware at height.
