Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .105 IN
- Product Length Depth:
- 6.255 IN
- Product Weight:
- .57 LB
- Product Width:
- 1.25 IN
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Universal pipe clamp
- Product Details:
- Universal pipe clamp
B-LINE 4D2016ZN – Frequently Asked Questions
1) What are the dimensions of the 4D2016ZN strut pipe clamp?
It measures 6.255 inches in length/depth, 1.25 inches wide, and .105 inches high, and weighs .57 lb. The .105 inch figure is the material thickness of the strap, so plan on a clamp footprint of roughly 1-1/4 inches along the strut, which is what matters if you are spacing several clamps on one channel run.
2) Will the 4D2016ZN clamp fit standard 1-5/8 inch strut channel?
It is part of Eaton B-Line's 4Dimension strut clamp and fitting family, so it is built to mount into B-Line strut channel. At 1.25 inches wide it sits inside the channel opening of standard 1-5/8 inch strut rather than spanning across it.
3) What is the B-Line 4D2016ZN and what does it do?

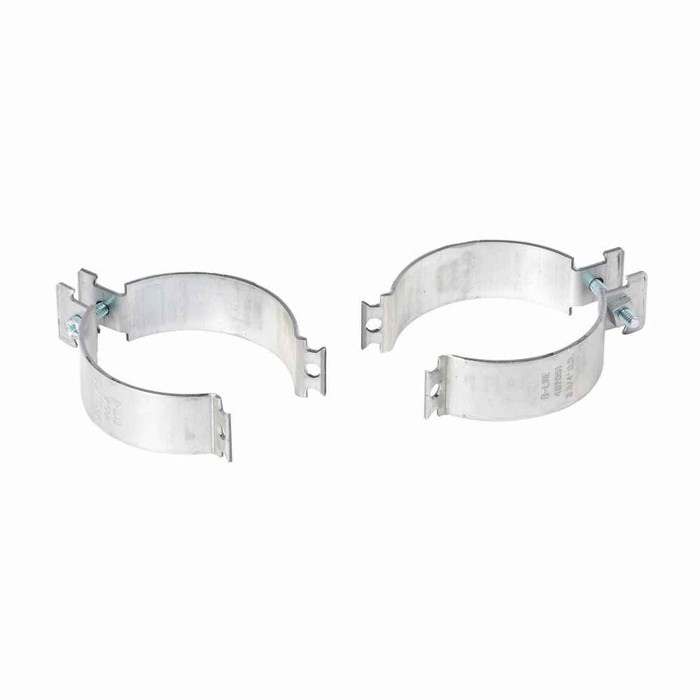

The 4D2016ZN is a universal pipe clamp from Eaton's B-Line 4Dimension strut clamp and fitting line. It mounts to strut channel and holds pipe or conduit in place on a strut run. It ships as a single model, MPN 4D2016ZN.
4) Is the 4D2016ZN clamp zinc plated or stainless?
The ZN suffix on the part number is B-Line's zinc plated finish designation, which suits dry interior electrical and mechanical runs. For exterior, wash-down, or corrosive areas, specify a stainless or hot dip galvanized clamp instead of the zinc plated version.
5) Does the 4D2016ZN pipe clamp carry a UL listing or other certification?
No certification is carried on the 4D2016ZN. If your project specification calls for a listed or labeled support component, this clamp will not satisfy that line item and you should specify a clamp that carries the listing you need.
6) Do I need to order strut nuts and bolts separately for a 4D2016ZN clamp?
Plan on channel nuts and hardware as separate line items. The 4D2016ZN is catalogued as the clamp itself, a single universal pipe clamp weighing .57 lb, with no channel nut or bolt kit called out as included.
