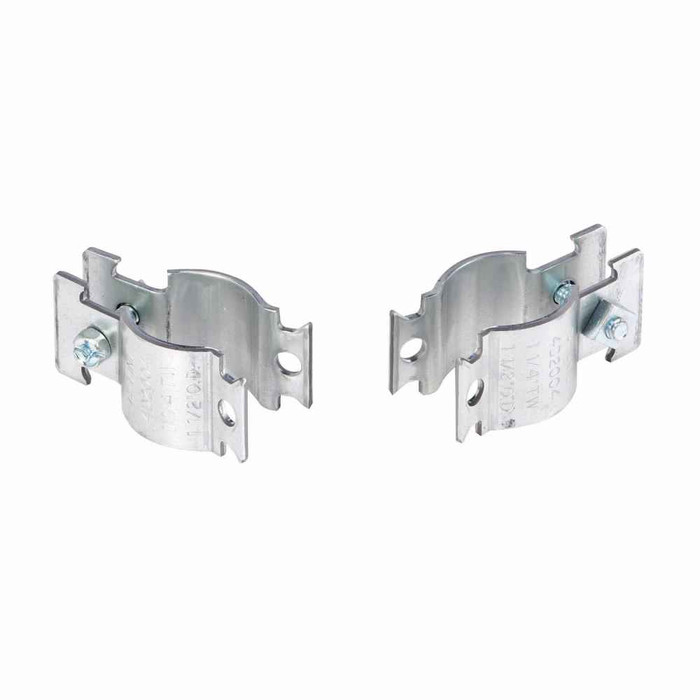

Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .105 IN
- Product Length Depth:
- 1.52 IN
- Product Weight:
- .08 LB
- Product Width:
- 1.25 IN
- Special Features:
- Preassembled Include combination recess hex screw
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Universal pipe clamp
- Product Details:
- Universal pipe clamp
B-LINE 4D2024PAZN – Frequently Asked Questions
1) Does the B-Line 4D2024PAZN strut clamp come with the mounting screw, or do I have to order hardware separately?
The 4D2024PAZN ships preassembled with a combination recess hex screw included, so the fastener that secures the clamp to the strut comes in the box. Nothing else has to be bought to mount it to the channel.
2) What size is the B-Line 4Dimension 4D2024PAZN pipe clamp, and will it fit in a tight space next to other runs?
It is a small part: 1.25 in wide, 1.52 in in length/depth, .105 in high, weighing .08 lb. That footprint keeps it close to the channel face, so it works where runs are tiered or spaced close together on the same strut.
3) What is a universal strut pipe clamp used for on an electrical job?
A universal pipe clamp like the Eaton B-Line 4Dimension 4D2024PAZN fastens conduit or pipe to strut channel. It is an electrical support fitting, part of the clamps and supports range, and is the standard way to hang a run off a trapeze or wall-mounted channel rather than strapping it directly to structure.
4) What part number do I order for the B-Line 4Dimension universal pipe clamp?
Order Eaton B-Line part number 4D2024PAZN. It is the 4Dimension series strut pipe clamp, supplied as a single preassembled unit with its screw.
5) Does the 4D2024PAZN clamp carry a UL listing or other certification?
Certifications are marked Not Applicable for the 4D2024PAZN. Treat it as an uncertified mechanical support fitting; if your facility spec calls for a listed conduit support, verify the requirement against the approved product list on your drawings.
6) Can one person install these clamps overhead without extra tooling?
Yes. At .08 lb each and shipped preassembled with the hex screw already in place, the 4Dimension clamp goes on with one driver and no loose nuts to juggle on a ladder.
