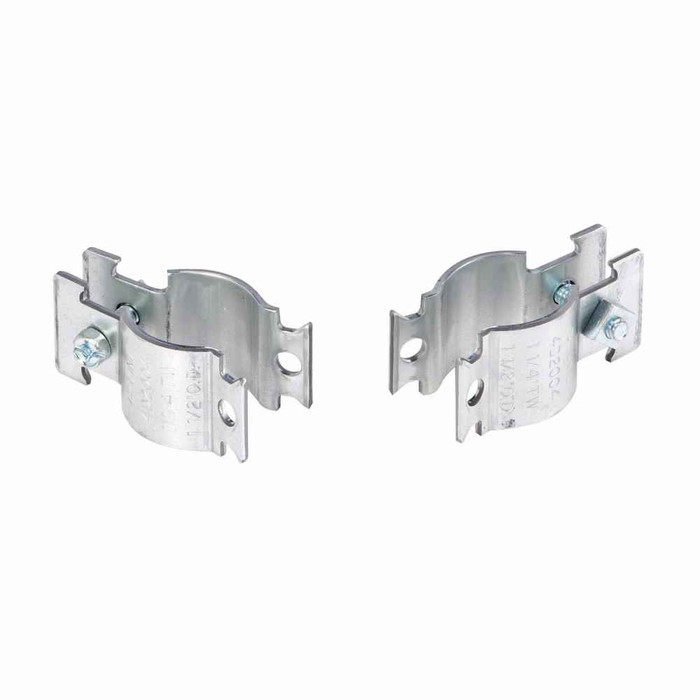

Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .105 IN
- Product Length Depth:
- 1.84 IN
- Product Weight:
- .1 LB
- Product Width:
- 1.25 IN
- Special Features:
- Preassembled Include combination recess hex screw
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Universal pipe clamp
- Product Details:
- Universal pipe clamp
- Product Material:
- Steel
B-LINE 4D2026PAHDG – Frequently Asked Questions
1) Does the B-Line 4D2026PAHDG pipe clamp come with the mounting screw, or do I need to order hardware separately?
The screw is included. The 4D2026PAHDG ships preassembled with a combination recess hex screw, so it goes onto the strut as supplied with no separate fastener order. You still need the strut channel itself and, depending on how you are mounting, a channel nut arrangement suited to your run.
2) Will the 4D2026PAHDG fit standard Unistrut-style channel, or only Eaton B-Line strut?
It is built as a 4Dimension series strut fitting, so it is designed around B-Line channel. Strut fittings of this type engage the rolled-in lips of 1-5/8 inch channel, which is the common commercial profile, but if your existing channel is a different width or a shallow/slotted profile, confirm the channel size on site before committing to a quantity.
3) What is the B-Line 4D2026PAHDG actually used for on an electrical rough-in?
It is a universal pipe clamp from Eaton's B-Line 4Dimension strut fitting line, used to secure conduit or pipe to strut channel. Electricians use it for supporting runs off Unistrut-style channel on walls, ceilings, and racks rather than clamping directly to structure.
4) Is the B-Line 4D2026PAHDG clamp steel or stainless, and will it hold up outdoors?
The clamp body is steel. For exterior, damp, or corrosive locations a stainless or hot dip galvanized strut clamp is the usual specification, so match the clamp finish to the strut and hardware already in the run rather than mixing bare and coated parts in the same assembly.
5) I need the exact part number to match what is already installed. What do I order?
Order Eaton B-Line part number 4D2026PAHDG. That is the full manufacturer designation, and it is the single model this universal pipe clamp is sold under, so there is no size or finish suffix to add.
6) What are the dimensions and weight of the 4D2026PAHDG strut clamp for takeoff and shipping counts?
The 4D2026PAHDG measures 1.84 x 1.25 x .105 inches (length/depth, width, height as stated) and weighs .1 lb each. The .105 inch figure is the material thickness of the stamped clamp, which is why a box of these adds almost nothing to a pallet weight on a large conduit package.
