Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .104 IN
- Product Length Depth:
- 4.964 IN
- Product Weight:
- .39 LB
- Product Width:
- 1.25 IN
- Special Features:
- Preassembled Include combination recess hex screw
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Universal pipe clamp
- Product Details:
- Universal pipe clamp
- Product Material:
- Steel
B-LINE 4D2046PASS4 – Frequently Asked Questions

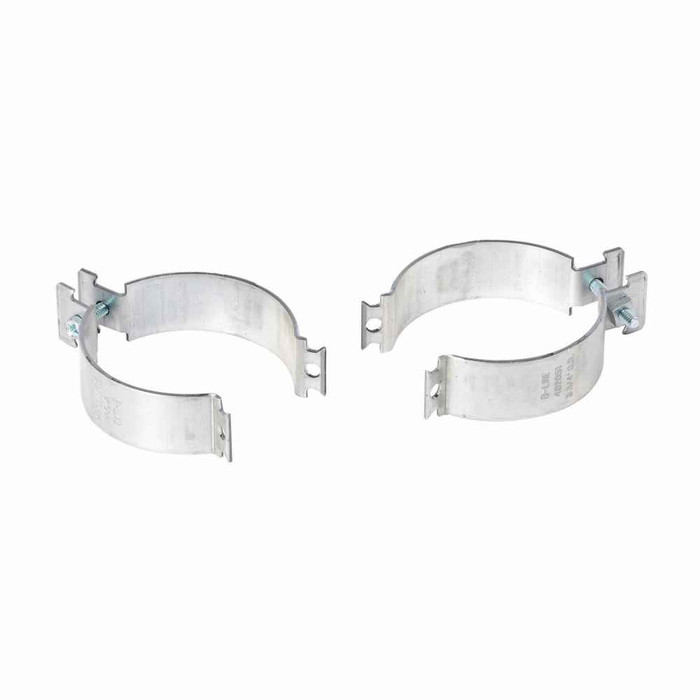

1) What is the B-Line 4D2046PASS4 used for?
It's a universal pipe clamp from Eaton's B-Line 4Dimension strut fitting line, used to secure pipe or conduit to strut channel. The clamp body is steel and it ships preassembled with a combination recess hex screw, so you're not sourcing the fastener separately.
2) Does the 4D2046PASS4 pipe clamp come with the mounting screw, or do I need to order hardware separately?
The screw is included. The clamp comes preassembled with a combination recess hex screw, so it goes straight onto the strut with no separate channel nut or bolt kit to buy. That matters on a big conduit run where you're setting dozens of clamps in a day.
3) What are the dimensions and weight of the B-Line 4D2046PASS4 clamp?
It measures 4.964 in length/depth, 1.25 in width, and .104 in height, and weighs .39 lb. The .104 in figure is the steel thickness of the strap, and the 1.25 in width is what matters if you're spacing clamps tightly along a single run of strut.
4) Is the 4D2046PASS4 clamp part of a system, or can I mix it with other strut fittings?
It belongs to Eaton B-Line's 4Dimension series of strut pipe clamps and fittings, so it's designed to work with that system of channel and fittings. If you're standardising a facility on one strut system, keeping clamps and fittings within the same series avoids mismatched screw and channel prep.
5) Is this steel pipe clamp suitable for an electrical conduit run?
Yes. The 4D2046PASS4 is catalogued for electrical work as a universal pipe clamp, and the steel body handles conduit support on strut. For a full exact part match on your drawing, order by the manufacturer number 4D2046PASS4.
6) What exact part number should I order for the Eaton B-Line 4Dimension universal pipe clamp?
Order it as 4D2046PASS4, the Eaton B-Line manufacturer number. That single designation covers the preassembled steel clamp with its screw, so there are no separate finish or size suffixes to add.
