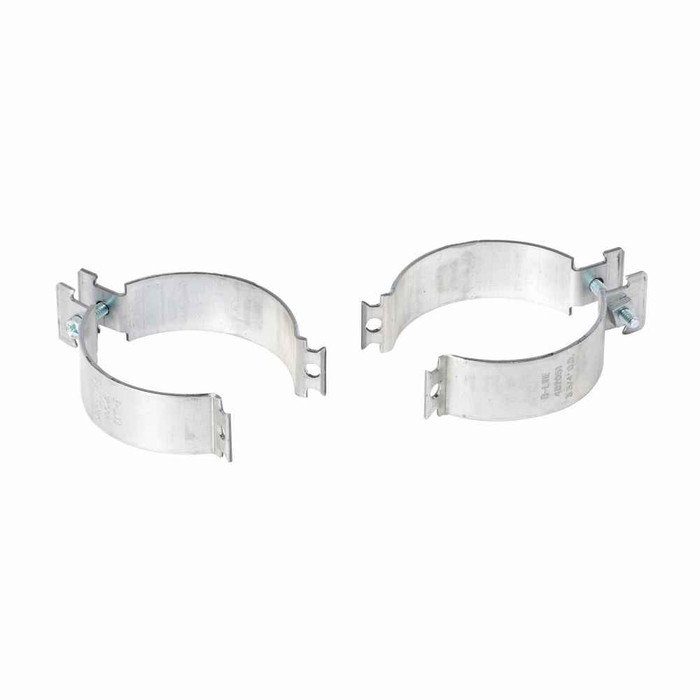

Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .105 IN
- Product Length Depth:
- 4.964 IN
- Product Weight:
- .39 LB
- Product Width:
- 1.25 IN
- Special Features:
- Preassembled Include combination recess hex screw
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Universal pipe clamp
- Product Details:
- Universal pipe clamp
B-LINE 4D2046PAZN – Frequently Asked Questions
1) Does the B-Line 4D2046PAZN pipe clamp come with the mounting screw, or do I have to order hardware separately?
The 4D2046PAZN ships preassembled with a combination recess hex screw included, so the clamp and its fastener come together. You still supply the strut channel itself and any channel nut the strut system requires.
2) What is a universal strut pipe clamp used for on an electrical job?
It's a one piece clamp that fastens conduit or pipe to strut channel. The 4D2046PAZN is an Eaton B-Line series 4Dimension universal pipe clamp, used for supporting conduit runs, sprinkler and process piping off strut in ceilings, walls and racks. It clamps the pipe directly to the channel rather than needing a separate hanger and rod.
3) How much space does the B-Line 4D2046PAZN clamp take up on the strut?
The clamp measures 4.964 in length/depth, 1.25 in width and .105 in height, so it seats on standard 1-5/8 in strut with a narrow 1.25 in footprint. That matters when you're spacing multiple clamps along one run of channel.
4) How do I order the exact same B-Line strut clamp again to match what's already installed?
Order by manufacturer part number 4D2046PAZN, the Eaton B-Line series 4Dimension universal pipe clamp. It's a single-model item, so there's no finish or size choice to specify, and repeat orders match what's on the wall.
5) What does one B-Line 4D2046PAZN clamp weigh for load calculations?
Each clamp weighs .39 lb. For a long conduit rack the clamp weight is usually negligible next to the pipe and contents, but it's the figure to add if you're totalling dead load on a trapeze or seismic support.
6) Is the B-Line 4D2046PAZN clamp a listed or certified assembly?
Certifications are marked Not Applicable for the 4D2046PAZN, so treat it as a standard strut pipe clamp rather than a listed component. If your spec calls for a listed or labelled support assembly, get that requirement confirmed against the strut system as a whole.
