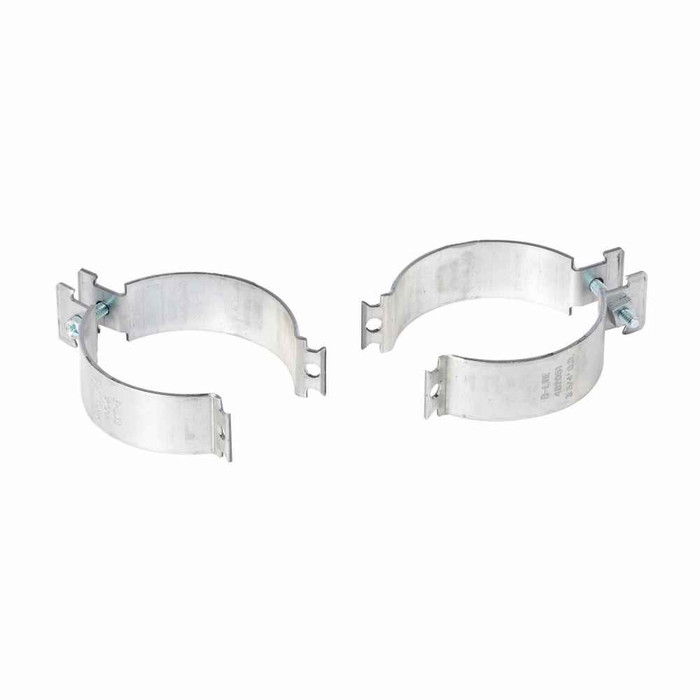

Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .105 IN
- Product Length Depth:
- 5.157 IN
- Product Weight:
- .41 LB
- Product Width:
- 1.25 IN
- Department:
- Electrical
B-LINE 4D2047PAZN – Frequently Asked Questions
1) What size is the B-Line 4D2047PAZN strut fitting?
The 4D2047PAZN measures 5.157 x 1.25 x .105 inches, with the .105 inch figure being the material thickness of the flat plate-style fitting. The 1.25 inch width is what lets it sit inside standard 1-5/8 inch strut channel.
2) Is the 4D2047PAZN a pipe clamp or a strut fitting?
It is a fitting from Eaton B-Line's 4Dimension strut pipe clamp and fitting family, not a clamp body that wraps a pipe. At 5.157 inches long, 1.25 inches wide and .105 inch thick it is a flat connecting piece used to join or brace strut, so if you are trying to secure a run of pipe directly you need the clamp sized to that pipe OD instead.
3) What is the part number for the B-Line 4Dimension strut fitting, and how do I order the right one?
Order it by the Eaton B-Line part number 4D2047PAZN. That single model designation covers the piece outright, so quoting 4D2047PAZN to a distributor gets you the exact fitting with no suffix or option code to add.
4) Is the B-Line 4Dimension 4D2047PAZN fitting listed to a certification or code standard?
No certification applies to this fitting. It is a mechanical strut support component in Eaton B-Line's 4Dimension strut pipe clamp and fitting line, so if your submittal requires a listed or labeled support, that requirement has to be met by another item in the assembly.
5) How much does the 4D2047PAZN weigh for calculating hanger and rack loads?
.41 lb per piece. On a run where you are tallying dead load for a trapeze or a pipe rack, that is the figure to multiply by your fitting count.
