Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .105 IN
- Product Length Depth:
- 5.338 IN
- Product Weight:
- .43 LB
- Product Width:
- 1.25 IN
- Special Features:
- Preassembled Include combination recess hex screw
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:

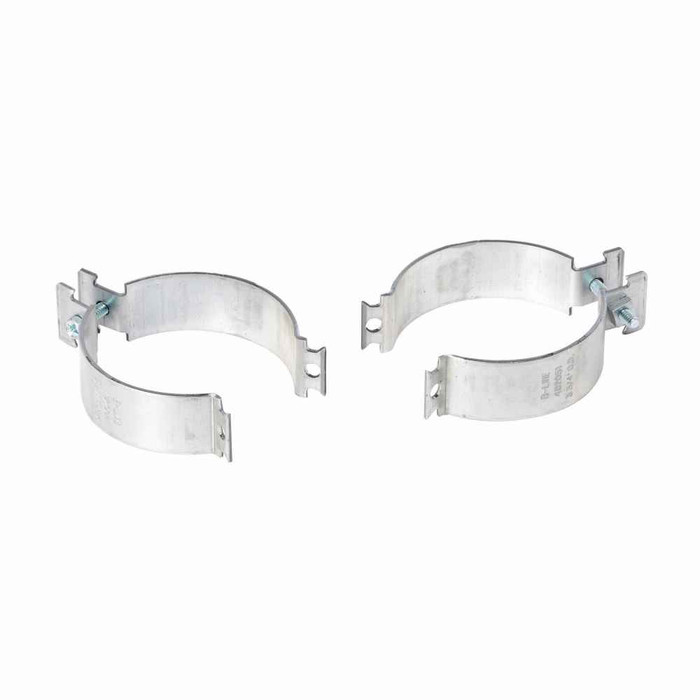

- Universal pipe clamp
- Product Details:
- Universal pipe clamp
B-LINE 4D2048PAZN – Frequently Asked Questions
1) Does the B-Line 4D2048PAZN pipe clamp come with the mounting screw, or do I need to order hardware separately?
The 4D2048PAZN ships preassembled with a combination recess hex screw included, so the fastener that closes the clamp comes with it. Plan separately for whatever you need to attach it to the strut channel itself.
2) What is a universal pipe clamp used for on strut channel?
A universal pipe clamp such as the B-Line 4D2048PAZN secures a pipe or conduit run against strut channel, clamping the pipe and fastening to the channel rather than being hung from a rod. It is part of the Eaton B-Line 4Dimension strut pipe clamp and fitting line, used on electrical conduit and mechanical piping supports.
3) What are the dimensions and weight of the B-Line 4D2048PAZN clamp?
It measures 5.338 x 1.25 x .105 inches and weighs .43 lb. The 1.25 inch width is what you check against the strut face and the spacing of adjacent clamps on a multi-run support.
4) Is the B-Line 4D2048PAZN a listed or certified assembly for a spec job?
Certifications are recorded as not applicable for the 4D2048PAZN, so do not write it into a submittal that calls for a specific listing. Order by the Eaton B-Line part number 4D2048PAZN when the spec calls out the 4Dimension strut clamp family.
5) How many versions of the B-Line 4D2048PAZN are there, and what do I order?
One configuration only. The orderable Eaton B-Line part number is 4D2048PAZN, preassembled, with no finish or size options to select.
