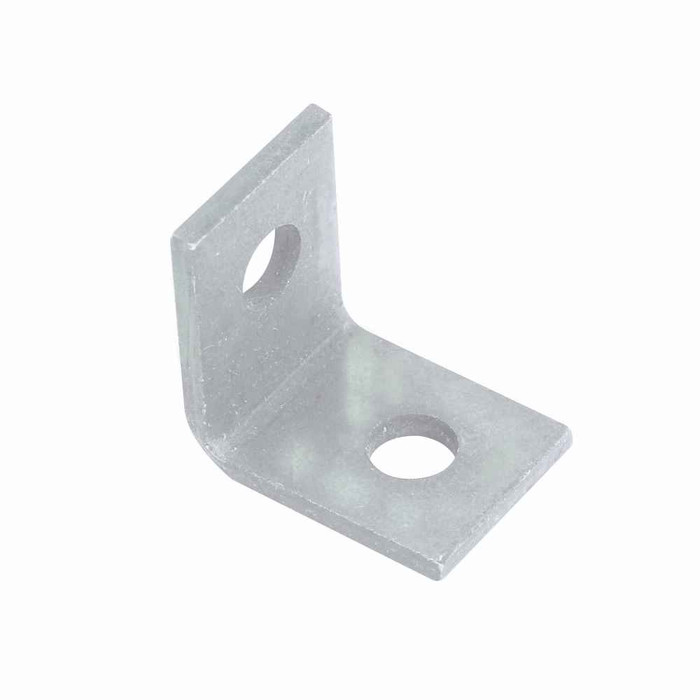

Eaton B-Line series all threaded rod and drop wire supports, Hangers, 1" Height, 1" Length, 1" Width, 0.032lbs, Components, 160 lbs load capacity, Angle bracket with .281" and .406" holes
Manufacturer Resources
Product Specs
- Application:
- For wire or chain drop from concrete or wood
- Certifications:
- UL/CUL listed
- Load Capacity:
- 160 lbs
- Product Category:
- Hangers
- Product Height:
- 1 in
- Product Length Depth:
- 1 in
- Product Weight:
- .032 lb
- Product Width:
- 1 in
- Special Features:
- Angle bracket with .281" and .406" holes
- Department:
- Electrical
- Product Type:
- Components
- Product Details:
- Components
- Product Length:
- 1 in
B-LINE BH7-6 – Frequently Asked Questions
1) What size fasteners fit the B-Line BH7-6 angle bracket holes?
The BH7-6 angle bracket has one .281 inch hole and one .406 inch hole. The .281 inch hole takes a 1/4 inch bolt, screw or threaded rod; the .406 inch hole takes a 3/8 inch rod or bolt. That pairing is what lets you anchor the bracket with one size and hang from the other.
2) How much weight can the B-Line BH7-6 hanger bracket hold?
Rated at 160 lbs load capacity. That covers typical lighting fixtures, small cable runs and conduit drops. Anchor selection into the concrete or wood deck governs the real-world limit, so match the anchor rating to the load you hang.
3) Can I use the BH7-6 bracket to drop a wire or chain hanger from a concrete deck?
That is exactly what it is built for. The BH7-6 is intended for wire or chain drop from concrete or wood, so you fasten the bracket to the structure through one hole and take the chain, wire or threaded rod off the other.
4) Is the Eaton B-Line BH7-6 hanger UL listed for electrical work?
Yes, the BH7-6 carries a UL/CUL listing, which is what an inspector will look for on a support used in an electrical installation.
5) How big is the BH7-6 bracket and will it fit in a tight ceiling cavity?
It is a compact part: 1 inch height, 1 inch length and 1 inch width, weighing .032 lb. At roughly a one inch cube envelope it tucks into tight plenum and joist spaces where a larger hanger will not sit flat.
6) Does the BH7-6 come with anchors or screws for mounting?
No. The BH7-6 is the bracket alone, a component in the all threaded rod and drop wire support line. You supply the concrete anchor or wood screw for the .281 inch hole and the rod, chain or wire hardware for the .406 inch hole.
7) What part number do I order for the B-Line 160 lb angle hanger bracket?
Order Eaton B-Line BH7-6. It ships as a single component, so count one bracket per drop point and order accordingly for a fixture run.
