B-Line Eaton series beam clamp...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$15,836.30

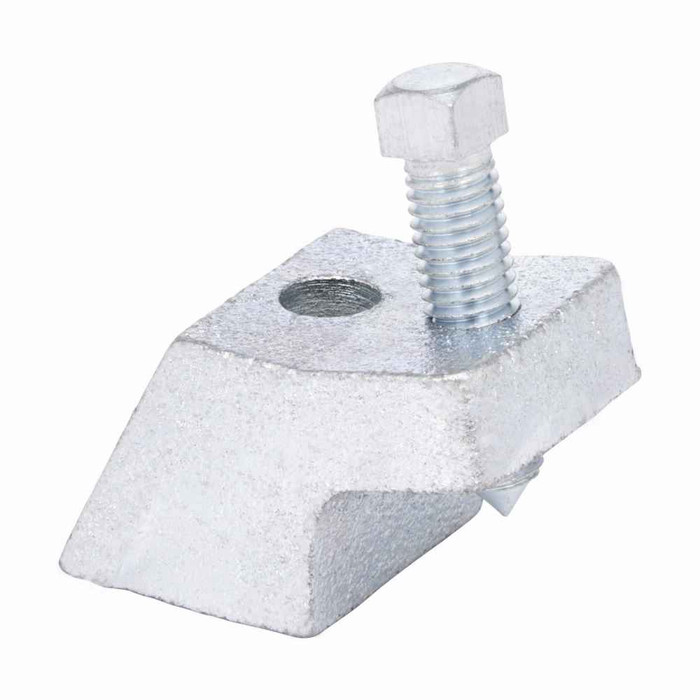

B-Line Eaton series beam clamps, 900 lb, Malleable iron, Safety factor of 5,1/2”- 13 Setscrew included, I-Beam clamp, 7/8" flange width, Electro-plate

B-Line Eaton series beam clamps, 900 lb, Malleable iron, Safety factor of 5,1/2”- 13 Setscrew included, I-Beam clamp, 7/8" flange width, Electro-plate

(No reviews yet) Write a Review

Model: B213ZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$15,836.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series beam clamps, 900 lb, Malleable iron, Safety factor of 5,1/2”- 13 Setscrew included, I-Beam clamp, 7/8" flange width, Electro-plated zinc

Manufacturer Resources

Product Specs

Beam Flange Width:
.875 in
Certifications:
cULus Listed
Load Capacity:
900 lb
Product Height:
7.25 in
Product Length Depth:
2.5 in
Product Weight:
.95 lb
Product Width:
1.25 in
Special Features:
Safety factor of 5,1/2”- 13 Setscrew included
Department:
Electrical
Product Group:
Clamps & Supports
Product Subgroup:
Clamps
Product Type:
I-Beam clamp
Product Details:
I-Beam clamp
Product Material:
Malleable iron

B-LINE B213ZN – Frequently Asked Questions

1) How much weight can the B213ZN beam clamp hold?
Rated at 900 lb load capacity, with a safety factor of 5 built into that rating. That covers typical threaded rod drops for conduit runs, cable tray, strut trapeze, and light pipe. Size the whole assembly (rod, nuts, and the supported run) to the same load, since the clamp rating is only one link in the hanger.
2) Is this beam clamp listed for electrical support work?
The B213ZN carries a cULus Listing, which is what inspectors look for on conduit and cable tray hangers in the US and Canada. It's catalogued as an electrical support item and used on I-beams for that purpose.
3) Do I need to buy a setscrew separately for this Eaton B-Line beam clamp?
No. The 1/2-13 setscrew ships with the clamp, so the only other pieces you supply are the threaded rod and hardware for whatever you're hanging.
4) Will a zinc-plated malleable iron beam clamp hold up in a damp or outdoor area?
The body is malleable iron with an electro-plated zinc finish. Electroplated zinc is a light indoor-grade coating, fine for conditioned interiors, mechanical rooms, and dry warehouse steel. For exterior runs, parking structures, or wash-down areas, step up to a hot dip galvanized or stainless version instead.
5) Can I use this clamp on a bar joist or angle instead of an I-beam?
It's built as an I-beam clamp and the .875 inch flange capacity is the governing spec. If the joist or angle leg falls within that thickness and gives the setscrew a flat bearing surface, the clamp seats. Odd-shaped members, tapered flanges, or anything thicker call for a different clamp style.
