Eaton B-Line Guide-Rite Conduit to Beam Fastener Flange Mount 1 Inch Steel 0.5-0.75 Inch Conduit

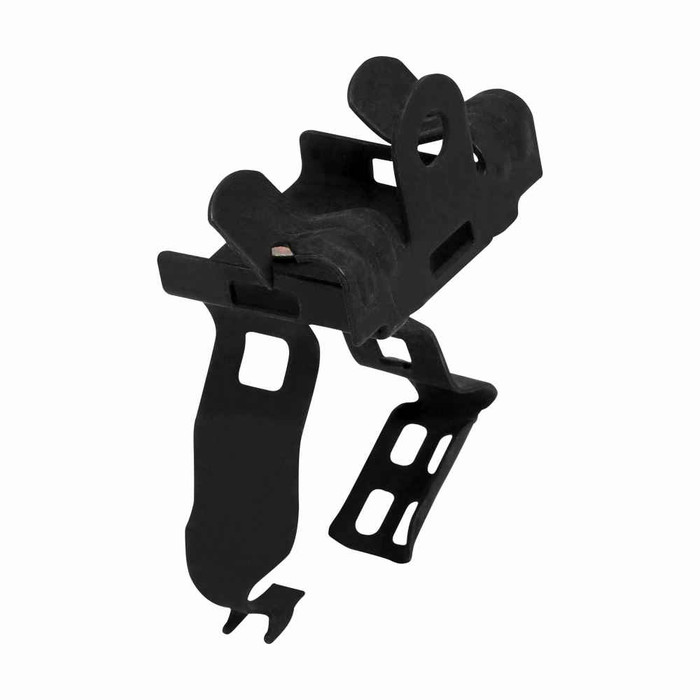

Eaton B-Line Guide-Rite Conduit to Beam Fastener

Professional Flange Mount Conduit Support System

The Eaton B-Line Guide-Rite Conduit to Beam Fastener delivers exceptional structural support and installation efficiency for conduit mounting applications on beam structures. This compact flange mount fastener provides reliable conduit support designed for professional electricians, mechanical contractors, and facility installers, offering the proven strength and versatile mounting capabilities that professionals trust from the industry leader in conduit support systems.

Professional Features & Benefits

Structural Performance

• Compact 1 inch dimensions - Space-efficient design with 1 inch height, length, and width for tight installation spaces
• Lightweight construction at 0.085 lbs - Easy handling and installation without compromising structural integrity
• Dual conduit compatibility - Accommodates both 0.5 inch and 0.75 inch conduit sizes for versatile applications
• UL/CUL listed certification - Meets rigorous safety standards for commercial and industrial electrical installations

Installation Efficiency

• Flange mounting method - Secure attachment to beam structures with reliable flange connection system
• Adjustable mounting range - Accommodates beam thicknesses from 0.125 inch minimum to 0.25 inch maximum
• Guide-Rite design - Engineered for precise conduit positioning and professional installation alignment

Technical Specifications

Dimensions: 1 inch height x 1 inch length x 1 inch width, Weight: 0.085 lbs, Conduit compatibility: 0.5 inch and 0.75 inch sizes, Mounting method: Flange mount, Mounting range: 0.125 inch to 0.25 inch beam thickness, Certifications: UL/CUL listed, Application: Conduit to beam fasteners, Product category: Beams, Product type: Guide-Rite conduit to beam fasteners

Installation & Usage

1. Select appropriate beam location ensuring adequate clearance for conduit routing
2. Position flange mount fastener on beam structure within 0.125 to 0.25 inch thickness range
3. Secure fastener to beam using appropriate mounting hardware for flange connection
4. Insert 0.5 inch or 0.75 inch conduit into Guide-Rite fastener opening
5. Verify proper conduit alignment and secure positioning within fastener
6. Test installation stability and conduit support before energizing electrical systems

Professional Applications

Ideal for:

• Commercial Electrical Systems - Office buildings, retail spaces, and commercial facilities requiring conduit support on structural beams
• Industrial Conduit Mounting - Manufacturing facilities, warehouses, and industrial plants with beam-mounted electrical distribution
• Institutional Installations - Schools, hospitals, and government buildings requiring reliable conduit support systems
• Data Center Infrastructure - Server rooms and telecommunications facilities with precise conduit routing requirements
• Mechanical Room Applications - HVAC equipment areas and utility rooms requiring organized conduit management
• Structural Steel Buildings - New construction and retrofit projects with exposed beam structures
• Maintenance and Repair - Replacement of existing conduit support hardware in commercial and industrial facilities
• Code Compliance Projects - Electrical installations requiring UL/CUL listed components for regulatory approval

Guide-Rite Design Advantage

The Guide-Rite design ensures precise conduit positioning and professional installation alignment, providing contractors with the accuracy needed for complex electrical routing projects while maintaining the structural integrity required for long-term performance.

Why Choose B-Line Quality?

B-Line's decades of conduit support innovation, commitment to UL/CUL listed safety standards, and trusted performance for contractors, electricians, and facility professionals worldwide make this Guide-Rite fastener the reliable choice for professional conduit mounting applications requiring precision, durability, and code compliance.
