B-Line BCH64-C442 Eaton series...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$82.22
$44.81

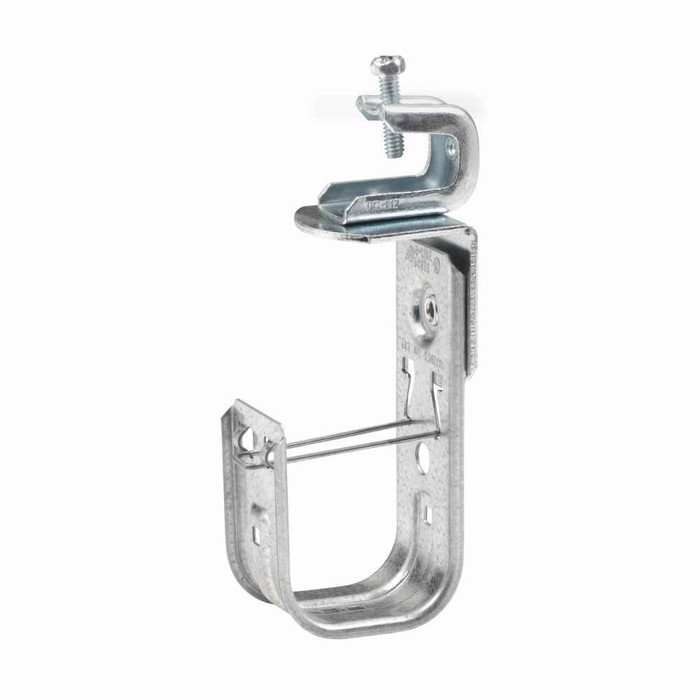

B-Line BCH64-C442 Eaton series datacomm and low voltage support fasteners, 360° rotation, Cable to beam fastener, Beam mount, 1/8" Min flange thickness, 5/8" Max flange thickness, 4" Hook, 1 J-hook, Pre-galvanized, Load capacity of 30 lbs, Steel

B-Line BCH64-C442 Eaton series datacomm and low voltage support fasteners, 360° rotation, Cable to beam fastener, Beam mount, 1/8" Min flange thickness, 5/8" Max flange thickness, 4" Hook, 1 J-hook, Pre-galvanized, Load capacity of 30 lbs, Steel

(No reviews yet) Write a Review

Model: BCH64-C442
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$82.22
$44.81
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series datacomm and low voltage support fasteners, 360° rotation, Cable to beam fastener, Beam mount, 1/8" Min flange thickness, 5/8" Max flange thickness, 4" Hook, 1 J-hook, Pre-galvanized, Load capacity of 30 lbs, Steel

Manufacturer Resources

Product Specs

Certifications:
UL/CUL listed
Hook Size:
4 in
Load Capacity:
30 lb
Mounting Dimensions Max:
5/8"
Mounting Dimensions Min:
1/8"
Number Of J Hooks:
1
Product Height:
9.373 in
Product Length Depth:
4.209 in
Product Weight:
1.02 lb
Product Width:
2.38 in
Special Features:
Beam mount
Department:
Electrical
Product Group:
Fasteners
Product Subgroup:
Other Fasteners
Product Type:
Cable to beam fastener
Product Finish:
Pre-galvanized
Product Details:
Cable to beam fastener
Product Material:
Steel
Product Length:
4.209 in

B-LINE BCH64-C442 – Frequently Asked Questions

1) Will the B-Line BCH64-C442 J-hook clamp onto my beam flange, and what flange thickness does it take?
The BCH64-C442 clamps directly to a structural beam flange between 1/8 inch and 5/8 inch thick. Anything thinner than 1/8 inch or heavier than 5/8 inch is outside the clamp range, so on a heavy-flange girder you'd need a different attachment. No drilling or welding is involved, it's a beam-mount fastener that grips the flange edge.
2) How much cable can a 4 inch B-Line BCH64 J-hook actually hold?
Rated load is 30 lb per hook, with a single 4 inch J-hook on the assembly. The 4 inch hook size is the bundle-width limit, and the 30 lb figure is what governs how many runs of Cat6 or fiber you stack in it before you add a second support point.
3) Is this cable support fastener UL listed for a commercial data install?
Yes, the BCH64-C442 cable-to-beam fastener is UL/CUL listed, which is what an inspector or institutional spec usually wants to see on low voltage and datacomm cable support in a commercial building.
4) What does the 360 degree rotation on the BCH64-C442 beam hook do for me on the job?
The hook rotates a full 360 degrees on the beam clamp, so you can set the clamp on the flange first and then swing the hook to line up with the cable run rather than fighting the beam orientation. Useful where runs cross the steel at an angle, since you get one part number instead of handed left and right versions.
5) Is a pre-galvanized steel J-hook okay for the environment I'm installing in?
The BCH64-C442 is steel with a pre-galvanized finish, which is the standard choice for dry interior work: plenums, above ceilings, office and data center steel. Pre-galv is not the finish to specify for exterior, washdown, or corrosive environments, where a hot-dip or stainless support is the right call.
6) How much room does the BCH64-C442 hook assembly take up below the beam?
Overall it measures 9.373 in height, 4.209 in length/depth and 2.38 in width, and weighs 1.02 lb. Worth checking against your ceiling cavity if you're tight between the steel and the grid, because the assembly hangs the hook below the flange it clamps to.
