B-Line BCH32-PNA Eaton series ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$71.59
$25.31

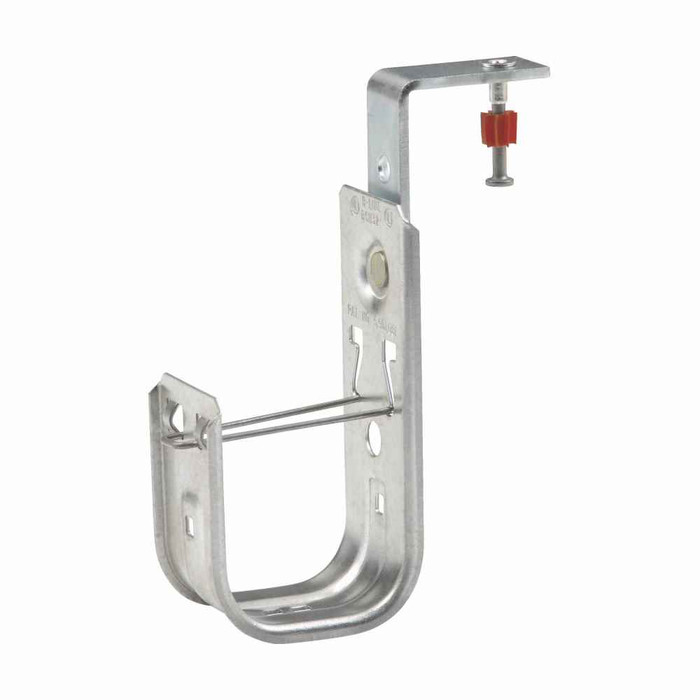

B-Line BCH32-PNA Eaton series datacomm and low voltage support fasteners, Exclusive 1-1/4" drive pin pre installed,Pins rated for concrete up to 4000 psi, Drive pin fastener, 2" Hook, 1 J-hook, Load capacity of 30 lbs, Steel

B-Line BCH32-PNA Eaton series datacomm and low voltage support fasteners, Exclusive 1-1/4" drive pin pre installed,Pins rated for concrete up to 4000 psi, Drive pin fastener, 2" Hook, 1 J-hook, Load capacity of 30 lbs, Steel

(No reviews yet) Write a Review

Model: BCH32-PNA
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$71.59
$25.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series datacomm and low voltage support fasteners, Exclusive 1-1/4" drive pin pre installed,Pins rated for concrete up to 4000 psi, Drive pin fastener, 2" Hook, 1 J-hook, Load capacity of 30 lbs, Steel

Manufacturer Resources

Product Specs

Certifications:
Contact Manufacturer
Hook Size:
2 in
Load Capacity:
30 lb
Number Of J Hooks:
1
Product Height:
4.31 in
Product Length Depth:
2.38 in
Product Weight:
.29 lb
Product Width:
1.62 in
Department:
Electrical
Product Group:
Fasteners
Product Subgroup:
Other Fasteners
Product Type:
Drive pin fastener
Product Details:
Drive pin fastener
Product Material:
Steel

B-LINE BCH32-PNA – Frequently Asked Questions

1) Will the B-Line BCH32-PNA J-hook mount straight into a concrete deck?
Yes. The BCH32-PNA ships with a 1-1/4 inch drive pin already installed, and the pin is rated for concrete up to 4000 psi. You drive it with a powder-actuated or gas tool, no drilling, no anchor to set separately. For anything above 4000 psi concrete, use a different anchoring method.
2) How much cable will a 2 inch B-Line BCH32 J-hook actually hold?
The hook opening is 2 inches and the assembly is rated at 30 lb load capacity. That 30 lb figure is the limit that matters on a run, not the bundle diameter, so on long horizontal pathways with heavy multi-pair copper you hit the weight ceiling before you fill the hook. Size your support spacing to keep each hook under 30 lb.
3) Can I use the BCH32-PNA drive pin hook on a steel beam or wood joist instead of concrete?
The pin supplied on the BCH32-PNA is rated for concrete up to 4000 psi. That is the base material the fastener is specified for. For steel bar joist or wood framing, choose the beam clamp, flange, or screw-mount version of the B-Line J-hook family instead of the drive pin version.
4) Is the BCH32-PNA a single hook or a multi-hook assembly?
One J-hook per fastener. If you are separating services (voice, data, fiber, coax) you will need a separate hook or a multi-tier assembly rather than stacking them all into this single 2 inch cradle.
5) What are the overall dimensions of the BCH32-PNA J-hook for clearance above a ceiling grid?
The assembled fastener measures 4.31 in height, 2.38 in length/depth and 1.62 in width, and weighs .29 lb. That footprint is what you need to clear between the deck and the top of the ceiling grid or ductwork when you lay out the pathway.
6) Do I need to order anchors or screws separately for this B-Line cable hook?
No separate anchor is needed. The 1-1/4 inch drive pin comes pre-installed on the hook, so the part arrives as one piece ready to fire. All you supply is the driving tool and the correct load for your tool and base material.
7) What material is the B-Line BCH32-PNA cable hook made of?
Steel, hook and pin fastener both. It is a low voltage and datacomm support fastener, so it is intended for communications cabling runs rather than for supporting conduit or electrical raceway.
