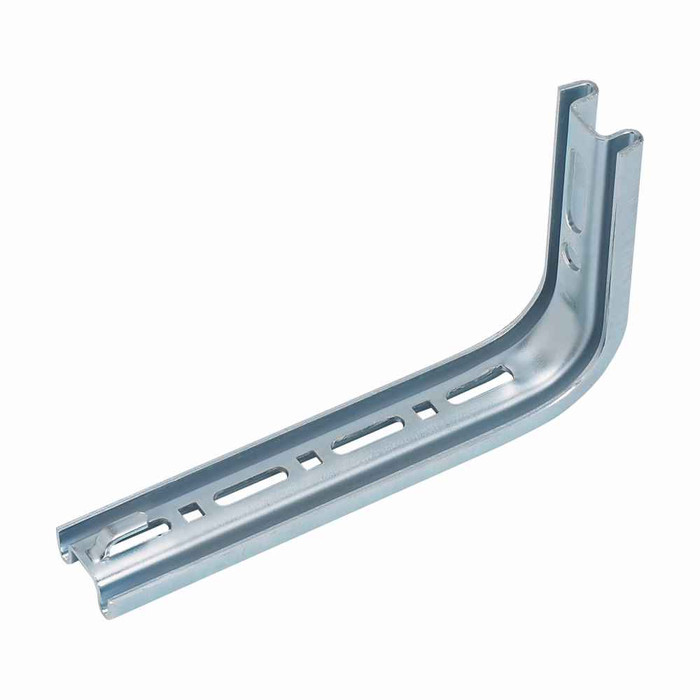

Eaton B-Line series Flextray wire basket tray, Steel, 20"L bracket
Manufacturer Resources
Product Specs
- Certifications:
- UL Classified
- Compliances:
- CSA
- Product Height:
- 7.78 in
- Product Length Depth:
- 20 in
- Product Weight:
- 2 lb
- Product Width:
- 1.63 in
- Department:
- Electrical
- Product Group:
- Mounting Hardware
- Product Subgroup:
- Brackets
- Product Type:
- 20" L bracket
- Product Details:
- 20" L bracket
- Product Material:
- Steel
B-LINE 20LBRKT – Frequently Asked Questions
1) What size cable tray will the B-Line 20LBRKT L bracket support?
The Eaton B-Line 20LBRKT is a 20 inch L bracket, so the 20 inch dimension is the arm that carries the Flextray wire basket run. That makes it the bracket to use under tray widths up to 20 inches. For a narrower run you'd step down to a shorter L bracket in the same series rather than overhang the arm.
2) Is the B-Line 20LBRKT Flextray bracket UL Classified and CSA compliant?
Yes. The 20LBRKT carries UL Classified certification and CSA compliance, which is what an institutional or government spec writer usually needs on record for cable tray support hardware in both US and Canadian installations.
3) What are the full dimensions and weight of the B-Line 20LBRKT bracket?
It measures 20 inches long, 7.78 inches high, and 1.63 inches wide, and weighs 2 pounds. The 7.78 inch height is what you need to check against your wall clearance when laying out a wall-mounted Flextray run, and the 1.63 inch width is the material profile you'll be fastening through.
4) What part number do I order for the 20 inch Flextray L bracket?
The manufacturer part number is 20LBRKT, from the Eaton B-Line Flextray line. That single part number covers the bracket; there are no finish or size options to specify with it.
5) Does the 20LBRKT come with the anchors or fasteners to mount it to the wall?
The 20LBRKT is supplied as the steel bracket itself. Wall anchors, strut hardware, and the fasteners that tie the wire basket tray down to the bracket arm are ordered separately and chosen to suit the substrate you're mounting into, whether that's concrete, block, or strut.
6) What is the B-Line 20LBRKT made of?
Steel. It's a steel L bracket built for the Eaton B-Line Flextray wire basket system, so it pairs with steel wire basket tray runs rather than being a plastic or composite support.
