B-Line BKBM8-094-360K Eaton se...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$85.71
$48.23

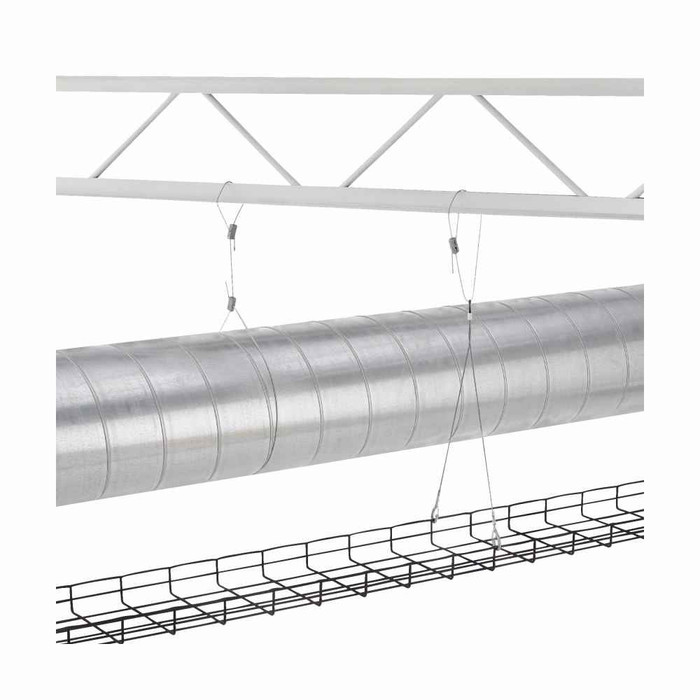

B-Line BKBM8-094-360K Eaton series hanging system, Install without drilling into existing structure, KwikWire accessory features, Assembly only, no more sawing, filing, fixing nuts, Bolt M6 thread termination, 3/32" wire max, 360" wire length

B-Line BKBM8-094-360K Eaton series hanging system, Install without drilling into existing structure, KwikWire accessory features, Assembly only, no more sawing, filing, fixing nuts, Bolt M6 thread termination, 3/32" wire max, 360" wire length

(No reviews yet) Write a Review

Model: BKBM8-094-360K
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$85.71
$48.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
B-Line BKB38-094-360K Eaton series hanging system, Install without drilling into existing structure, KwikWire accessory features, Assembly only, no more sawing, filing, fixing nuts, Bolt 3⁄8-16 thread termination, 3/32" wire max, 360" wire length

B-Line BKB38-094-360K Eaton series hanging system, Install without drilling into existing structure, KwikWire accessory features, Assembly only, no more sawing, filing, fixing nuts, Bolt 3⁄8-16 thread termination, 3/32" wire max, 360" wire length

Model: BLN-BKB38-094-360K

Eaton B-Line series hanging system, Install without drilling into existing structure, KwikWire accessory features, Assembly only, no more sawing, filing, fixing nuts, Bolt 3⁄8-16 thread termination,...

B-LINE

$91.27
$55.94
Eaton B-Line series hanging system, Install without drilling into existing structure, KwikWire accessory features, Assembly only, no more sawing, filing, fixing nuts, Bolt M6 thread termination, 3/32" wire max, 360" wire length

Manufacturer Resources

Product Specs

Application:
Install without drilling into existing structure
Certifications:
cULus Listed
Product Diameter:
.09375 in
Product Height:
360 in
Product Weight:
7.712 lb
Special Features:
Asembly only ,no more sawing, filing,fixing nuts
Wire Diameter Max:
.093 in
Wire Length:
360 in
Department:
Electrical
Product Group:
Fasteners
Product Subgroup:
Washers / Nuts / Bolts / Screws
Product Type:
Bolt M6 thread termination
Product Model:
KwikWire accessory features
Product Details:
Bolt M6 thread termination

B-LINE BKBM8-094-360K – Frequently Asked Questions

1) What does the M6 bolt termination on this KwikWire kit attach to?
The lower end is terminated with an M6 threaded bolt, so it lands on anything with an M6 tapped hole or an M6 clearance hole with a nut, which is how most European-spec luminaires, cable tray brackets and equipment housings are drilled. If the fixture you are hanging takes a 3/8-16 or 1/4-20 thread instead, this is the wrong termination for it.
2) Is this B-Line KwikWire assembly listed for electrical work?
It is cULus Listed, so it is recognized for both US and Canadian installations. That matters on inspected commercial jobs where suspended lighting and electrical support hardware has to be a listed component.
3) Do I have to drill the structure to install a KwikWire hanging system?
No drilling into the existing structure is required. The kit is built to hang from what is already overhead, which is why it gets used in tenant fit-outs, retrofits and leased space where a property manager will not authorize new holes in deck or steel.
4) Do I need to cut threaded rod or run nuts to hang a fixture with this kit?
No. This is an assembly-only method, so there is no sawing rod to length, no filing burrs off the cut end and no chasing lock nuts up a thread. You pull the cable through the gripper to the height you want and trim the tail, which is the reason crews use it for repetitive lighting drops.
