B-Line BKBM8-094-40 Eaton seri...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$60.26
$13.50
B-Line BKBM8-094-40 Eaton series hanging system, KwikWire accessory features, Assembly only, no more sawing, filing, fixing nuts, Bolt M6 thread termination, 3/32" wire max, 40" wire length

B-Line BKBM8-094-40 Eaton series hanging system, KwikWire accessory features, Assembly only, no more sawing, filing, fixing nuts, Bolt M6 thread termination, 3/32" wire max, 40" wire length

(No reviews yet) Write a Review

Model: BKBM8-094-40
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$60.26
$13.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series hanging system, KwikWire accessory features, Assembly only, no more sawing, filing, fixing nuts, Bolt M6 thread termination, 3/32" wire max, 40" wire length

Manufacturer Resources

Product Specs

Application:
Install without drilling into existing structure
Certifications:
cULus Listed
Product Diameter:
.09375 in
Product Height:
40 in
Product Weight:
1.616 lb
Special Features:
Asembly only ,no more sawing, filing,fixing nuts
Wire Diameter Max:
.093 in
Wire Length:
40 in
Department:
Electrical
Product Group:
Fasteners
Product Subgroup:
Washers / Nuts / Bolts / Screws
Product Type:
Bolt M6 thread termination
Product Model:
KwikWire accessory features
Product Details:
Bolt M6 thread termination

B-LINE BKBM8-094-40 – Frequently Asked Questions

1) What does the M6 bolt end on the B-Line KwikWire BKBM8-094-40 attach to?
The BKBM8-094-40 is a KwikWire hanging kit with a bolt M6 thread termination, so the fixture end lands on anything with an M6 threaded hole or an M6 clearance hole: light fixture housings, tray brackets, or equipment ears tapped for 6mm metric thread. There is no sawing, filing, or fixing nuts involved, it is an assembly-only termination.
2) How long is the wire on the BKBM8-094-40 and what diameter is it?
Wire length is 40 inches with a maximum wire diameter of .093 inch (3/32). That 40 inches is the usable drop, so for suspending a fixture more than about three feet below the structure you need a longer wire length in the same KwikWire family rather than splicing this one.

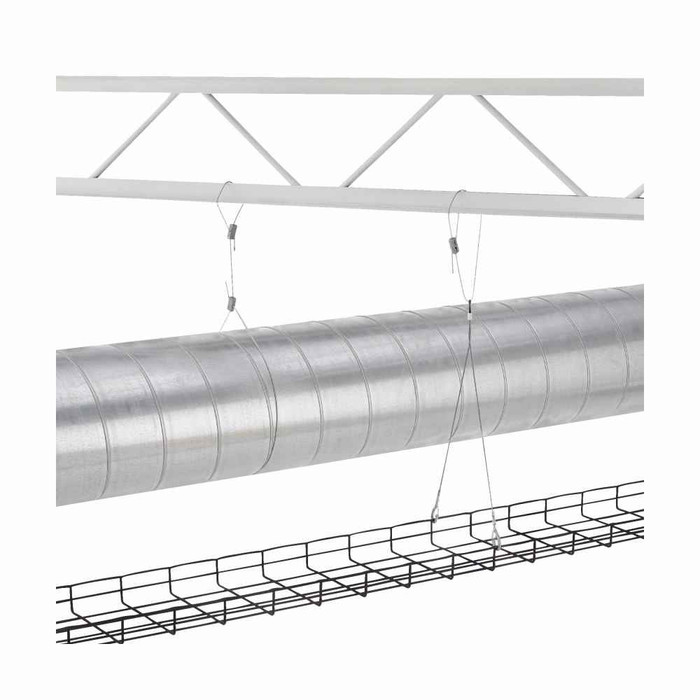

3) Can I use a KwikWire hanger instead of drilling anchors into the deck?
That is the point of it. The KwikWire system is made to install without drilling into the existing structure, so you hang off existing steel, bar joist, or purlins rather than shooting anchors into concrete deck. Good fit for tenant fit-outs and retrofits where you cannot disturb the slab.
4) Do I need to cut or thread the wire on site with the KwikWire bolt termination?
No cutting or threading. The wire comes pre-terminated at 40 inches with the M6 bolt fitting already assembled, so field work is assembly only, no sawing, filing, or fixing nuts. Excess wire is taken up at the gripper rather than trimmed to length before install.
5) What is the exact part number and shipping weight for ordering this KwikWire kit?
Order it as Eaton B-Line BKBM8-094-40. The kit weighs 1.616 lb, which matters when you are pricing a pallet of a few hundred for a warehouse relight.
