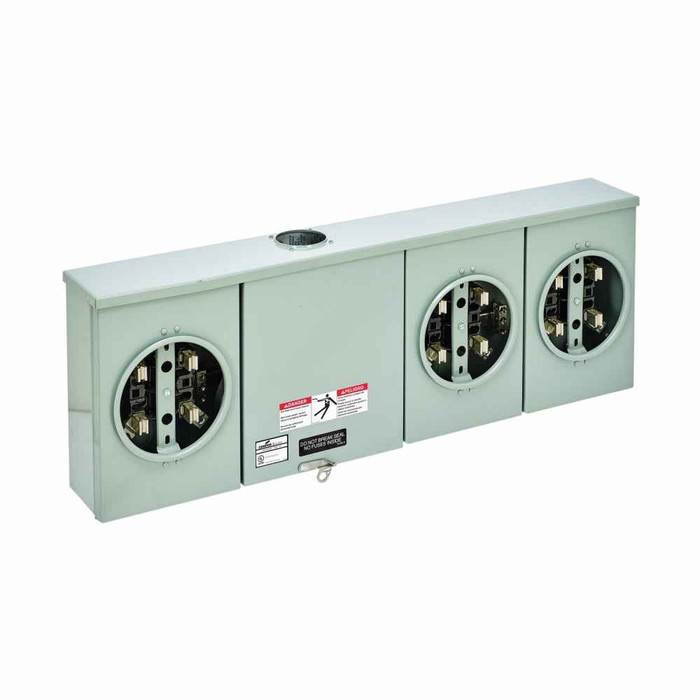

B-Line H014 Eaton series horiz...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$4,322.59
B-Line H014 Eaton series horizontal meter pack, 100 A, 225 A, None, Ring type, 3R, Overhead/underground, ANSI 61 gray paint, #6 - 250 MCM, #14 - 2/0, Galvanized steel, Surface mount, 4

B-Line H014 Eaton series horizontal meter pack, 100 A, 225 A, None, Ring type, 3R, Overhead/underground, ANSI 61 gray paint, #6 - 250 MCM, #14 - 2/0, Galvanized steel, Surface mount, 4

(No reviews yet) Write a Review

Model: H014
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,322.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series horizontal meter pack, 100 A, 225 A, None, Ring type, 3R, Overhead/underground, ANSI 61 gray paint, #6 - 250 MCM, #14 - 2/0, Galvanized steel, Surface mount, 4

Manufacturer Resources

Product Specs

Amperage Rating:
100A
Certifications:
UL
Cover Door Type:
Ring
Degree Of Protection:
3R
Feed Type:
Overhead/underground
Line Lug Size:
#6-250 MCM
Load Lug Size:
#14-2/0
Mounting Method:
Surface mount
Number Of Jaws:
4
Number Of Positions:
4
Number Of Wires:
3
Product Height:
12 in
Product Length Depth:
4.63 in
Product Weight:
34 lb
Product Width:
43 in
Department:
Electrical
Product Finish:
ANSI 61 gray paint
Product Material:
Galvanized steel

B-LINE H014 – Frequently Asked Questions

1) How many meter positions does the Eaton B-Line H014 meter pack have, and what amperage is each socket?
The H014 horizontal meter pack carries 4 meter positions, each rated 100 A. Each socket is a 4-jaw, 3-wire configuration, so it suits single-phase 120/240 V tenant metering on a four-unit building. If you need more than four tenants off one bus, you need a larger pack, not a second H014 fed from the same lugs.
2) Can the H014 meter pack be mounted outdoors on an exterior wall?
Yes. The H014 is built in a Type 3R enclosure, which is the rain-tight rating used for outdoor wall-mounted service equipment, and it is finished in ANSI 61 gray paint over galvanized steel. It is surface mount, so it lands flat on the wall rather than recessing into the framing.
3) What size service conductors will land in the line lugs of the B-Line H014 meter pack?
Line lugs take #6 through 250 MCM, so a typical 225 A aluminum or copper service entrance conductor lands directly without a reducer. On the load side, each position takes #14 through 2/0 for the tenant feeder.
4) Does the H014 meter pack have a meter bypass for hot socket changes?
No. The H014 is specified with no bypass, so power has to be dropped to pull a meter. If your utility requires a lever or horn bypass on multi-tenant sockets, this unit will not pass inspection and you need a bypass-equipped pack instead. Check the utility's approved meter equipment list before ordering.
5) Is the H014 a ring type or ringless meter socket?
Ring type. The cover on the H014 uses a sealing ring to retain the meter, which is the style many utilities specify for tenant metering. Utilities are generally strict about this, a ringless jurisdiction will reject a ring type socket, so confirm which your serving utility accepts before it goes on the wall.
6) Does the H014 meter pack work with an underground service lateral, or only overhead?
Either. The H014 is listed for overhead or underground feed, so the same unit works whether the service drop comes in from a weatherhead above or a lateral from below. Enclosure depth is 4.63 inches, which is what you have to work with for conductor bending room behind the cover.
7) How much wall space do I need for the B-Line H014 horizontal meter pack?
Plan for a horizontal run: the H014 measures 43 inches wide, 12 inches high, and 4.63 inches deep. That footprint is why it is called a horizontal pack, the four positions sit side by side rather than stacked. It weighs 34 pounds, so it is a one-person hang onto blocking or masonry anchors.
