B-Line Eaton series free standing enclosure accessories, 4X, Full and half panel, Panel mounting, Free-standing enclosure accessories, Panel
Model: BLN-AF7230P
Eaton B-Line series free standing enclosure accessories, NEMA 4X, Full and half panel, Panel mounting, Free-standing enclosure accessories, Panel
B-LINE
$2,383.24

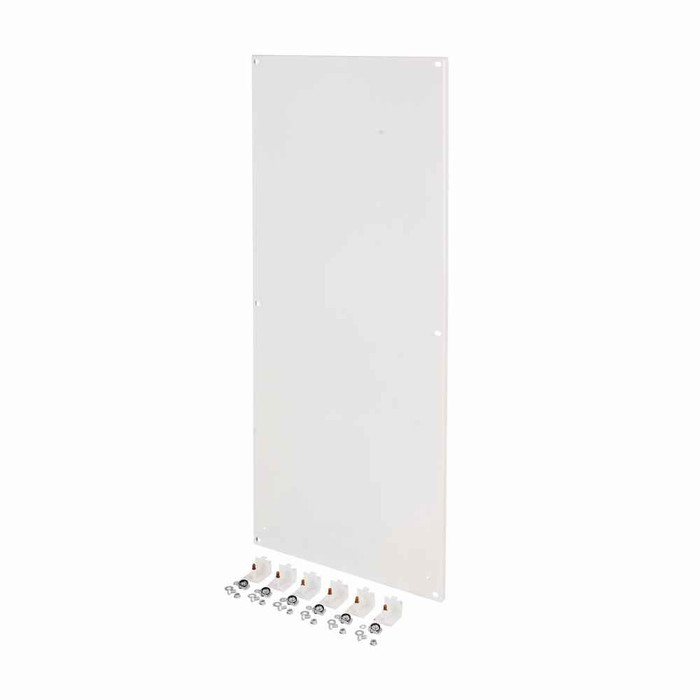

Eaton B-Line series mounting panels, NEMA 4X, Used with 90" X 48" enclosures, Free standing panel
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- NEMA 4X
- Product Height:
- 77.87 in
- Product Length Depth:
- 44 in
- Product Weight:
- 152.219 lb
- Product Width:
- 43.87 in
- Special Features:
- Used with 90" X 48" enclosures
- Department:
- Electrical
- Product Style:
- Free standing panel
B-LINE AF9048P – Frequently Asked Questions
1) Which enclosure size does the Eaton B-Line AF9048P mounting panel fit?
The AF9048P panel is sized for 90 x 48 inch Eaton B-Line free standing enclosures. The panel itself measures 77.87 inches high by 43.87 inches wide, so it sets inside the enclosure's usable back area rather than matching the enclosure's outside dimensions. If your cabinet is a different height or width, this is the wrong panel.
2) Can this B-Line panel be used in a washdown or outdoor NEMA 4X enclosure?
Yes. The AF9048P is a NEMA 4X rated mounting panel and is UL Listed, so it is intended for the corrosion resistant, hosedown type free standing enclosures used in food plants, wastewater, and outdoor installs. Mounting the panel does not change the enclosure's rating as long as you use the enclosure's factory panel mounting provisions and do not drill through the back or sides.
3) Is the mounting panel included with the enclosure, or do I order it separately?
Free standing NEMA 4X enclosures are commonly shipped without a subpanel, which is why the AF9048P is sold as its own item under part number AF9048P. If you are specifying a 90 x 48 inch free standing cabinet and need a back panel to lay out components on, it has to be on the order as a separate line.
4) How much usable mounting area does the AF9048P give me for laying out components?
You get a flat field roughly 77.87 inches tall by 43.87 inches wide to lay out DIN rail, breakers, contactors, and drives. Work your layout against those numbers, not the 90 x 48 inch enclosure size, since the panel is inset from the enclosure walls.
5) Is the AF9048P a door mount panel or a back panel?
It is a free standing panel style, meaning a full size back panel for a floor mount enclosure rather than a small swing out or door mounted plate. If you need to mount pilot devices or an HMI on the door, that is a separate door panel or kit, not this part.
