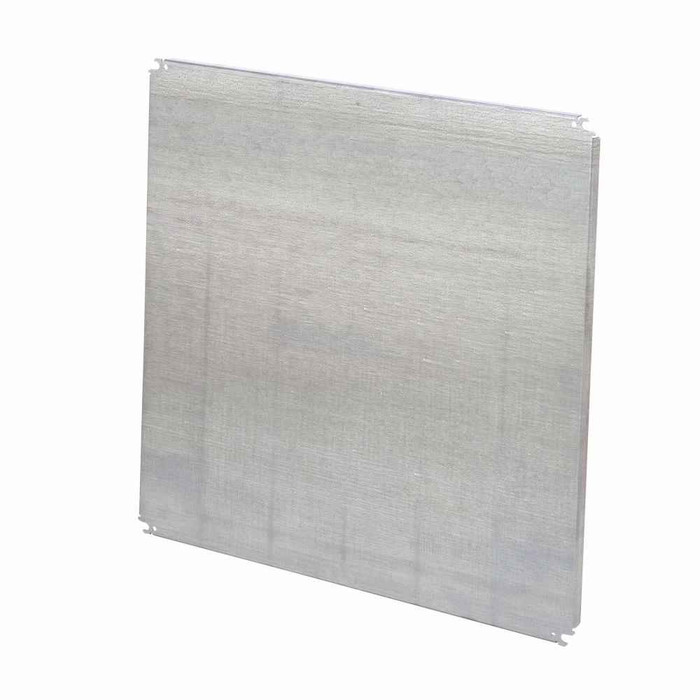

Eaton B-Line series mounting panels, Used with Premier Series enclosures, 36" X 36" panels
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Product Height:
- 34 in
- Product Length Depth:
- 34 in
- Product Weight:
- 32.94 lb
- Product Width:
- .75 in
- Special Features:
- Used with Premier Series enclosures
- Department:
- Electrical
- Product Group:
- Enclosures & Boxes
- Product Subgroup:
- Locks & Handles
- Product Type:
- Type 12 handle CCW lock
- Product Details:
- Type 12 handle CCW lock
B-LINE 3636P – Frequently Asked Questions
1) What size enclosure does the B-Line 3636P mounting panel fit?
The 3636P is the mounting panel sized for 36 x 36 inch Eaton B-Line Premier Series enclosures. The panel itself measures 34 x 34 x .75 inches, which is the usual undersize that lets it sit on the enclosure's internal mounting studs rather than touching the walls. If your enclosure body is a different back size, you need the panel cut for that size instead.
2) How much does a 36 x 36 B-Line mounting panel weigh for a one-man install?
32.94 lb. That is heavy enough that most installers set it with two people or hang it on the top studs first and then start the lower fasteners, especially in a wall-mounted Premier Series box where you are working overhead.
3) Why is the 3636P panel 34 inches square instead of a full 36 inches?
Mounting panels always run smaller than the nominal enclosure size so they clear the enclosure's side walls and seat on the welded mounting studs inside. On the 3636P that works out to 34 x 34 inches for a 36 x 36 Premier Series box. Do not order a 36 inch plate expecting it to drop into a 36 inch enclosure.
4) Can I drill and tap the B-Line 3636P panel for my own component layout?
That is what it is for. The 3636P ships as a blank 34 x 34 inch plate, .75 inches through the assembly dimension, so the panel shop lays out and drills its own hole pattern for rails, terminal strips, and gear. There is no factory hole pattern to work around.
