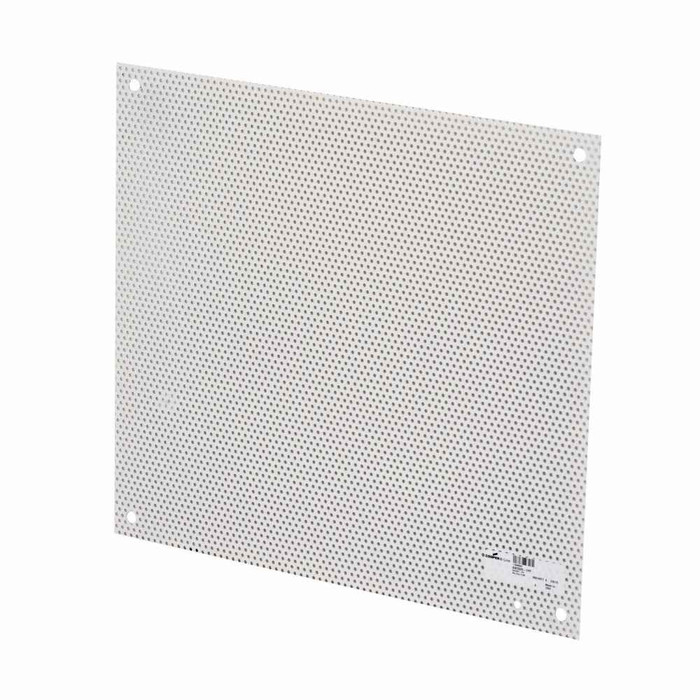

B-Line N108PP Eaton series panels and panel accessories, NEMA 1, White powder coated, Enclosure used to mount light-weight components, Steel, Fits enclosures 10" X 8", Panels and panel accessories, Small enclosure flat perforated panel

The N108PP is sized for 10 inch by 8 inch small enclosures. The panel itself measures 10 in height by 8 in width, so if your box's interior mounting dimension is a 10 x 8 pattern this drops straight in. On a larger or smaller enclosure you need the panel matched to that box size instead.

It's intended for light-weight components. Eaton rates the N108PP for mounting light-weight components inside a small enclosure, and it is a flat perforated steel panel weighing .819 lb, so terminal blocks, small relays, DIN rail, and control devices are the right load. For a heavy contactor or a transformer, use a solid heavy-gauge back panel rated for that weight rather than a perforated light-duty panel.

No. It is a NEMA 1 rated accessory, which is indoor, general purpose only, with no protection against water or dust ingress. Put it in an indoor control cabinet. For a wet, outdoor, or washdown location you want the panel matched to a NEMA 3R, 4, or 4X enclosure line.

The perforations give you a repeating hole pattern to pick up screws, standoffs, or DIN rail clips anywhere on the face, so you are not drilling and tapping a blank plate on the bench. That flexibility is the trade-off for load capacity: the N108PP is a flat perforated steel panel meant for light-weight components. If your layout is fixed and the devices are heavy, a solid drilled panel is the better choice.

The N108PP is the perforated steel panel itself. Small enclosures normally have welded studs or tapped bosses in the back of the box that the panel screws onto, so confirm what your enclosure provides and order the panel mounting screws or standoffs for that box separately if it does not come with them.

White powder coated steel. That is the standard interior panel finish across Eaton B-Line small enclosure accessories, so it will read the same as other white powder coated panels already in your cabinets. The coating also means you do not have bare steel sitting in the box.

Just .819 lb. It is a single light steel plate, so a tech can carry a handful of them to a job, and it adds almost nothing to the weight of a wall-mounted enclosure.
