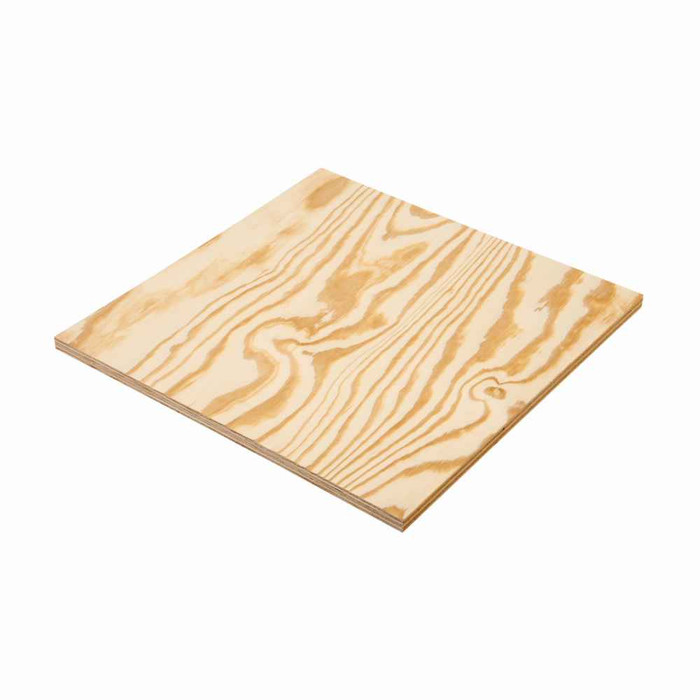

Eaton B-Line series panels and panel accessories, White powder coated, Wood back board, Type 1/type 3R
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Finish Color:
- White powder coated
- Product Category:
- Panels & panel accessories
- Product Height:
- 36 in
- Product Length Depth:
- 36 in
- Product Weight:
- 10.25 lb
- Product Width:
- 24 in
- Department:
- Electrical
- Product Material:
- Wood
B-LINE 3624WB – Frequently Asked Questions
1) What size enclosure does the B-Line 3624WB wood back board fit?
The B-Line 3624WB is a 36 by 24 inch wood back board, so it is sized for an enclosure with a 36 inch high by 24 inch wide interior mounting area. Measure the back panel space inside your box before ordering, since the board is cut to that nominal panel footprint and cannot be enlarged.
2) Is a wood back board or a steel back panel the right choice for my electrical enclosure?
Wood, like the B-Line 3624WB, is the choice when you are mounting terminal blocks, low voltage gear, or telecom and structured wiring components and want a non-conductive surface you can screw into anywhere. A steel panel is what you want when you need a bonded, grounded mounting surface or you are hanging heavy gear. The 3624WB weighs 10.25 lb, so it handles ordinary panel-mounted devices without loading the enclosure.
3) What does the white powder coated finish on the B-Line wood back board do for me?
The 3624WB comes white powder coated, which gives a sealed, light-reflective surface inside the enclosure. That makes wire labels and terminal markings far easier to read when a tech is working in the box with a flashlight, and it keeps the wood face from absorbing dirt and moisture.
4) Does the 3624WB back board come with mounting hardware?
The 3624WB is supplied as the wood back board itself. Mounting hardware is normally part of the enclosure's back panel studs or brackets, so plan on using the mounting provisions already in your Type 1 or Type 3R box.
