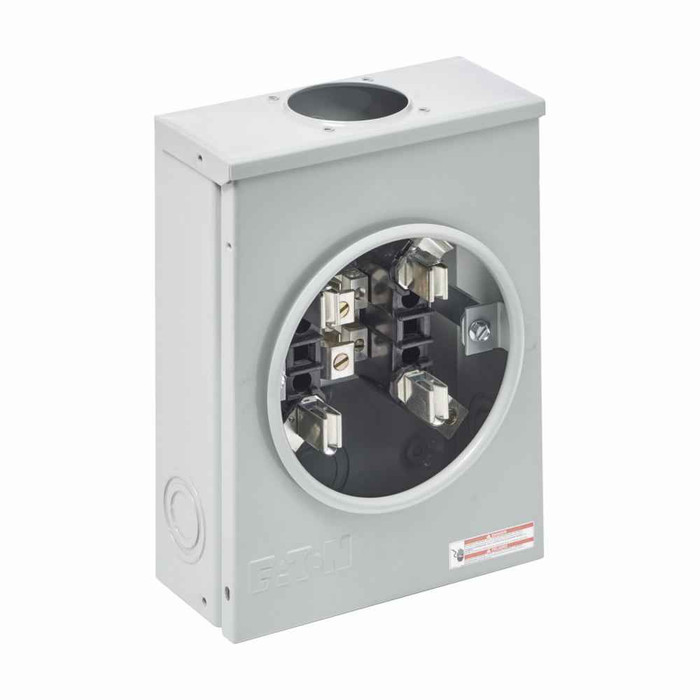

Eaton B-Line series single meter sockets, KOs top provision, 200 A, Overhead, 4 jaws, Ring type, 3, Steel, ANSI 61 paint, Front, 1 pole, 3 wires, #6 - 250MCM line lug size, #6 - 250MCM load lug size, None
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200A
- Bypass:
- None
- Certifications:
- UL Listed
- Cover Door Type:
- Ring
- Degree Of Protection:
- 3
- Feed Type:
- Overhead
- Finish:
- ANSI 61 paint
- Line Lug Size:
- #6-250 MCM
- Load Lug Size:
- #6-250 MCM
- Material:
- Steel
- Mounting Method:
- Front
- Number Of Jaws:
- 4
- Number Of Poles:
- 1
- Number Of Wires:
- 3
- Product Height:
- 15 in
- Product Length Depth:
- 6 in
- Product Weight:
- 15 lb
- Product Width:
- 8 in
- Special Features:
- KOs top provision
