B-Line Eaton series strut back...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$7,938.96
$7,888.96

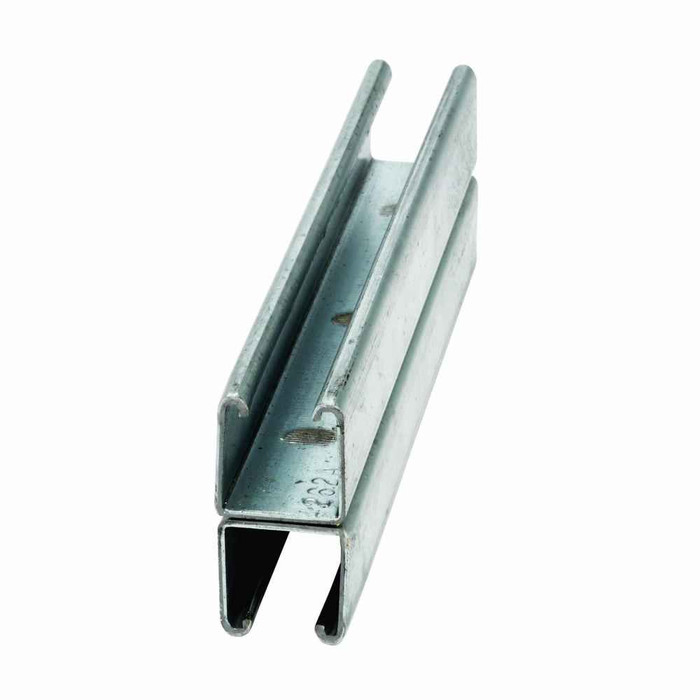

B-Line Eaton series strut back-to-back welded channel, 1.62" channel height, 240" channel length, 1.62" channel width, 12 Gauge steel, B22 channel typ

B-Line Eaton series strut back-to-back welded channel, 1.62" channel height, 240" channel length, 1.62" channel width, 12 Gauge steel, B22 channel typ

(No reviews yet) Write a Review

Model: B22A-240GLV
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7,938.96
$7,888.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut back-to-back welded channel, 1.62" channel height, 240" channel length, 1.62" channel width, 12 Gauge steel, B22 channel type, Pre-galvanized

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Channel Type:
B22
Material Gauge:
12 Gauge
Product Height:
1.62 in
Product Length Depth:
240 in
Product Weight:
76.4 lb
Product Width:
1.62 in
Department:
Electrical
Product Finish:
Pre-galvanized
Product Material:
Steel
Product Length:
240 in

B-LINE B22A-240GLV – Frequently Asked Questions

1) Can pre-galvanized strut channel be used outdoors or in a wet area?
Pre-galvanized is a mill-galvanized coating applied to the steel before forming, so the cut ends and the welds are bare. That is fine for indoor, dry, and normally protected spaces such as mechanical rooms, plenums, and covered parking. For direct weather exposure, wash-down areas, or corrosive process environments, specify a hot-dip galvanized or stainless channel instead. If you cut this stick, treat the cut end with a cold galvanizing compound.
2) Will standard 1-5/8 inch strut nuts and fittings fit this B-Line B22 channel?
Yes. B22 is built from two 1-5/8 inch profile channels welded back to back, and it carries the same 1.62 inch slot opening front and back, so standard 1-5/8 inch strut nuts, spring nuts, clamps, and fittings engage it normally. The difference is you have two usable slot faces on the same piece rather than one.
3) What is the exact part number to order for 20 foot back-to-back B-Line strut?
The Eaton B-Line part number is B22A-240GLV. Read it as B22 channel type, A for the welded back-to-back assembly, 240 for the 240 inch length, and GLV for the pre-galvanized finish.
4) Does B22 strut channel come with mounting hardware or nuts?
No. This is bare channel only, a 240 inch stick of 12 gauge steel. Strut nuts, spring nuts, bolts, post bases, end caps, closure strips, and any fittings or brackets are ordered separately. Plan the fitting count before ordering so the rack goes up in one trip.
