B-Line Eaton series strut chan...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,743.16

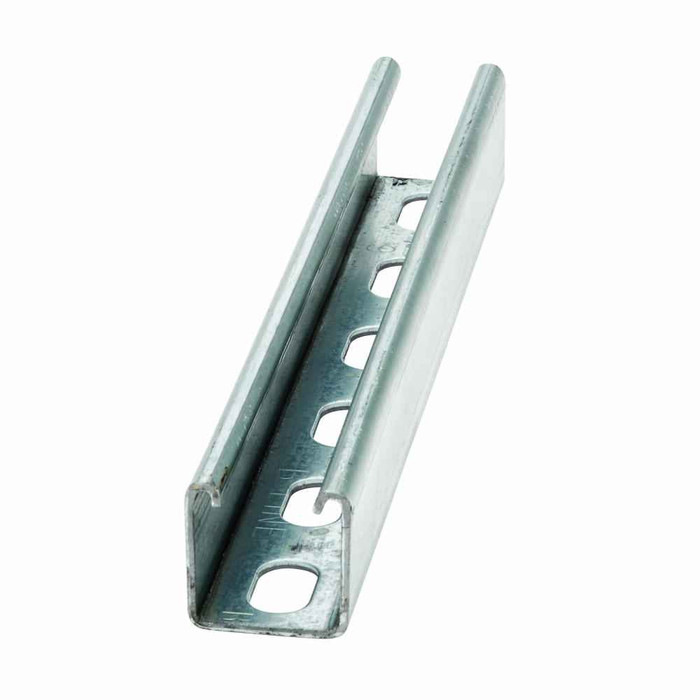

B-Line Eaton series strut channel, 1.62" channel height, 120" channel length, 1.62" channel width, Steel, 12 Gauge, SH hole pattern, B22 channel, DURA

B-Line Eaton series strut channel, 1.62" channel height, 120" channel length, 1.62" channel width, Steel, 12 Gauge, SH hole pattern, B22 channel, DURA

(No reviews yet) Write a Review

Model: B22SH-120GRN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,743.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut channel, 1.62" channel height, 120" channel length, 1.62" channel width, Steel, 12 Gauge, SH hole pattern, B22 channel, DURA GREEN

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Channel Type:
B22
Hole Pattern:
SH
Material Gauge:
12 Gauge
Product Height:
1.62 in
Product Length Depth:
120 in
Product Weight:
18.2 lb
Product Width:
1.62 in
Department:
Electrical
Product Finish:
DURA GREEN
Product Material:
Steel

B-LINE B22SH-120GRN – Frequently Asked Questions

1) What size is B-Line B22 strut channel and will it take standard 1-5/8 inch strut fittings?
B22 channel measures 1.62 inches wide by 1.62 inches high, which is the standard 1-5/8 inch strut profile. Nuts, clamps, brackets and fittings built for 1-5/8 inch channel seat in the open slot of B22 the same way they do on any other 1-5/8 square channel.
2) What does the SH hole pattern mean on B-Line B22SH-120GRN strut?
SH is the slotted-hole back pattern, so the channel arrives with slots punched along the closed back rather than a solid back. That lets you bolt the strut straight to a wall, deck or beam anywhere along its run and shift the fastener a little to hit structure, instead of drilling the channel on site.
3) What is DURA GREEN finish on B-Line strut and where can I use it?
DURA GREEN is Eaton B-Line's green painted finish on steel channel. It is a coated interior-duty finish, not galvanized, so it suits dry indoor runs, mechanical rooms and plant interiors. For wet, washdown or outdoor exposure, order the same B22 profile in a hot dip galvanized or stainless version instead of the painted one.
4) Can I cut B-Line B22 strut to length on site?
Yes. The 120 inch stick is meant to be field cut with a bandsaw, chop saw with a metal blade or portaband. Because the finish is paint on steel rather than a hot dipped coating, touch up the cut ends with a zinc-rich or matching paint so the bare edge does not start rusting in a damp space.
