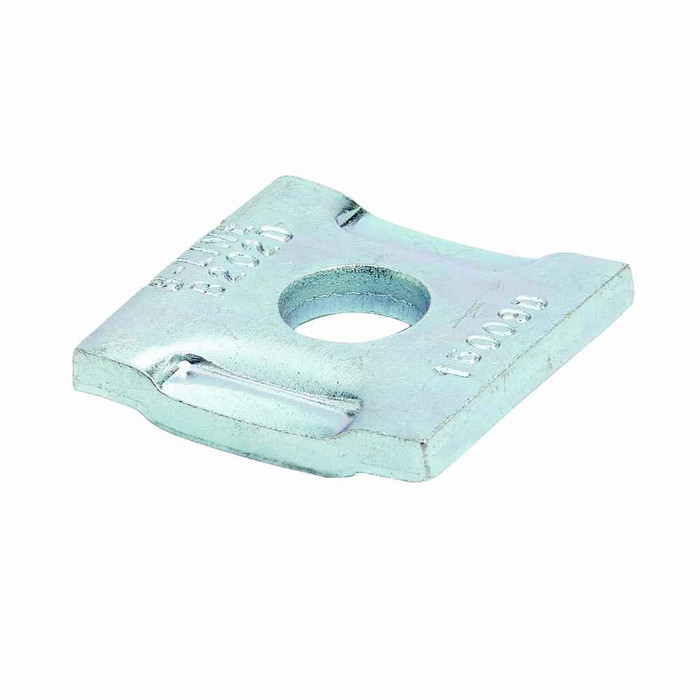

Eaton B-Line series strut fittings and accessories, 1.62" Height, 1.62" Length, 1.62" Width, .17lbs, Steel, No twisr square washer, Hole size 9/16 in diameter | Bolt size 1/2 in, Electro-plated
Manufacturer Resources
Product Specs
- Bolt Thread Rod Size:
- 1/2"
- Certifications:
- Not Applicable
- Product Height:
- 1.62 in
- Product Length Depth:
- 1.62 in
- Product Weight:
- .17 lb
- Product Width:
- 1.62 in
- Special Features:
- Hole size 9/16 in diameter
- Department:
- Electrical
- Product Group:
- Fasteners
- Product Subgroup:
- Washers / Nuts / Bolts / Screws
- Product Type:
- No twist square washer
- Product Finish:
- Electro-plated
- Product Details:
- No twist square washer
- Product Material:
- Steel
B-LINE B202DZN – Frequently Asked Questions
1) How big is the B202DZN washer, and will it span a standard strut channel opening?
It measures 1.62 x 1.62 x 1.62 inches and weighs .17 lb. That square footprint is wider than the open face of 1-5/8 inch strut, which is what keeps it from rotating into the channel when you tighten the nut.
2) Why use a no-twist square washer instead of a plain round flat washer on strut?
A round washer spins with the nut and can drop into the channel slot while you are tightening. The B202DZN is square, so it seats across the strut lips and stays put, holding the bolt square to the channel. On a beam clamp or hanger rod connection where you are working overhead one-handed, that is the difference between a clean pull-up and a dropped part.
3) Is the B202DZN washer suitable for damp or exterior locations?
It is steel with an electro-plated zinc finish, which handles dry indoor and normally sheltered mechanical and electrical rooms. For sustained outdoor exposure, washdown, or corrosive atmospheres, specify a hot dip galvanized or stainless square washer instead.
4) Does the B202DZN come with a nut or bolt, or do I order those separately?
The B202DZN is the square washer only. You supply the 1/2 inch bolt or threaded rod, and the strut nut or hex nut to go with it. Size all of that at 1/2 inch to match the washer's 9/16 inch hole.
5) What is the manufacturer part number for this Eaton B-Line square washer?
Order it as B202DZN, part of the Eaton B-Line strut fittings and accessories line. The DZN suffix corresponds to the electro-plated zinc finish.
